One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the ADuM5028, Low Emission, Isolated, DC-to-DC Converter
FEATURES
Signal and power isolated
ADuM5028
integrated isolated dc-to-dc converter
2-layer PCB with low radiated emissions; passes EN55022
Class B (certification available)
On-board LDO for 6 V to 9 V supply, providing 5 V to the
ADuM5028
V
pin
DDP
5 V input and 5 V or 3.3 V output operation
Screw terminal connectors for the following
6 V to 9 V LDO power supply
5 V direct power supply
Off board PDIS control
Isolated output supply
EVALUATION KIT CONTENTS
EVAL-ADuM5028EBZ evaluation board
ADuM5028-5BRIZ
DOCUMENTS NEEDED
ADuM5028
data sheet
GENERAL DESCRIPTION
The EVAL-ADUM5028EBZ allows the user to evaluate the
ADuM5028
isolated power solution. The
the need to design and build an isolated dc-to-dc converter in
60 mA applications. The iCoupler® chip scale transformer
technology is used for the inductive component of the dc-to-dc
converter. The result is a small form factor, isolated solution.
Based on the Analog Devices, Inc., iCoupler technology, the
ADuM5028
dc-to-dc converter provides regulated, isolated
power that is well below CISPR22 Class B limits when at full
load on a 2-layer printed circuit board (PCB) with ferrites.
Available supply voltages and the associated output current
levels are shown in Table 1.
Full specifications of the
ADuM5028
ADuM5028
data sheets available from Analog Devices, and
must be consulted in conjunction with this user guide when
using the evaluation board.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
with isoPower
ADuM5028
eliminates
can be found in the
Rev. A | Page 1 of 8
EVAL-ADuM5028EBZ

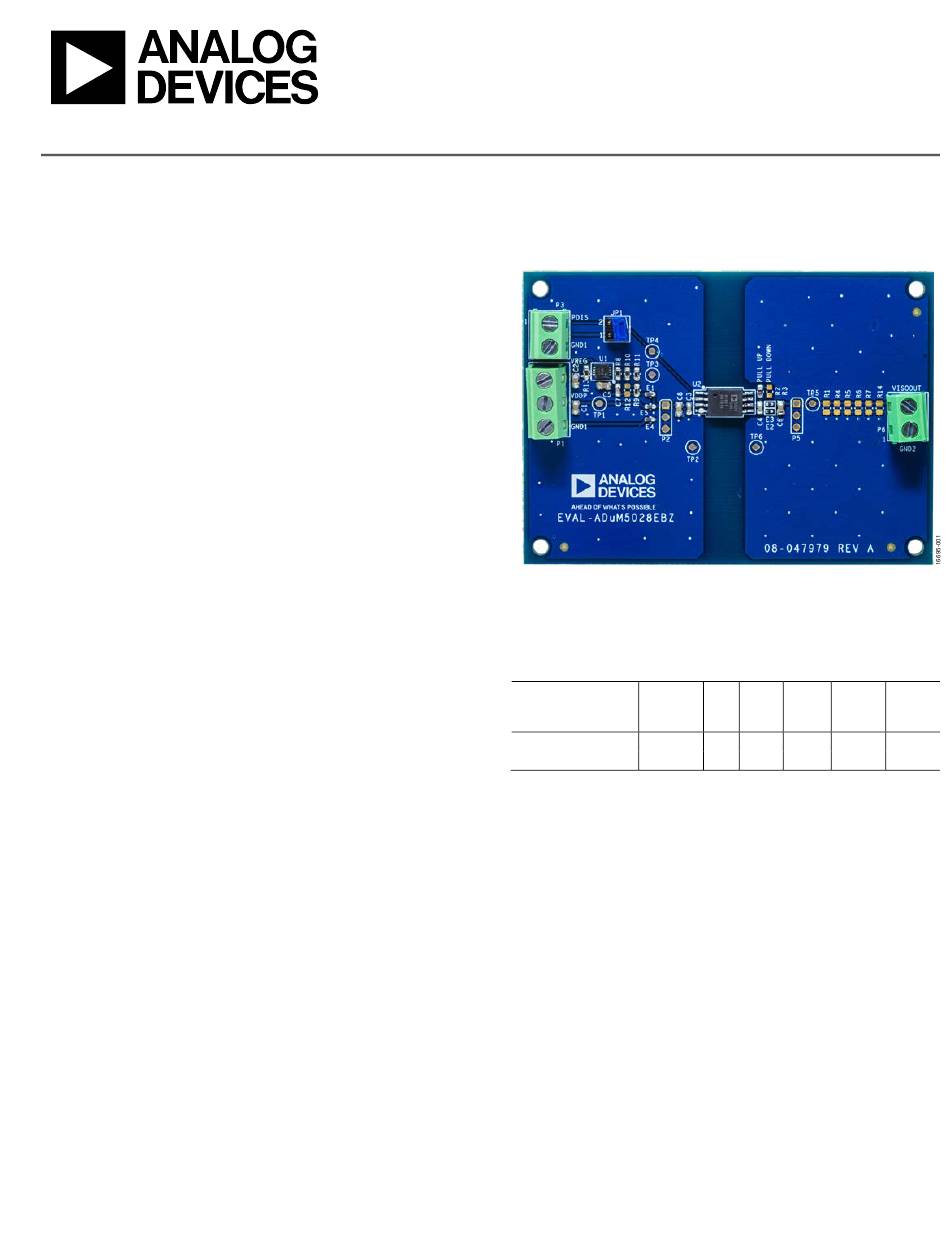

EVALUATION BOARD PHOTOGRAPH
Table 1.
ADuM5028
Output Current Levels
Isolation
Voltage
Model
(kV rms)
ADuM5028-5BRIZ
3
ADuM5028-5BRIZ
3
User Guide
UG-1263
Figure 1.
85°C
105°C
V
V
I
I
IN
OUT
OUT
OUT
(V)
(V)
(mA)
(mA)
5
5
60
40
5
3.3
60
40
125°C
I
OUT
(mA)
20
20
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-ADuM5028EBZ
Summary of Contents for Analog Devices EVAL-ADuM5028EBZ
-
Page 1: Features
EVAL-ADuM5028EBZ evaluation board ADuM5028-5BRIZ Figure 1. DOCUMENTS NEEDED ADuM5028 data sheet GENERAL DESCRIPTION Table 1. ADuM5028 Output Current Levels The EVAL-ADUM5028EBZ allows the user to evaluate the Isolation 85°C 105°C 125°C Voltage ADuM5028 isolated power solution. The ADuM5028 eliminates Model... -
Page 2: Table Of Contents
UG-1263 EVAL-ADuM5028EBZ User Guide TABLE OF CONTENTS Features ....................1 PCB Layout Recomendations ............3 Evaluation Kit Contents ..............1 EN55022 Radiated Emissions Test Results ........4 Documents Needed ................1 Evaluation Board Schematic and Artwork ........5 Evaluation Board Photograph ............1 Ordering Information ...............7... -
Page 3: Evaluation Board Hardware
EVAL-ADuM5028EBZ User Guide UG-1263 EVALUATION BOARD HARDWARE USING THE EVALUATION BOARD Table 2. Surface-Mount Ferrite Beads Figure 1 shows the EVAL-ADuM5028EBZ evaluation board. Manufacturer Part No. ADuM5028 sample device can be powered directly or Taiyo Yuden BKH1005LM182-T through the on-board low dropout regulator (LDO). Either... -
Page 4: En55022 Radiated Emissions Test Results
The EVAL-ADuM5028EBZ evaluation board is tested and certified to pass the EN55022 Class B standard. EN55022 certification documents for the EVAL-ADuM5028EBZ evaluation board are available upon request from Analog Devices. Table 3 provides a summary of the results. All EN55022 radiated emissions EN55022 CLASS A... -
Page 5: Evaluation Board Schematic And Artwork
EVAL-ADuM5028EBZ User Guide UG-1263 EVALUATION BOARD SCHEMATIC AND ARTWORK Figure 5. EVAL-ADuM5028EBZ Evaluation Board Schematic Rev. A | Page 5 of 8... - Page 6 UG-1263 EVAL-ADuM5028EBZ User Guide Figure 6. EVAL-ADUM5028EBZ Evaluation Board Top Layer and Silkscreen Figure 7. EVAL-ADuM5028EBZ Evaluation Board Bottom Layer and Silkscreen Rev. A | Page 6 of 8...
-
Page 7: Ordering Information
EVAL-ADuM5028EBZ User Guide UG-1263 ORDERING INFORMATION BILL OF MATERIALS Table 4. Reference Designator Description Supplier Part No. ADuM5028 low emission isolated, dc-to-dc converter Analog Devices ADuM5028-5BRIZ ADP7104 20 V, 500 mA, low noise, complimentary metal oxide Analog Devices ADP7104ACPZ semiconductor (CMOS) LDO C1, C2, C5, C6, C8 Capacitors, X7R, 10 μF, 0805... - Page 8 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
