CONNECT THE DEVELOPMENT SYSTEM

To connect the development system, take the following steps:
1. Ensure proper orientation and insert an
Note that Pin 1 of the device is indicated by a dot in the
corner. The dot on the device must be oriented with the
dot on the socket, as shown in Figure 1.

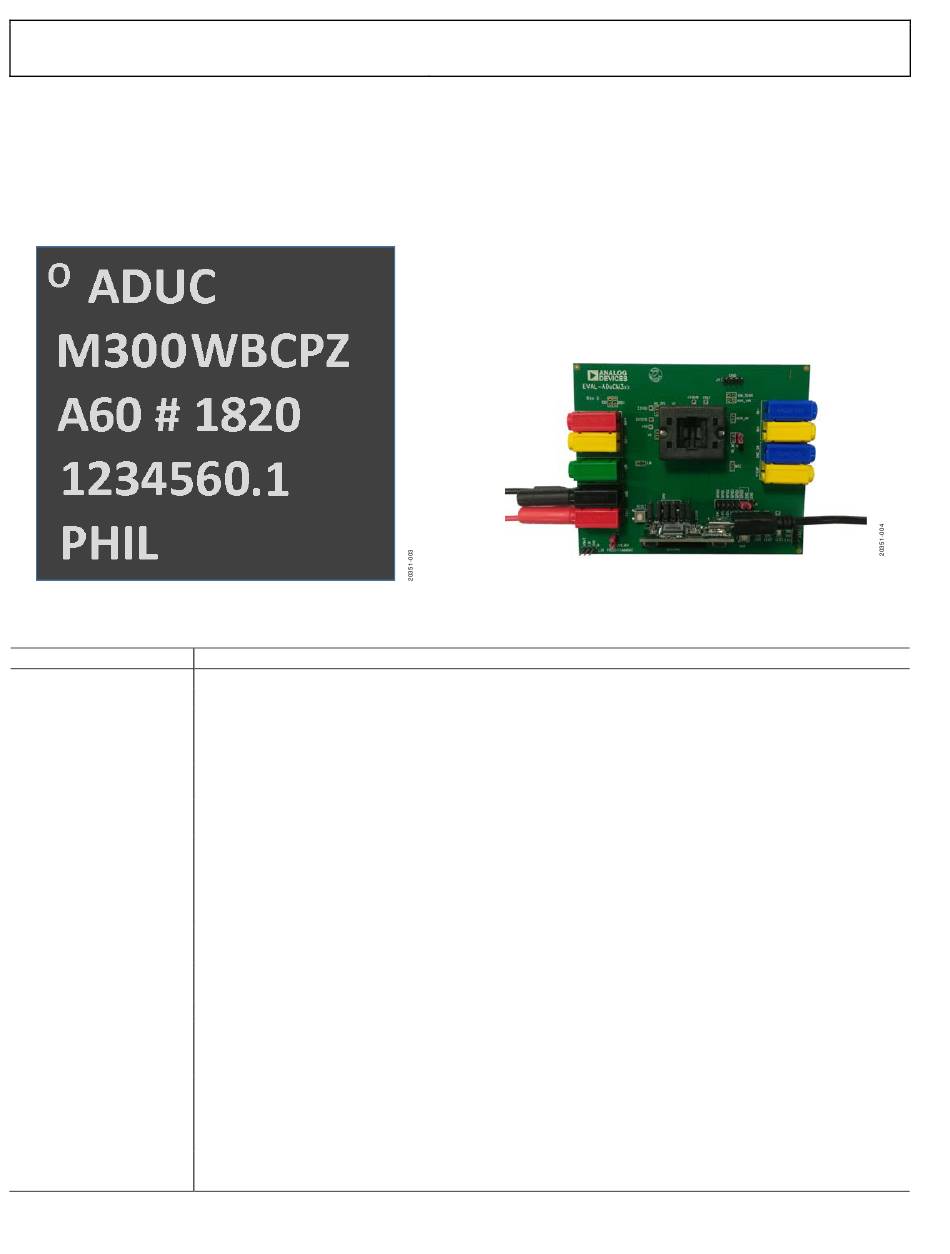

Figure 3. ADuCM300
Table 1. Jumper Functionality
Jumper
J4 (GPIO0)
J4 (GPIO1, GPIO2, GPIO3)
J4 (GPIO4)
J4 (GPIO5)
VBAT_3V3_REG
LIN
IDD, IDD1
VB
AUX_VIN
VIN_SENS
IIN
IIN_MC
AUX_IIN
NTC
J1
J2
J3
J4
J8
J11
ADuCM300 device.
Device Orientation
Functionality
This jumper connects Push-Button 1 to GPIO0 of the device.
These jumpers connect the LEDs to GPIO1, GPIO2 and GPIO3 of the device.
This jumper connects Push-Button 2 to GPIO4 of the device.
This jumper ties the GPIO5 pin of the device to GND. This jumper must be connected when programming the device
or when accessing via serial wire debug (SWD).
This jumper enables the 3.3 V regulator on the underside of the printed circuit board (PCB) and powers the LEDs or
an additional 3.3 V source.
Not inserted, connected via and 0R link. This jumper can disconnect the LIN terminal (green banana socket) from the
device when the 0R link is removed.
Not inserted, connected via an 0R link. This jumper allows the insertion of an ammeter in series with the supply
voltage through the I +/I sockets for current measurement when the 0R link is removed.
DD DD
Not inserted, connected via an 0R link. This jumper allows the supply voltage to disconnect from the VBAT input
when the 0R link is removed.
Not inserted, the AIN6 and AIN7 pins are connected to GND via the 0R link.
Not inserted, this jumper allows to connect a sensor to the AIN6 and AIN7 inputs of the device when the 0R link
connecting the AIN6 and AIN7 inputs to GND are removed.
This jumper shorts the inputs of the AIN0 and AIN1 pins.
Not inserted, allows to connect to signal at the AIN0 and AIN1 pins.
Not inserted, the AIN2 and AIN3 pins are connected to GND via the 0R link.
Not inserted, this jumper allows an external temperature device to be connected between the AIN5 and GND_SW
pins of the device.
J1 is the JTAG programming interface. Allowing to use a JTAG with SWD capability.
J2 is the SWD programming interface. Check orientation with Figure 4.
J3 allows for GPIO1 and GPIO4 to be used as universal asynchronous receiver/transmitter (UART) connection
operating the device local interconnect network (LIN) logic in UART mode.
J4 is a general-purpose input/output (GPIO) header.
J8 is a header for programming via LIN using the USB-I2C/LIN-CONVZ dongle.
Ground header.
EVAL-ADUCM300QSPZ
2. Connect the debugger/programmer, noting the proper
orientation, as shown in Figure 4.
3. Connect the board supply voltage (12 V dc) between the
VBAT and GND banana sockets.
4. Ensure that the board jumpers are in position, as shown in
Figure 1.
5. Ensure that the GPIO5 jumper is in place (beside the LIN
jumper). The GPIO5 jumper is used by the on-board
kernel to determine program flow after a reset. See the
ADuCM300 Hardware Reference Manual
6. Press the RESET button.
Figure 4. Mini Link Debugger/Programmer Connection
Rev. 0 | Page 4 of 6
User Guide
for full details.
