AD9161/AD9162/AD9163/AD9164
USING THE ADS7-V2EBZ

CONFIGURE SPECTRUM ANALYZER

Configure the spectrum analyzer as follows:
•
Start frequency = 50 MHz.
•
Stop frequency = 5 GHz.
•
Resolution bandwidth = 300 kHz.
•
Use average/rms detector setting.
•
Choose input attenuation as 6 dB. This value can be
adjusted later if indications are that the analyzer is causing
degradations (warnings on the analyzer itself, or third-
order products appearing on the output spectrum).
User Guide
TO PLAY A PATTERN TO THE EVALUATION BOARD

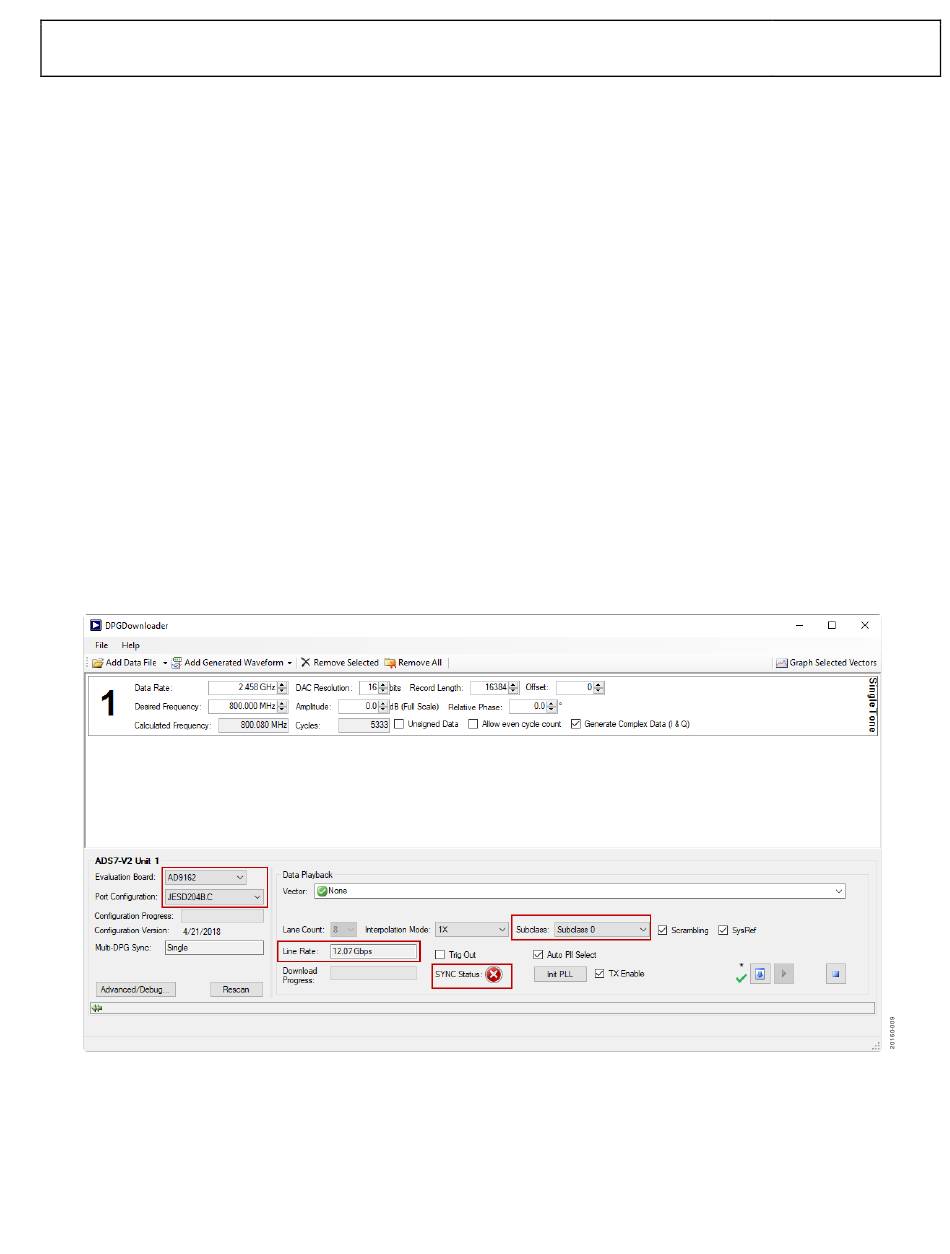

Figure 9. DPGDownloader Configuration for the AD9161, AD9162, AD9163, and
LOAD AND PLAY PATTERN TO THE
Complete the following steps to configure the
board and load a single tone at 800 MHz to the on-board
FPGA:
1. Configure the hardware according to the instructions
provided in the Hardware Setup section.
2. To load and play the pattern to the ADS7-V2EBZ, open the
DPGDownloader from Start > Programs > Analog
Devices > DPG > DPGDownloader.
3. Ensure that the program detects the AD9161, AD9162,
AD9163, or
Evaluation Board dropdown list. For this evaluation
board, JESD204B.C is the only valid port configuration
and it is selected automatically.
The Line Rate field may not immediately show a clock
frequency.
4. In the lower portion of the screen, choose Subclass 0 from
the Subclass dropdown menu.
The SYNC Status may show a green check mark or a red
cross. See Figure 9.
Rev. 0 | Page 9 of 22
ADS7-V2EBZ
AD9164 and reflects the name in the
AD9164
UG-1526
ADS7-V2EBZ
