USING THE ADS7-V2EBZ

CONFIGURE THE SPECTRUM ANALYZER

Configure the spectrum analyzer as follows:

Start frequency = 50 MHz.

Stop frequency = 5 GHz.

Resolution bandwidth = 300 kHz.

Use the average rms detector setting.

Choose an input attenuation of 6 dB. This value can be
adjusted later if there are indications that the analyzer is
causing degradations (warnings on the analyzer itself, or
third-order products appearing on the output spectrum).
User Guide
TO PLAY A PATTERN TO THE EVALUATION BOARD

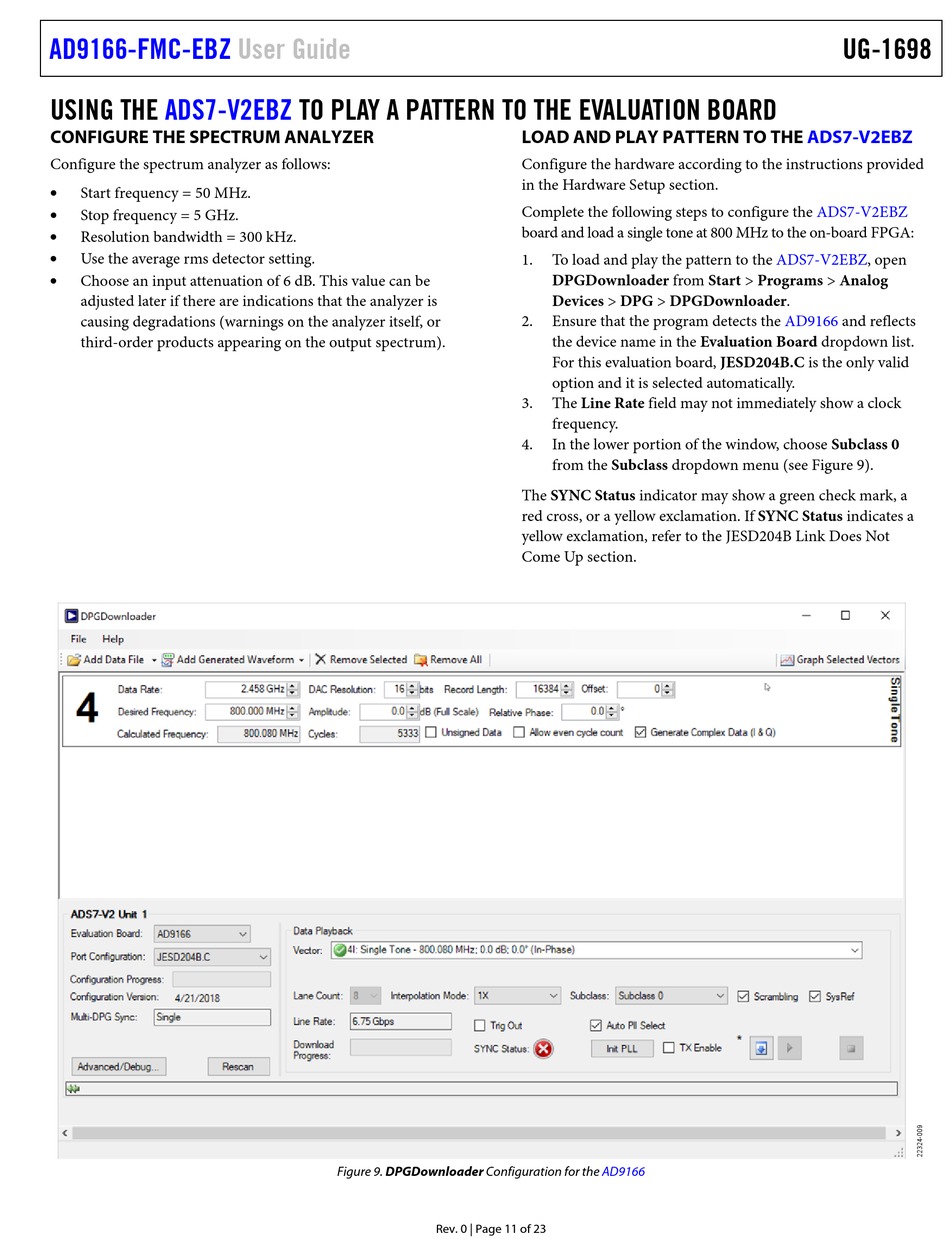

Figure 9. DPGDownloader Configuration for the
LOAD AND PLAY PATTERN TO THE
Configure the hardware according to the instructions provided
in the Hardware Setup section.
Complete the following steps to configure the
board and load a single tone at 800 MHz to the on-board FPGA:
1. To load and play the pattern to the ADS7-V2EBZ, open
DPGDownloader from Start > Programs > Analog
Devices > DPG > DPGDownloader.
2. Ensure that the program detects the
the device name in the Evaluation Board dropdown list.
For this evaluation board, JESD204B.C is the only valid
option and it is selected automatically.
3. The Line Rate field may not immediately show a clock
frequency.
4. In the lower portion of the window, choose Subclass 0
from the Subclass dropdown menu (see Figure 9).
The SYNC Status indicator may show a green check mark, a
red cross, or a yellow exclamation. If SYNC Status indicates a
yellow exclamation, refer to the JESD204B Link Does Not
Come Up section.
AD9166
Rev. 0 | Page 11 of 23
UG-1698
ADS7-V2EBZ
ADS7-V2EBZ
AD9166 and reflects
