AD9161/AD9162/AD9163/AD9164

EVALUATION BOARDS DIFFERENCES

The differences between the AD9161, AD9162, AD9163, and
AD9164 evaluation boards are the DAC package and the output
balun, as shown in Table 1. For example, different variants of
the AD9162-FMC-EBZ and AD9164-FMC-EBZ use a Marki
BAL-0009SMG balun, while the AD9162-FMCB-EBZ and
AD9164-FMCB-EBZ use the mini-circuits TC1-1-43A+ balun.
Table 1. AD9161, AD9162, AD9163, and
Board Model No. DAC
AD9162-FMC-EBZ AD9162
AD9164-FMC-EBZ AD9164
AD9162-FMCB-EBZ AD9162
AD9164-FMCB-EBZ AD9164
AD9161-FMCC-EBZ AD9161
AD9162-FMCC-EBZ AD9162
AD9163-FMCC-EBZ AD9163
AD9164-FMCC-EBZ AD9164
User Guide
AD9164 Boards Differences
DAC Package
165-Ball, 8 mm × 8 mm CSP_BGA with 0.5 mm pitch
165-Ball, 8 mm × 8 mm CSP_BGA with 0.5 mm pitch
165-Ball, 8 mm × 8 mm CSP_BGA with 0.5 mm pitch
165-Ball, 8 mm × 8 mm CSP_BGA with 0.5 mm pitch
169-Ball, 11 mm × 11 mm CSP_BGA with 0.8 mm pitch
169-Ball, 11 mm × 11 mm CSP_BGA with 0.8 mm pitch
169-Ball, 11 mm × 11 mm CSP_BGA with 0.8 mm pitch
169-Ball, 11 mm × 11 mm CSP_BGA with 0.8 mm pitch
Rev. 0 | Page 15 of 22
The insertion loss, the phase mismatch, and the amplitude
mismatch of these baluns are different at each frequency.
Therefore, the DAC output fundamental amplitude response
and the spurious levels can be slightly different. The typical
fundamental amplitude responses (without the cable loss
calibration) are shown in Figure 17.
5
0
–5
–10
–15
–20
–25
AD9162-FMCC-EBZ TCM1-63AX+ BALUN
–30
AD9162-FMCB-EBZ TC1-1-43A+ BALUN
AD9162-FMC-EBZ MARKI BALUN
–35
0 500 1000 1500
FREQUENCY (Hz)

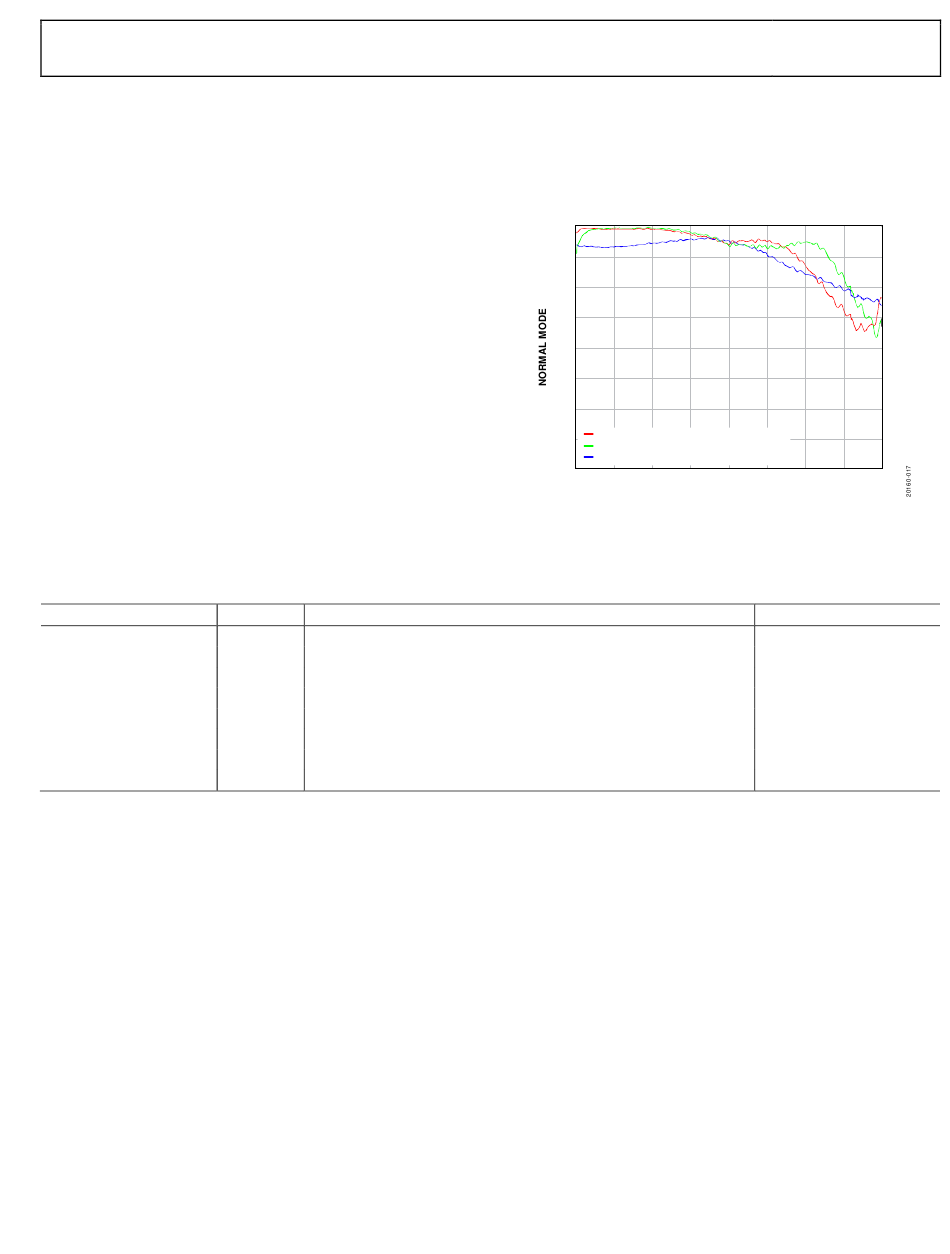

Figure 17. Typical Fundamental Amplitude Responses of Evaluation Boards
UG-1526
2000 2500 3000 3500 4000
Output Balun
Marki BAL-0009SMG
Marki BAL-0009SMG
TC1-1-43A+
TC1-1-43A+
TCM1-63AX+
TCM1-63AX+
TCM1-63AX+
TCM1-63AX+
