Intelbras IVP 1000 Pet Smart User Manual

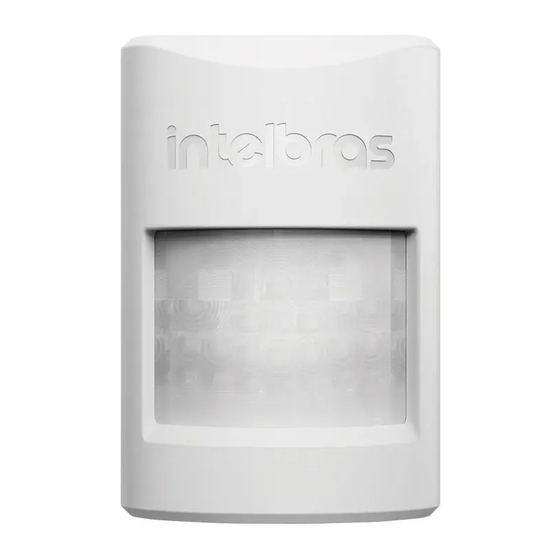

Wireless passive infrared motion sensor
Hide thumbs Also See for IVP 1000 Pet Smart:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
IVP 1000 Pet Smart

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IVP 1000 Pet Smart and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intelbras IVP 1000 Pet Smart

Summary of Contents for Intelbras IVP 1000 Pet Smart

  • Page 1 User manual IVP 1000 Pet Smart...
  • Page 2 IVP 1000 Pet Smart Wireless passive infrared motion sensor Congratulations, you have just purchased a product with Intelbras quality and safety. The IVP 1000 Pet Smart motion sensor features passive infrared ray detection technology, with advanced signal analysis technology that prevents accidental triggering.
  • Page 3 Care and safety » This product is intended for INDOOR environments. » The Pet function is intended for crawling animals weighing up to 20 kg. If the animal is on top of a bench, for example, the Pet function can be canceled. »...
  • Page 4 Pet function may be impaired in order to nullify the Pet immunity. » LGPD – General Personal Data Protection Law: Intelbras does not access, transfer, capture or perform any other type of processing of personal data from this product.

  • Page 5: Table Of Contents

    Summary 1. Technical specifications 2. Characteristics 3. Product 4. Installation 5. Sensitivity setting 6. Operation 7. IVP 1000 Pet Smart sensor supervision adjustment 8. Tamper function 9. Test 10. Low battery sensor 11. Battery replacement 12. Homologation Warranty term...

  • Page 6: Technical Specifications

    1. Technical specifications Battery LITHIUM CR123A 3 V Supervised operational current 28 mA Unsupervised operating current 18 mA Consumption at rest 5 uA Detection angle 90° Detection range 12 meters Detection method Immunity to crawling animals Up to 20 kg Sensitivity adjustment 3 levels (1P –...

  • Page 7: Product

    3. Product 1. Cabinet; 2. Fresnel lens; 3. PROG button; 4. Sensitivity selector switch; 5. Bicolor LED; 6. Pyro Sensor; 7. Tamper key; 8. Battery; 9. Antenna. 4. Installation The sensor must be installed on a flat, fixed, flicker-free surface with a height between 2.0 and 2.4 meters. It is recommen- ded to install the sensor parallel to the wall for the greatest detection range.

  • Page 8: Sensitivity Setting

    Important: the IVP 1000 Pet Smart was designed for indoor and closed areas and with the presence of animals of up to 20 kg, so do not use it for protection of outdoor or open areas and with the presence of animals of more than 20 kg.

  • Page 9: Operation

    6. Operation When energizing the sensor, it runs in test mode for 15 minutes so that all sensor positioning adjustments can be made. During this period, at any motion detection the LED lights up and a trigger is generated. After the test mode, the sensor goes into economic operating mode, so that when it detects movement it turns on the LED, triggers and goes into hibernation, remaining for a period that can last from 30 seconds (environment with little movement) up to 2 minutes (environment with a lot of movement).

  • Page 10: Ivp 1000 Pet Smart Sensor Supervision Adjustment

    7. IVP 1000 Pet Smart sensor supervision adjustment The IVP 1000 Pet Smart sensor allows you to select between supervised (FSK) and unsupervised (OOK) modes. To switch between supervision modes press and hold the PROG button for approximately 5 seconds until the LED flashes 2 times.

  • Page 11: Test

    ANM 24 NET If this functionality is enabled, that is, if key 1 is lit, the wireless sensor will send a tamper trip to the control panel, in case it is violated through its front cover. To disable this functionality, press the 1 key so that the key is unlit. To complete the setup process press the Enter key.

  • Page 12: Low Battery Sensor

    10. Low battery sensor The IVP 1000 Pet Smart sensor controls the battery level and if it is critical (equal to or below 2.5 V) it sends the information to the control panel during triggering. In addition, the sensor also signals through the LED, after each activation of the sensor the LED lights up (as usual) and then flashes indicating low battery.

  • Page 13: Warranty Term

    8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated).
  • Page 14 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Produced by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia BR 459, km 124, 1325 – Distrito Industrial – Santa Rita do Sapucaí/MG – 37540-000 02.22 CNPJ 82.901.000/0016-03 –...
