Relay Outputs - Basic - HySecurity SlideDriver II Installation Manual

The three relays on the SmartTouch 720/725 Controller
are configurable to perform a wide range of options for
integration with external devices.
● Accessory power limited to 2A at 24VDC across all
inputs and relays.
● Relay capacity: (1) Mechanical 20A max at 240VAC
(Figure 37 Item 9). (2) Solid state relays 30VDC, 2A
max (Figure 37 Item 10, 11).
1. Install the relay controlled device according to the
manufacturer's instructions.
2. Route the relay wires to the SmartTouch 720/725
Controller.
3. Install the relay wires in the appropriate relay port:
mechanical (Relay 1) or solid state (Relay 2 and 3)
(Figure 37).

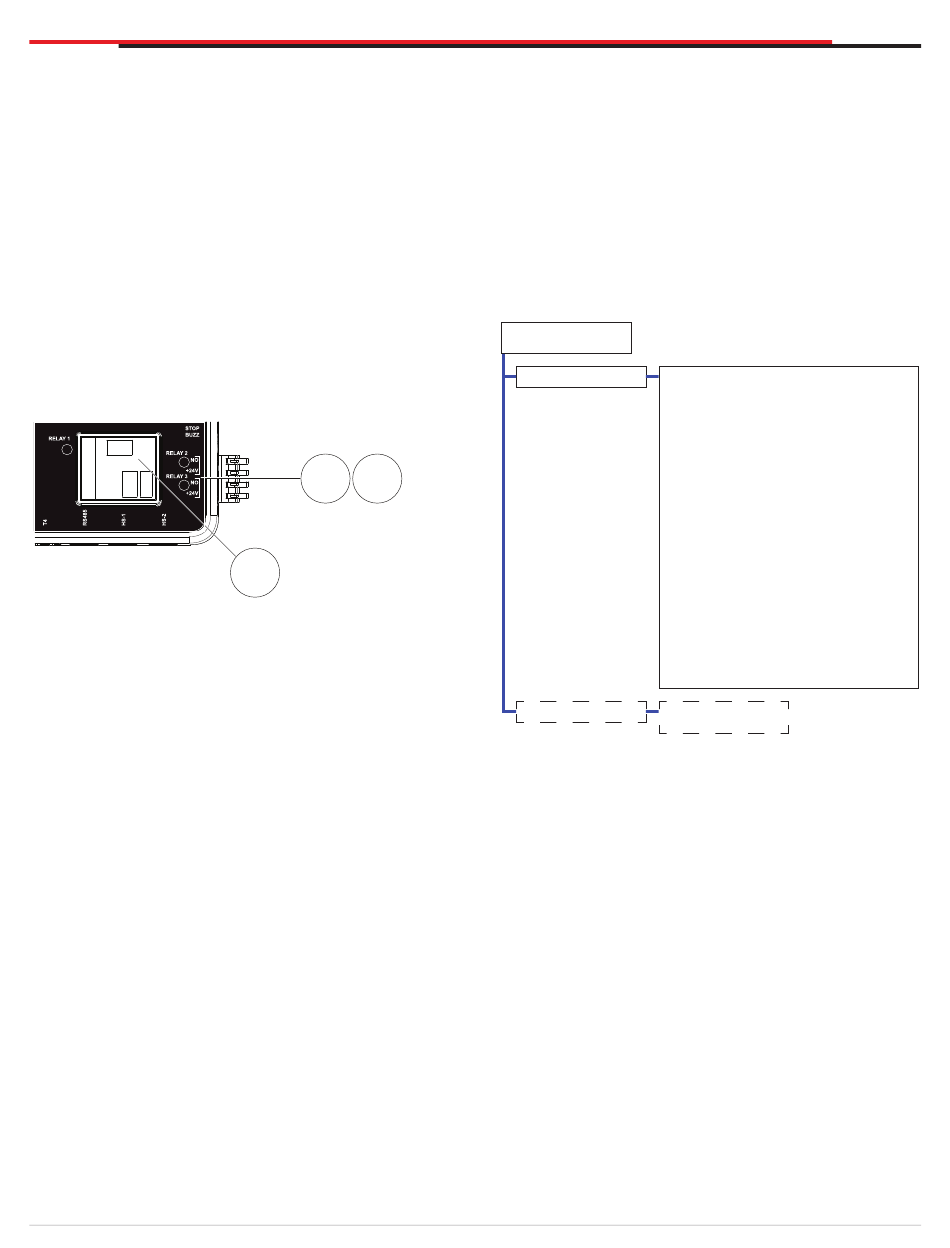

Figure 37. Relay Ports
10 11
9

RELAY OUTPUTS - BASIC

4. Press MENU on the SmartTouch 720/725 Controller.
5. Press the UP or DOWN arrow to navigate to USER
RELAY OUTPUTS, press SELECT.
6. Press the UP or DOWN arrow to navigate to RELAY
LOGIC, press SELECT.
7. Press the UP or DOWN arrow to highlight the
appropriate setting, press SELECT.
8. Press BACK until the SmartTouch 720/725 Controller
resets and operator status displays.
USER RELAY
OUTPUTS
RELAY 1 – 3 LOGIC 0 DISABLED
1 CLOSE LIMIT
2 CLOSE PULSE
3 OPEN LIMIT
4 OPEN PULSE
5 WARN B4 OP
6 GATE LOCK
7 FORCE OPEN
8 OPEN 2LONG
9 SAFE MODE
10 ENTRAPMENT
11 TAILGATER
12 OUTSIDE LOOP
13 LOITERING
14 NEAR LIMIT
15 ALERT/FAULT
16 MOTOR RUNNING
17 AC POWER LOSS
18 LOW BATTERY
19 FLASHER
20 EXIT LOOP
21 INSIDE LOOP
22 CENTER LOOP
23 PRISON LOCK
24 PARTIAL OPEN
RELAY 4 – 11 LOGIC 0 DISABLED –
49 BELOW 45DEGF
RELAY 4 – 11 ARE VISIBLE AND CONFIGURABLE ONLY WITH
I/O EXPANSION MODULE WHICH CONNECTS VIA COMMUNICATION CABLE
(MX4330 IN THE I/O EXPANSION MODULE KIT) FROM HS-1 ON THE
SMARTTOUCH CONTROLLER TO HS-A ON THE I/O EXPANSION MODULE
Note: On SlideDriver II the I/O Expansion Module
connects to HS-1 on the SmartTouch 720/725
Controller by default.
25 BATTERY OK
26 EXIT PULSE
27 NOT OP AC
28 FLASH AC
29 ARM ENTRY
30 ARM EXIT
31 RESET TKT
32 BACKOFF
33 TRANS IN
34 TRANS OUT
35 TENANT IN
36 TENANT OUT
37 SPEC IN
38 SPEC OUT
39 UNK IN
40 UNK OUT
41 TEST OPEN
42 ARM BREAK
43 WARN THRU
44 POL PULSE
45 OUTS CLOSE
46 TIMER OPEN
47 OXI ACCESSORY
48 OXI ACC/1-MIN
49 BELOW 45DEGF
MX5386 Rev. B ©2023 71
