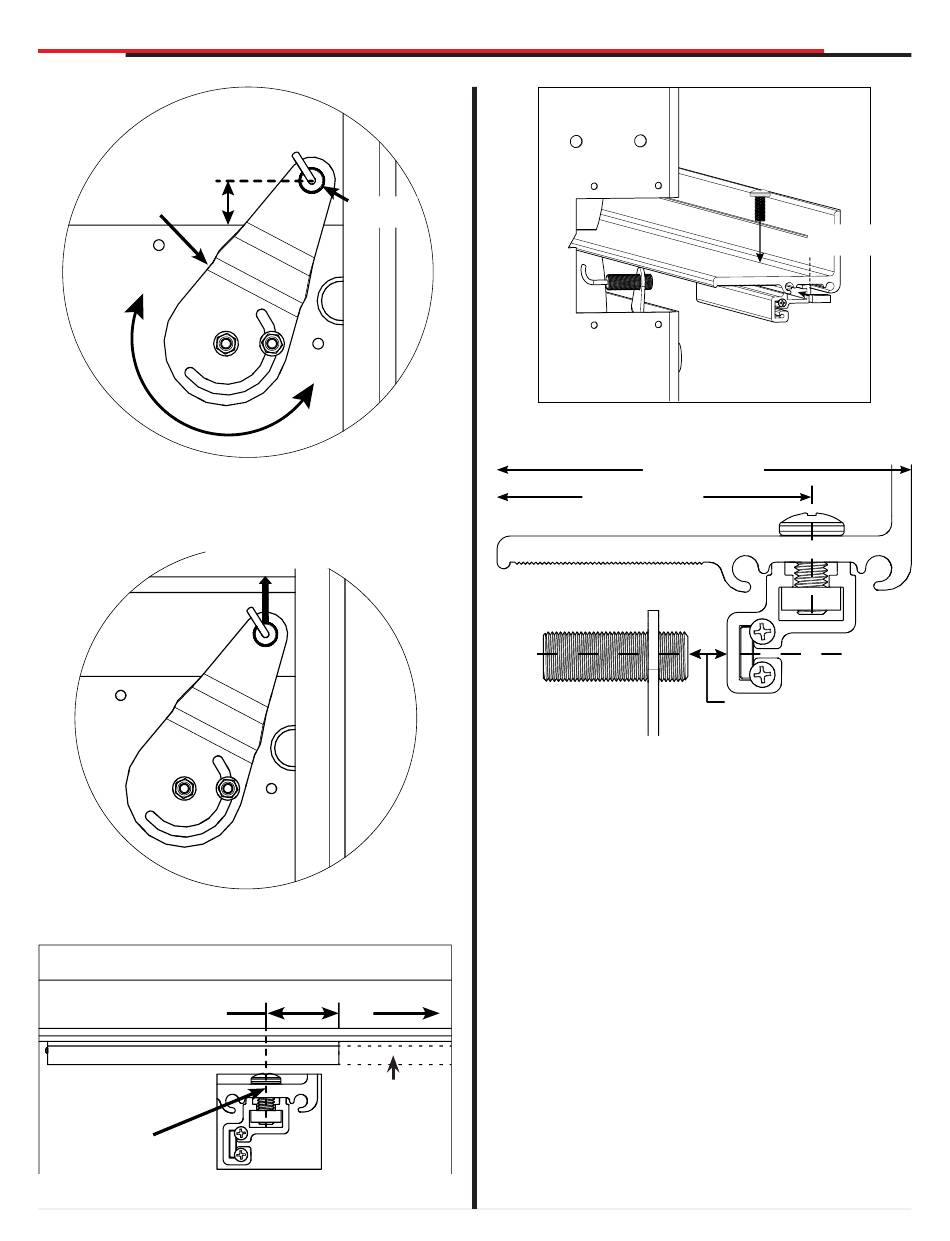

INSTALL AND SECURE LIMITS
Approx. 7/8 in
(22 mm)
Limit
sensor
bracket
Figure 10. Set Limit Sensor Height
Mark rail directly
above center of
limit sensor
Rail
Figure 11. Mark Limit Senor Location on Rail
3 in (76 mm)
BLACK (LEFT)
Centered in
limit track
Figure 12. Drill First Limit Flag Hole (Left Limit)
26 support.hysecurity.com
Dual limit
sensor
First hole Mark Operator
Slow down
limit flag
(SD50F only)
Figure 13. Install Limit Flag
4 in (101 mm)
3 in (76 mm)
Figure 14. Set Dual Limit Sensor Spacing
Note: For SlideDriver II operators, the limit flags are
installed in the limit track and should not cross the
path of the drive wheels in the drive track.
Pan or flat
head screw
Center of
limit track
Square
nut
Vertically
centered
1/4 to 3/4 in (6 to 19 mm)
spacing
