Quick Start Guide – OLED DSP05-L
https://en.racelogic.support//Product_Info/Displays/OLED_Displays/VBOX_OLED_Display_DSP05/
VBOX_OLED_Display_DSP05-L/Quick_Start_Guide_%E2%80%93_OLED_DSP05-L
Registration
Please register your OLED Display so that Racelogic can continue to provide you with notifications about the latest
software releases and firmware upgrades for your Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a OLED Display DSP05-L, you will find the following items when you open the box:
Product
Quantity
Description
Code
VBDSP05-L
1

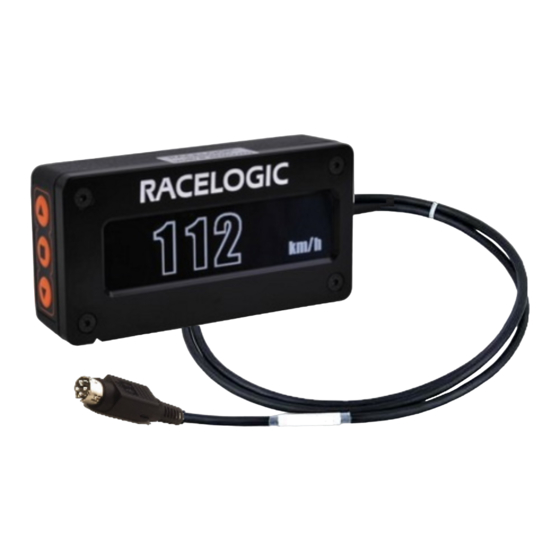

OLED Display with Lemo connector
RLACS287
1
VBOX Lightweight Suction Mount
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP05-L and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic DSP05-L

Summary of Contents for Racelogic DSP05-L

  • Page 1 Racelogic product, and offer technical support. Register your device here. What is in the box? When you purchase a OLED Display DSP05-L, you will find the following items when you open the box: Product Quantity...
  • Page 2 Features • View Parameters, such as Live Speed, Max Speed, Lap • Internal accelerometer flips the display Times and Predictive Lap Time according to the mounting direction • Inverse screen colours or change font options for varying • Shows logging and capacity status of operation condition connected VBOX units •...
  • Page 3 Mode Function Speed Start and stop logging Max Speed Reset max speed value Speed Bar Set centre speed and speed display range Single press fixes the current reference lap according to Predictive Lap Timing your settings in Fixed Lap Mode Pressing for >4 s clears the stored reference lap and all Predictive Lap Timing lap timing data...
  • Page 4 Video VBOX Pro To connect to a Video VBOX Pro, connect the cable into the ‘SER’ port.

  • Page 5: Display Modes Overview

    Display Modes Overview The OLED display DSP05 has different display modes that you can access by using the ▲▼ buttons on the unit. The data displayed on each screen is always calculated by the unit at all times, even if you choose not to display it. Click on the name of each mode to find relevant setup information.

  • Page 6: Menu Options

    Longitudinal G Bar Lateral G Lateral G Bar Speed Bar Menu Options You can access the DSP05 OLED Display menu by pressing the square button when the ‘Menu’ screen is displayed. You can navigate the menu with the ▲▼ buttons.

  • Page 7: Scene Selection

    Scene Selection Specified You can load up to 8 user-defined scenes by placing them in the root folder of an SD card and inserting it into the connected Video VBOX Lite. All the required scenes must be loaded at the same time. Every time you load scenes to the Video VBOX Lite, they will overwrite those previously saved on the unit.

  • Page 8: Track Selection

    Track Selection When the Video VBOX Lite has acquired satellites, it will check the GNSS location against Racelogic’s track map database and load the available layouts. Where a track has multiple layouts, you must use this menu option to select the layout you are driving, as this allows the DSP05 OLED Display to load the correct start/finish line(s).

  • Page 9: Predictive Lap Timing Settings

    Clear Lap Times Selecting this option will wipe all stored lap times from the unit’s memory. It will automatically take you back to the main menu after clearing the history. Predictive Lap Timing Settings Bar Range This setting alters the amount of +/- time shown on the bar graph during lap prediction.
  • Page 10 When enabled, this mode will change the Predictive Lap Timing display to show your current speed as well as Delta-T information, when your speed drops below a specified threshold for a set amount of time. This function is optimised for use with both 'Virtual Safety Car' conditions and Pit Lane speed limits.
  • Page 11 the Delta T Speed Mode settings and go back to the Predictive Lap Timing Settings. Back Transfer Ref. lap to... This feature lets you save a reference lap for future use. Insert an SD card into the connected Video VBOX Lite and use the following menu options. Note: The vehicle must be stationary to make this transfer.
  • Page 12 Fixed Lap Mode Press the square button to toggle between the available settings: Fix Current and Fix Stored. Note: When you have fixed a reference lap, you will see a message confirming your selection on the screen and a Padlock icon will appear. If you fix a stored lap the icon will appear instantly, if you fix the current lap, the icon will appear when the lap has been completed.

  • Page 13: Lap Timing Menu

    Lap Timing Menu Set Start & Splits Pressing the square button sets a new start/finish point. After this, the DSP05 OLED Display will read “Set split 1”. Press the square button to set the split or ▼ to skip through split points, Finish line and back. If you set a new start/finish or split line, the lap count, best lap and all the best split time values will be reset automatically.
  • Page 14 Split to Split Time When this option is selected then the calculated split times will be split to split and not accumulative from the start of the lap. Rolling Lap Time Selecting this function will show a continuously counting lap time which briefly freezes as the start/finish line is crossed.

  • Page 15: Display Menu

    Display Menu Modes The DSP05 OLED Display has two Display Menu Modes for the Features; Basic Mode and Advanced Mode. This allows you to keep the full functionality of the DSP05 OLED Display or to reduce the amounts of Display modes to the Basic features.

  • Page 16: Speed Settings

    Advanced Features (Default) Lap Count Back Press the square button with this line highlighted to exit the Modes settings and go back to the Display Menu. Speed Settings Speed Units If the square button is pressed the DSP05 OLED Display allows the user the ability to select the units of the displayed speed.
  • Page 17 Back Accel Settings Accel Decimal Places Press the square button to toggle through 0, 1, and 2 decimal places. Accel Smoothing Press the square button to toggle through five smoothing settings. Back Press the square button with this line highlighted to exit the Accel Settings and go back to the Display Menu.

  • Page 18: Invert Screen Colour

    Brightness Press the square button to toggle through five brightness settings. 1 is the darkest setting and 5 is the brightest setting. The display will change its brightness as you toggle through each setting to make it easier to find the correct level for you.
  • Page 19 About In this section, you can find the Installed firmware version and the serial number for both the DSP05 OLED Display and the connected VBOX data logger. You can also find the unit type for the connected VBOX data logger. The firmware version of the OLED Display will also be visible on the screen while it boots up.
