Summary of Contents for Racelogic RLVBDSP02

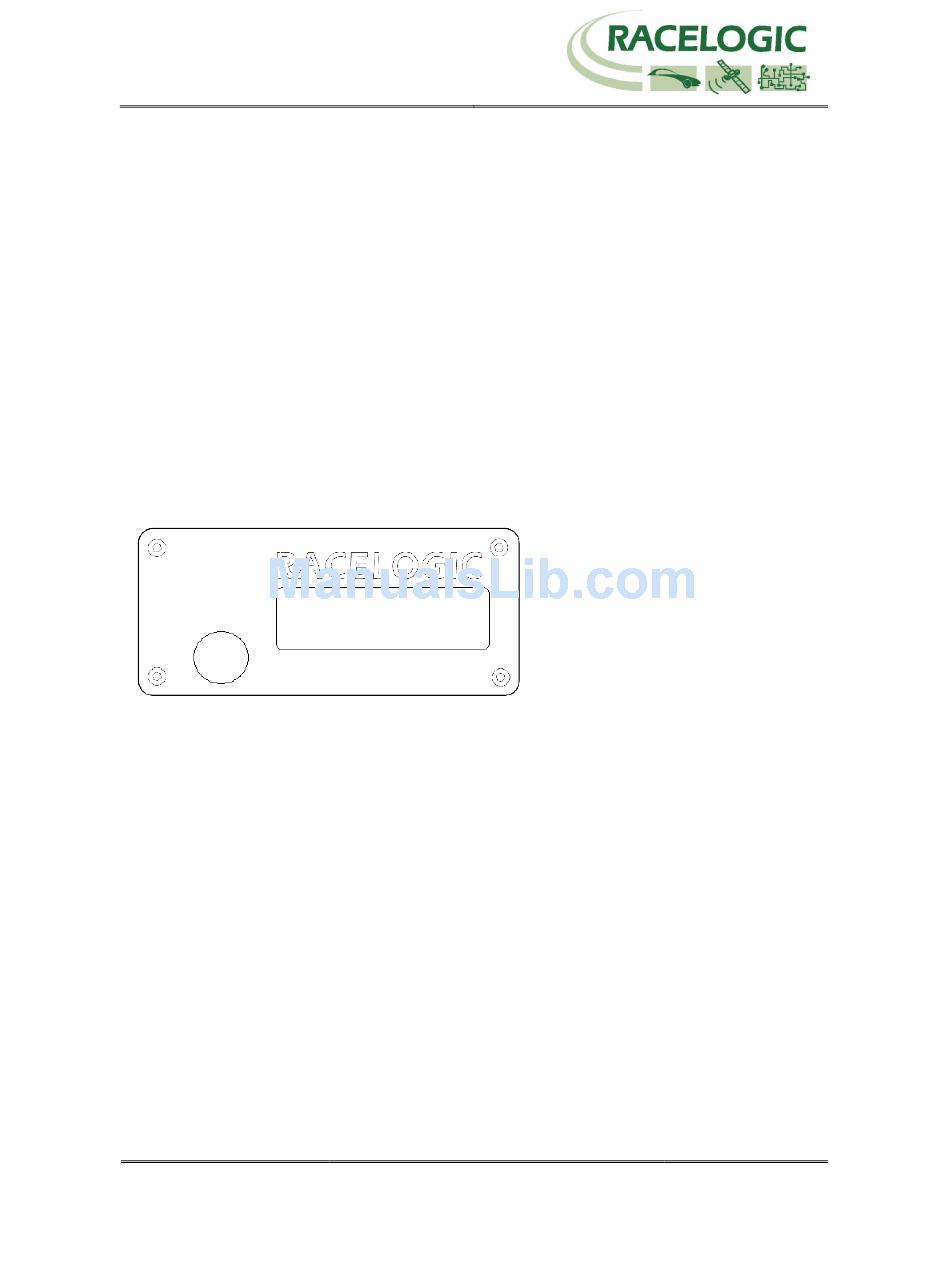

- Page 1 LED Display LED DISPLAY RLVBDSP02 Instruction Manual RLVBDSP02_Manual.doc Revision 1 30/04/2008 Page 1 of 9...
-
Page 2: Table Of Contents
LED Display Contents Contents ............................. 2 Introduction ..........................4 Parts supplied with RLVBDSP02 ....................4 Specification ..........................4 Connection of DSP02 to VBOX ....................5 Using the LED Display ....................... 6 Contact details ........................... 8 Module Dimensions ........................8 Document updates ........................9 RLVBDSP02_Manual.doc... -
Page 3: Ec Declaration Of Conformity
LED Display EC Declaration of Conformity We declare that this product has been tested to and meet the requirements of: EC Directive 2004/104/EC “Adapting to Technical Progress Council directive 72/245/EEC relating to the radio interference (Electromagnetic Compatibility) of vehicles and amending directive 70/156/EEC on the approximation of the laws of the member states relating to the type-approval of motor vehicles and their trailers.”... -
Page 4: Introduction
LED Display Introduction The RLVBDSP02 is a LED Display module for use with the Racelogic VBOX. It provides an easy to read display of vehicle speed. In addition to speed the LED display can also show lateral acceleration, current satellite count and height and vertical velocity. Connection to the VBOX is via the 5 pin Lemo connector on the VBOX. -
Page 5: Connection Of Dsp02 To Vbox
LED Display Connection of DSP02 to VBOX Using the 5 way LEMO to 5 way LEMO cable (RLVBCAB05) connect socket 5 (RS232) of the VBOX to any of the sockets on the LED display. Power the VBOX using either the 12V cigar adapter or a fully charged battery pack. -
Page 6: Using The Led Display
LED Display Using the LED Display The latest LED Display firmware is capable of displaying the following parameters:- Speed in Knots, Km/h and MPH Longitudinal Acceleration* Lateral Acceleration* Satellites in view count Height Vertical Velocity* *Not available with VB10SPS The Display data is taken from the serial data output from the VBOX. - Page 7 LED Display Press the button to cycle through SP0-SP7. When the desired parameter number is selected, stop pressing the button. After a short delay of approximately 3 seconds the display will return to operational mode. Example. To select lateral acceleration press the button in short succession until the display shows SP 4.
-
Page 8: Contact Details
LED Display Contact details Racelogic Ltd Unit 10 Swan Business Centre Osier Way Buckingham MK18 1TB England Tel +44 (1280) 823803 Fax +44 (1280) 823595 Email support@racelogic.co.uk www.racelogic.co.uk Module Dimensions RLVBDSP02_Manual.doc Revision 1 30/04/2008 Page 8 of 9... -
Page 9: Document Updates
LED Display Document updates Revision Description Date First issue. KB 6/01/05 Update for VB10SPS compatibility 4/4/07 Inclusion of Declaration of Conformity Statement 5/6/07 Update of Address 30/04/08 RLVBDSP02_Manual.doc Revision 1 30/04/2008 Page 9 of 9...
