Mounting and Connecting
This page contains information relevant to installing and connecting a VBOX OLED Display (DSP07-L) to a VBOX unit.
Mounting
Antenna Placement
Appropriate placement of the GNSS antenna is crucial to the quality of the data that is being recorded.
You can find information about how to mount the antenna here.
Mounting Options
https://en.racelogic.support//Product_Info/Displays/OLED_Display/OLED_Display_DSP07/OLED_Display_DSP07-L/User_Guide_-
Standard Accessory - RLACS287

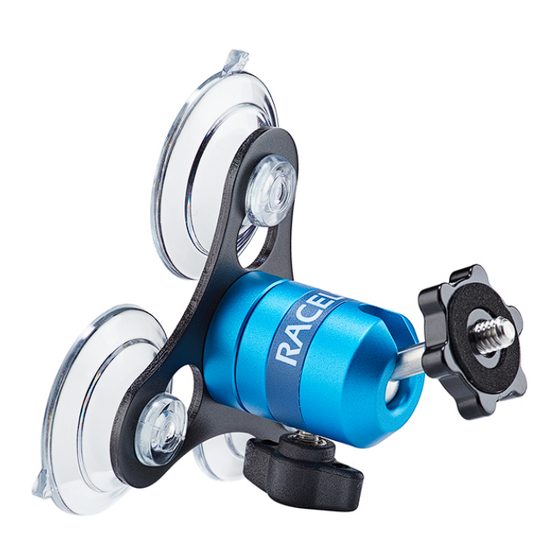

The RLACS287 Lightweight Windscreen Suction
Mount is made to be attached to the windscreen in the
driver's field of view to make it easy to take in
information at a glance.
_OLED_Display_DSP07-L/02_Mounting_and_Connecting
1
