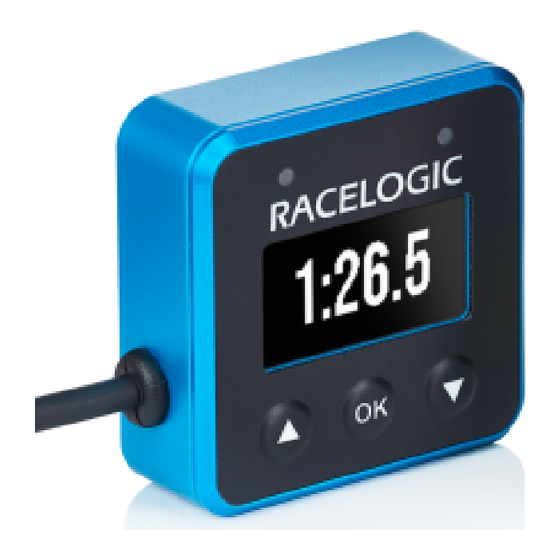

Mini oled display
Hide thumbs

Advertisement

Quick Links

Download this manual

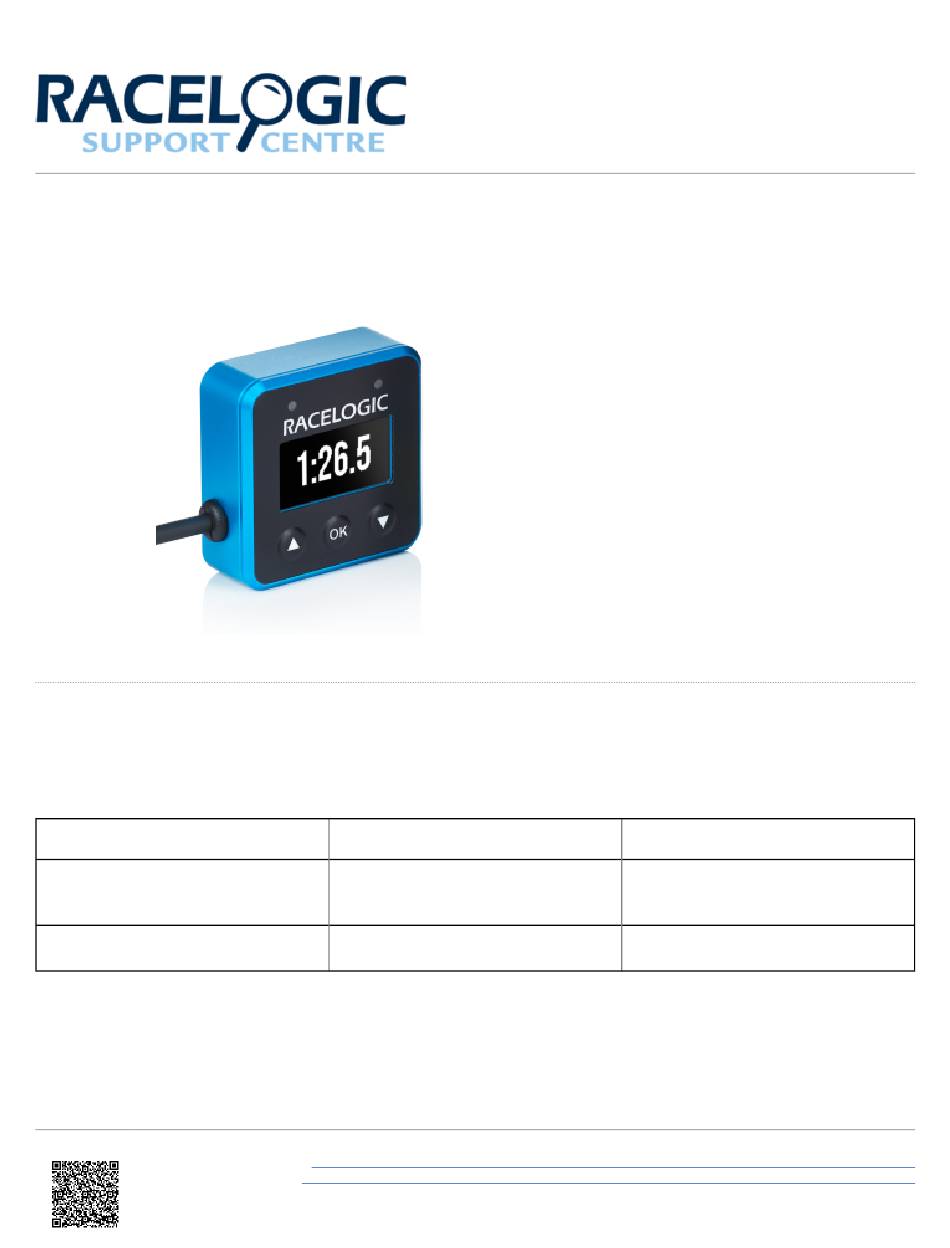

Quick Start Guide – Mini OLED Display DSP06-L
What is in the box?
When you purchase a Mini OLED Display (RLVBDSP06-L), you will find the following items when you open the box:
Product Code
VBDSP06-L
RLACS287
Quantity
1
1
https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/
VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L
Description
Mini OLED Display Unit with Lemo
5-way plug
VBOX Lightweight Suction Mount
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DSP06-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Racelogic DSP06-L

Summary of Contents for Racelogic DSP06-L

  • Page 1 Quick Start Guide – Mini OLED Display DSP06-L What is in the box? When you purchase a Mini OLED Display (RLVBDSP06-L), you will find the following items when you open the box: Product Code Quantity Description Mini OLED Display Unit with Lemo...
  • Page 2 OK Button Functions Depending on which mode is currently active on the screen, the function of the OK button will change. The splash screen shown when scrolling through the menu describes the function of the OK button in each mode. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
  • Page 3 If you do not have an SD card inserted in your VBOX data logger, the OLED Display will show a "No Media" message while the vehicle is moving at speeds of 5 mph or less. This makes it easier for you to make sure that you have an SD card inserted before you start your logging. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...

  • Page 4: Display Connection

    Display connection When setting up the DSP06 Mini OLED display with a VBOX Video HD2 or a Video VBOX Pro VBOX Video HD2 To connect to a VBOX Video HD2, connect the cable to the ‘CAN / SER’ port. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
  • Page 5 To connect the Mini OLED Predictive Lap Timing Display and a CAN VCI at the same time to log external parameters from either a vehicle CAN Bus or a Racelogic expansion module. Connect the single end of the splitter cable (RLCAB081) to the ‘SER’ port on the VBOX Video HD2 and connect the Mini OLED Display to one of the dual ends and your CAN VCI to the other.
  • Page 6 Video VBOX Pro To connect to a Video VBOX Pro, connect the cable to the ‘SER’ port. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...

  • Page 7: Display Modes

    Display Modes The DSP06 Mini OLED Display has different display modes that you can access by using the ▲▼ buttons on the unit. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
  • Page 8 The data displayed on each screen is always calculated by the unit at all times, even if you choose not to display it. Click on the name of each mode to find relevant setup information. Speed Max. Speed Lap Timing Predictive Lap Timing https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
  • Page 9 Lap Count Longitudinal G Longitudinal G Bar Lateral G https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...

  • Page 10: Led Behaviour

    The two LEDs act as a gauge, filling up from the left to right. Once the current speed is slower or faster than the reference, the left LED will illuminate. Once the current speed is above 50% of the defined positive or negative range, the LED on the right will also illuminate. Slower than reference lap Faster than reference lap https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
  • Page 11 Combo G value. • The LEDs will show green where the Combo G is equal to or greater than the selected maximum g threshold. Default settings example: < 0.5 g 0.5 g 0.75 g ≥ 1 g https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
  • Page 12 OK button when on the ‘Menu’ screen. You can navigate the menu with the ▲▼ buttons. To see the full list of menu options and their functionalities, we recommend that you read the Menu Options page in our User Guide. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX_Mini_OLED_Display_DSP06/ VBOX_Mini_OLED_Display_DSP06-L/Quick_Start_Guide_%E2%80%93_Mini_OLED_Display_DSP06-L...
