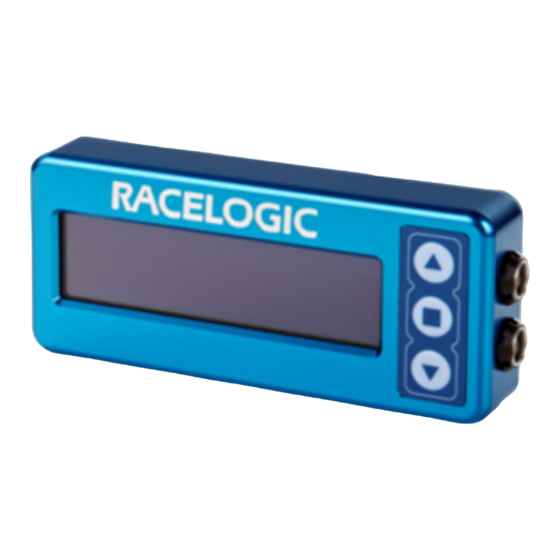

Quick Start Guide – OLED Display DSP04
Getting Started
Registration
Please register your OLED Display so that Racelogic
can continue to provide you with notifications about the
latest software releases and firmware upgrades for your
Racelogic product, and offer technical support.
Register your device here.
What is in the box?
When you purchase a OLED Display DSP04, you will find the following items when you open the box:
Product Code
VBDSP04
RLACS287
RLCAB063
Quantity
1
1
1
https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/
Description
OLED Display Unit
VBOX Lightweight Suction Mount
5-way Fischer Plug to 5-way Lemo
Plug - 2 m
Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSP04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Racelogic DSP04

  • Page 1 Racelogic product, and offer technical support. Register your device here. What is in the box? When you purchase a OLED Display DSP04, you will find the following items when you open the box: Product Code Quantity Description...
  • Page 2 Depending on which mode is currently active on the screen, the function of the square button will change. The splash screen shown when scrolling through the menu describes the function of the square button in each mode. You can also find the complete list below: https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 3 5 mph or less. This makes it easier for you to make sure that you have an SD card inserted before you start your logging. Installing the DSP04 OLED Display https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/...
  • Page 4: Display Connection

    Display connection When you are setting up the DSP04 OLED display with a VBOX Video HD2 or a Video VBOX Pro, it is important that you connect to the correct port on the OLED display. The serial connection on the OLED display is on the lower connector only.
  • Page 5 Video VBOX Pro To connect to a Video VBOX Pro, connect the cable to the ‘SER’ port. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 6 Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 7: Display Modes Overview

    Even if you choose not to display it, the data displayed on each screen is always calculated by the connected VBOX data logger at all times (with the exception of Delta-T which is calculated by the DSP04 OLED Display). Click on the name of each mode to find relevant setup information.
  • Page 8: Menu Options

    Longitudinal G Bar Lateral G Lateral G Bar Speed Bar Menu Options You can access the OLED Display menu by pressing the square button when the ‘Menu’ screen is displayed. You can navigate the menu with the ▲▼ buttons. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 9: Scene Selection

    DSP04 OLED Display. If you press the ▼ button when you see this prompt, the DSP04 OLED Display will show you a list of available scenes. Once the DSP04 OLED Display is powered and in use, you can access the scene selection through the main menu.
  • Page 10: Track Selection

    Press the square button with this line highlighted to exit the Track Selection menu and go back to the main menu. View Lap Times The DSP04 OLED Display will store all the lap times from your current session (maximum of 99 lap times). https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 11: Predictive Lap Timing Settings

    Lap Times and go back to the main menu. Clear Lap Times Selecting this option will wipe all stored lap times from the DSP04 OLED Display’s memory. It will automatically take you back to the main menu after clearing the history.
  • Page 12 The display will return to the Predictive Lap Timing mode when your speed increases to 5 km/h over the configured Delta-T Speed Mode value. For example, if you have set your DSP04 OLED Display to Predictive Lap Timing mode and you have enabled Delta-T Speed Mode;...
  • Page 13 Once selected, a message will appear on the DPS04 OLED Display to confirm that loading the reference lap from the SD card within the connected VBOX data logger has been successful. Note: The vehicle must be stationary to make this transfer. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 14 Fix Current Note - if you choose to fix the current lap, this should override any Minimum Lap Time setting as you are making the decision to set the current and full lap as the reference. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 15: Lap Timing Menu

    Set Start & Splits Pressing the square button sets a new start/finish point. After this, the DSP04 OLED Display will read “Set split 1”. Press the square button to set the split or ▼ to skip through split points, Finish line and back. If you set a new start/finish or split line, the lap count, best lap and all the best split time values will be reset automatically.
  • Page 16 Split Time Display Period This function allows you to set how long the split time is shown on the DSP04 OLED display when a split line or the start/finish line is crossed. There is a choice of 2 s, 5 s, 10 s, 15 s or 20 s.
  • Page 17: Display Menu

    The DSP04 OLED Display has two Display Menu Modes for the Features; Basic Mode and Advanced Mode. This allows you to keep the full functionality of the DSP04 OLED Display or to reduce the amounts of Display modes to the Basic features. The tables below list the Display Modes available in each Display Menu Mode.
  • Page 18 Lap Count Back Press the square button with this line highlighted to exit the Modes settings and go back to the Display Menu. Speed Settings Speed Units Pressing the square button will cycle through KPH, MPH and KNOTS. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 19 Speed Settings and go back to the Display Menu. Accel Settings Accel Decimal Places Press the square button to cycle through 0, 1, and 2 decimal places. Accel Smoothing Press the square button to cycle through five smoothing settings. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 20 Use Outline Font Press the square button when an option is highlighted to toggle it on or off. When you select an option, a tick will appear next to it and the display applies the setting accordingly. https://en.racelogic.support//Product_Info/Displays/OLED_Display/VBOX__OLED_Display_DSP04/ Quick_Start_Guide_%E2%80%93_VBOX_OLED_Display_DSP04...
  • Page 21 Display Menu and go back to the Main Menu. About In this section, you can find the installed firmware version and the serial number for both the DSP04 OLED Display and the connected VBOX data logger. You can also find the unit type for the connected VBOX data logger.
