Data Display - MFD Touch

Adding/Removing Screens

MFD Touch can display up to 6 defined VBOX parameters. There are 8 different screens available to display a varying
amount of parameters and gauges. You can add a maximum of 10 screens.

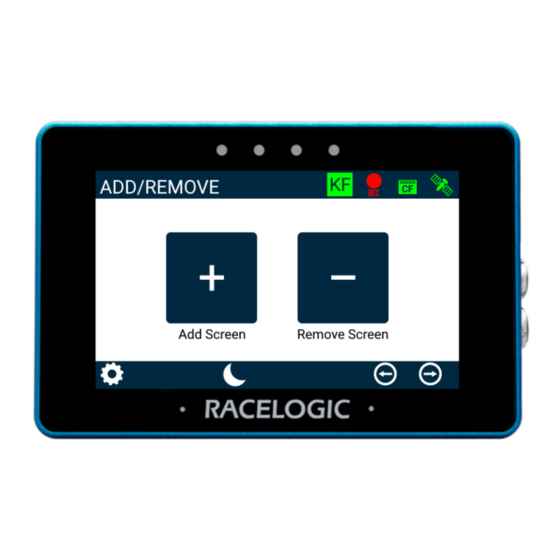

When the unit is booted up for the first time, the "6 Numerical" screen will be presented by default. If you would like to
add more screens, press the Forward or Back buttons on the bottom right of the screen, or swipe left or right on the
screen to access the ADD/REMOVE screen. It is always available before the first display screen and after the last
display screen.
https://en.racelogic.support//Product_Info/Displays/MFD_Touch/MFD_Touch_User_Guide/05_Data_Display_-_MFD_Touch
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFD Touch and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic MFD Touch

Summary of Contents for Racelogic MFD Touch

  • Page 1 Data Display - MFD Touch Adding/Removing Screens MFD Touch can display up to 6 defined VBOX parameters. There are 8 different screens available to display a varying amount of parameters and gauges. You can add a maximum of 10 screens.
  • Page 2 To add the screen, press the Confirm button on the bottom right of the screen to display the added screen. If you press the Cancel button on the bottom left of the screen you will return to the ADD/REMOVE screen without saving. https://en.racelogic.support//Product_Info/Displays/MFD_Touch/MFD_Touch_User_Guide/05_Data_Display_-_MFD_Touch...
  • Page 3 Forward or Back arrows on the sides of the screen. Press the Confirm button on the bottom right of the screen. Note: It is NOT possible to configure screens on an MFD Touch unit by using the VBOX Setup Software. Display Screens Once you have added screens, you can change the display by selecting the Forward or Back arrows on the bottom right of the screen or by swiping left or right.
  • Page 4 1 Numerical Screen 3 Numerical Screen 4 Numerical Screen 6 Numerical Screen Analogue Gauge Screen G-Ball Screen Target Screen Bar Graph Screen https://en.racelogic.support//Product_Info/Displays/MFD_Touch/MFD_Touch_User_Guide/05_Data_Display_-_MFD_Touch...
  • Page 5 To save the new name, press the Confirm button on the bottom right of the screen. Press the Cancel button on the bottom left of the screen to return to the parameter screen without saving. If you have an SD card inserted in the unit, it will remember the value after each power cycle. https://en.racelogic.support//Product_Info/Displays/MFD_Touch/MFD_Touch_User_Guide/05_Data_Display_-_MFD_Touch...
  • Page 6 Configure a Parameter You can configure each parameter by either pressing and holding or double-tapping the existing parameter area. This will open up the screen-specific menus. https://en.racelogic.support//Product_Info/Displays/MFD_Touch/MFD_Touch_User_Guide/05_Data_Display_-_MFD_Touch...
