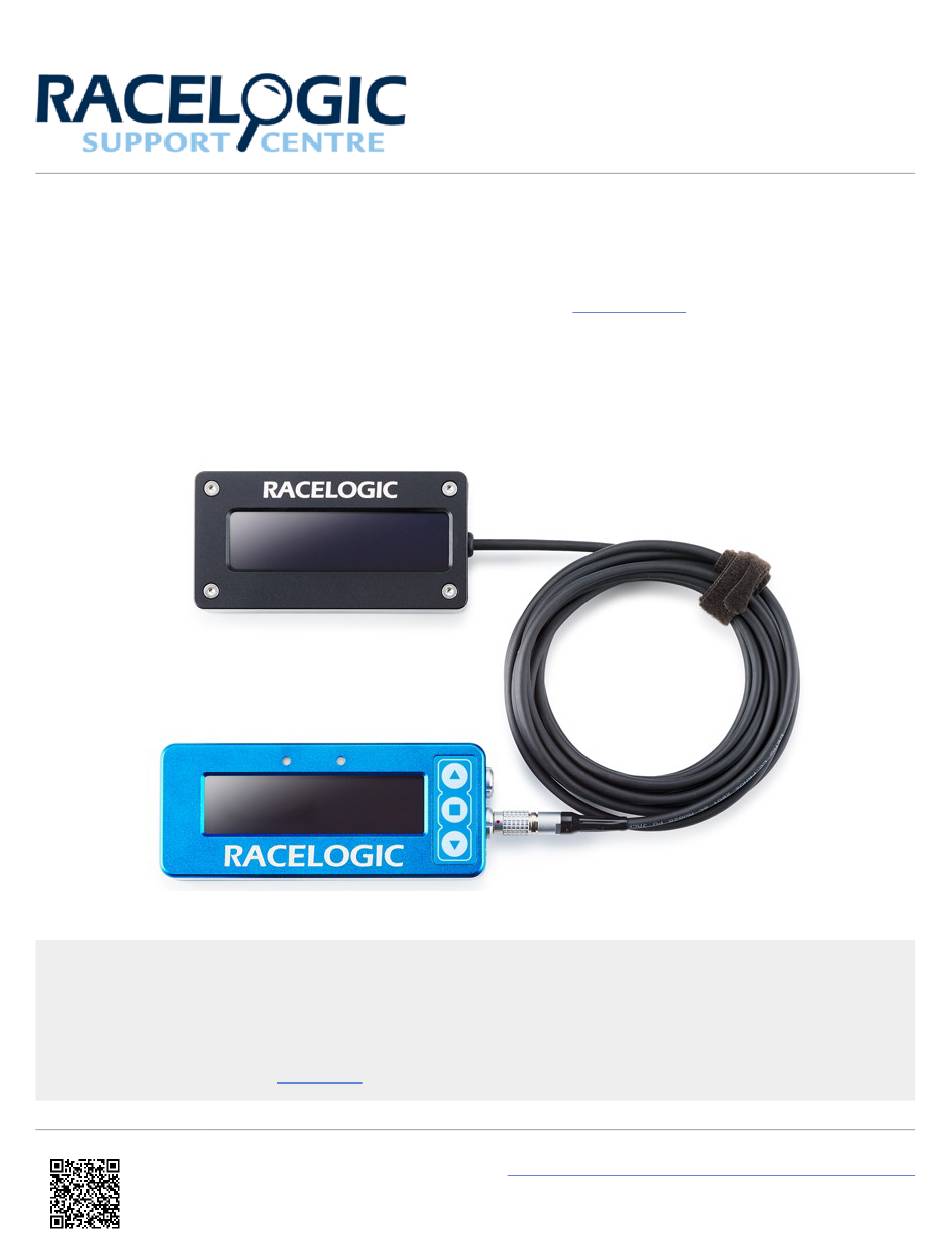

OLED Pit Display
An OLED Pit Display (RLVBPITDSP) can be used in conjunction with the
countdown time. This is particularly useful within endurance racing where it is the job of the pit crew to safely release the
car. It can be secured to the dash or one of the windows, facing outwards towards the pit crew. This will keep the team
informed of how much time they have left in the pit lane and to know exactly when to release the car with minimal time
loss.
To use an OLED Pit Display (RLVBPITDSP), Pit Lane Timer firmware version 1.1.22 or later is required. A
standard OLED display (RLVBDSP05) cannot be used instead of an OLED Pit Display. Instructions on how to
upgrade the firmware can be
IMPORTANT
found
here.
Pit Lane Timer
https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Display
to mirror the stationary
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLVBPITDSP and is the answer not in the manual?

Questions and answers

Related Manuals for Racelogic RLVBPITDSP

Summary of Contents for Racelogic RLVBPITDSP

  • Page 1 IMPORTANT To use an OLED Pit Display (RLVBPITDSP), Pit Lane Timer firmware version 1.1.22 or later is required. A standard OLED display (RLVBDSP05) cannot be used instead of an OLED Pit Display. Instructions on how to upgrade the firmware can be found here.
  • Page 2 Connection Connect the OLED Pit Display (RLVBPITDSP) to the RS232 / CAN port on the Pit Lane Timer using the flying lead. Configuration For the OLED Pit Display to work correctly with a Pit Lane Timer, the same CAN baud rate must be set within the menu both units.
  • Page 3 This setting affects the brightness of the background LCD display. Within the display menu, if the 'BRIGHTNESS' option is highlighted, pressing the square button will cycle through settings of brightness between 1 and 5. The display will alter it's brightness as the different settings are selected. https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Display...
  • Page 4 Pressing the square button when this option is highlighted will change the setting. Orientation To adjust the orientation of the display, press the square button when this option is highlighted. About Menu This section simply lists the firmware version and serial number of the OLED Pit Display. https://en.racelogic.support//Product_Info/Displays/OLED_Pit_Display...
