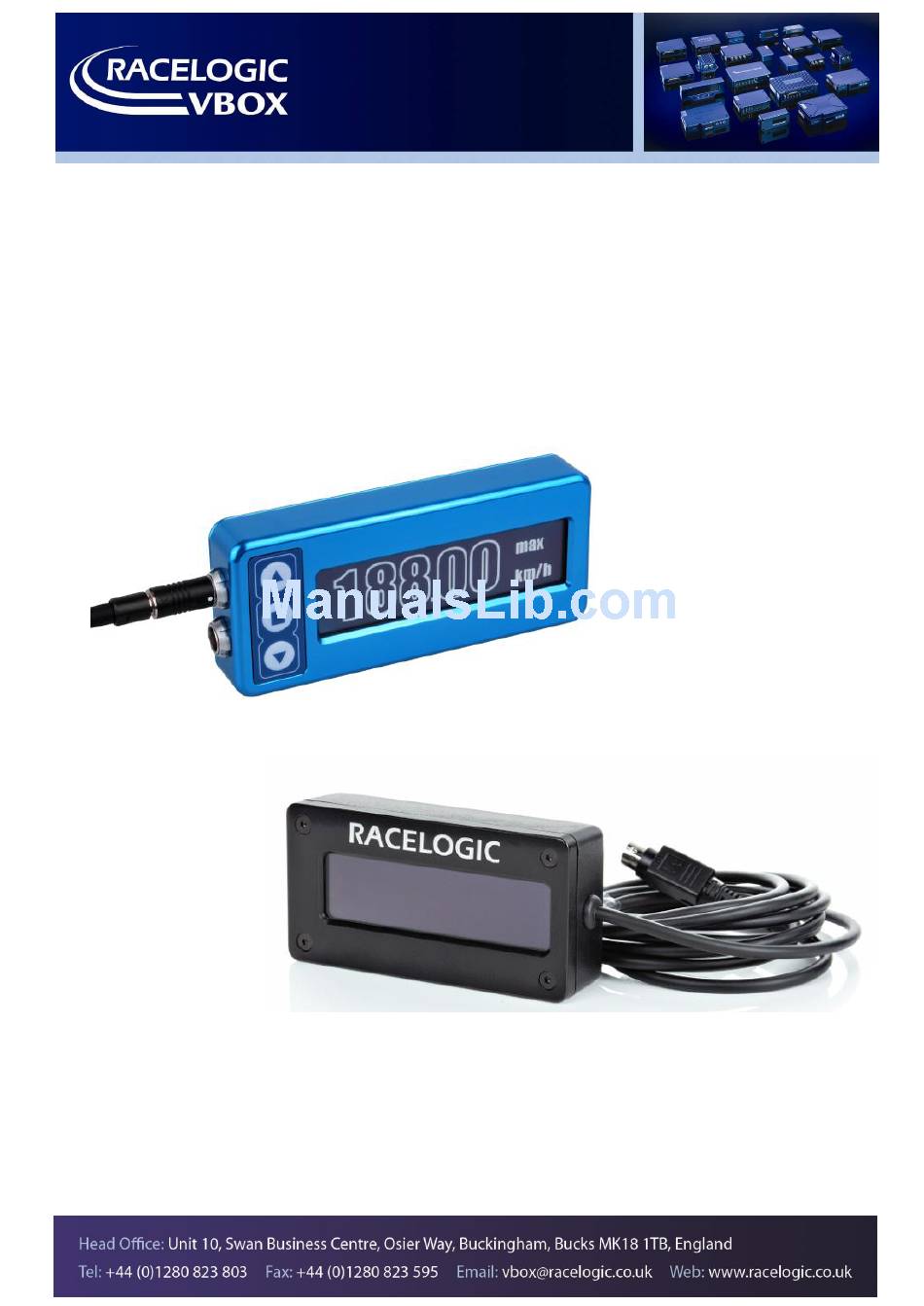

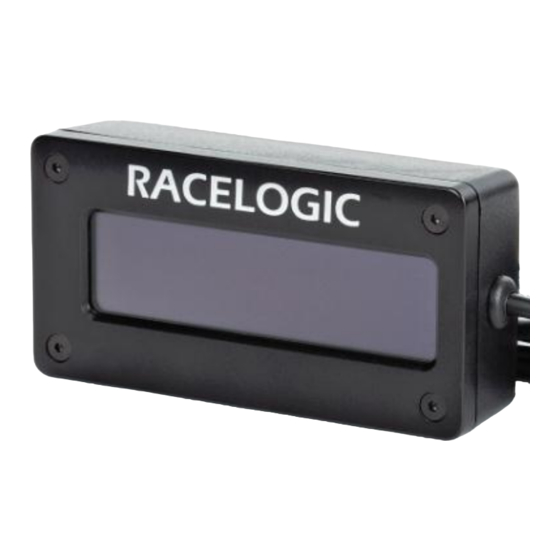

- Page 1 OLED Display Manual OLED DISPLAY INSTRUCTION MANUAL (RLVBDSP04, RLVBDSP05–F, RLVBDSP05–L, RLVBDSP05-M and RLVBDSP05–H) RLVBDSP04 RLVBDSP05 - 1 - 12/06/09...
-
Page 2: Table Of Contents
OLED Display Manual Contents OLED Setup ..........................4 Video VBOX Pro / LITE / Waterproof .................. 4 VBOX Micro/ Performance Box Sport ................. 4 VBOX3i/ VBOX3/ VBSX/SL ....................4 Display Modes ........................5 Speed ..........................5 Logging Status ........................5 Max Speed .......................... - Page 3 OLED Display Manual Set Start & Splits ....................... 11 Reset Laptiming Data ......................12 Clear Start & Splits ......................12 Brightness ......................... 12 Invert Screen Colour ......................12 Use Outline Font ....................... 12 Memory usage ........................12 Power Supply ........................12 Upgrading the OLED Display firmware .................
-
Page 4: Oled Setup
OLED Display Manual OLED Setup Video VBOX Pro / LITE / Waterproof When setting up the DSP04 OLED display with a Video VBOX, it is important to connect to the correct port of the OLED display. The OLED display only has a serial connection on the lower connector, with the buttons on the right hand side - as shown in this picture. -
Page 5: Display Modes
OLED Display Manual Display Modes The OLED display has different display modes that are accessed using the up and down buttons. The data displayed on each screen is calculated at all times, even if it is not currently displayed. Speed In this mode the screen will display a large clear speed value to 2 decimal places, including the units, mph or km/h. -
Page 6: Split Line Display
OLED Display Manual Fastest Lap The difference between the new lap time and the best lap time will be shown with a + or – sign. A ‘–’ is shown when a faster than best is achieved and a ‘+’ is shown for a slower than best. Split line display If split lines have been set inside the OLED display then it will display the split time for between 2 and 20 seconds (as configured) when the split line is crossed. -
Page 7: Predictive Lap Timing
OLED Display Manual Predictive Lap Timing To use this, the OLED must have start/finish information set, or an Auto Track-Map element in the VVB scene. Until the start line is crossed, the screen will show ‘Waiting For Start Line’. On the first lap, the OLED will create a reference lap. The reference lap will be replaced with any subsequent quicker lap time. -
Page 8: Setup Menu Options - Menu
OLED Display Manual Setup Menu Options - MENU The OLED display menu is accessed by pressing the button when the ‘Menu’ screen is shown. The menu can be ▲ ▼ navigated with the buttons. Multiple Scene Selection The Video VBOX can store up to 8 user defined scenes. They are loaded by placing them in the root folder of an SD card and inserting them into a VVB. -
Page 9: About
OLED Display Manual About In this section you can find serial numbers and firmware versions installed in the OLED and connected VVB unit. Predictive Lap Timing Settings Bar Range This setting alters the amount of +/- time shown on the bar graph during lap prediction. Either 2, 5, 10 or 30 seconds can be chosen. -
Page 10: Speed Units
OLED Display Manual Speed Units If the button is pressed the OLED display allows the user the ability to select the units of the displayed speed. Highlight the desired measurement type and press to select. Press Press Select Exit Press Speed Decimal Places... -
Page 11: One Shot Mode
OLED Display Manual One Shot Mode This mode is used for timing from a standing start to a finish line – e.g. sprint racing, hill climbs. When one shot mode is enabled, when the user comes to a stop, after 2s, the screen counts down from 5 then shows ARMED –... -
Page 12: Reset Laptiming Data
OLED Display Manual Reset Laptiming Data When this option is highlighted, pressing the button causes the stored reference lap, lap count and lap times to be reset. Using this option fully resets Predictive Lap Timing mode. Clear Start & Splits When this option is highlighted, pressing the ... -
Page 13: Upgrading The Oled Display Firmware
Plug the 9 way serial connector from the RLACS151/152 into a computer. Press and hold the down button on the OLED (unit oriented with Racelogic text correct way up) while connecting power to the RLACS151/152. This will put the OLED into ‘upgrader’ mode. Double-click on the downloaded firmware file and follow the on screen instructions to complete the upgrade. -
Page 14: Troubleshooting
OLED Display Manual Troubleshooting See below for possible error messages and causes. No serial data being received from VVB. Check scene settings under serial application is set to OLED. Check connector is in corrected into ‘SER’ port on PRO/ ‘DATA’ port on 2CAM/ ‘AUX’ port on LITE. -
Page 15: Connector Assignments & Specifications
OLED Display Manual Connector Assignments & Specifications VBOX OLED Display with Waterproof Aluminium Housing (VBDSP04) Compatibility VBOX 3i, Video VBOX, VBOX 20SX, VBOX 20SL, VBOX 20SL3, VBOX III, VBOX Micro, Performance Box Sport. Choose lead below for correct connection. Unit Connection 2 x Fischer 5w sockets Lead Options Fischer - Fischer lead (RLCAB077) for use with VBOX Micro and Performance Box Sport Fischer –... - Page 16 OLED Display Manual VBOX OLED Display with Splash proof Plastic Housing - LEMO connector (VBDSP05) Compatibility VBOX 3i, Video VBOX, VBOX 20SX, VBOX 20SL, VBOX 20SL3, VBOX III Unit Connection Fixed flying cable (2m) Output Connection LEMO 5W Plug (DSP05 – L), Mini DIN 5W Plug (DSP05 – M), Fischer 5W Plug (DSP05 – F) IP Rating IP64 Operating Temp...
-
Page 17: Contact Details
OLED Display Manual Contact Details Address: Racelogic, Unit 10, Swan Business Centre, Osier Way, Buckingham, Bucks. MK18 1TB United Kingdom Email: support@racelogic.co.uk Web: www.racelogic.co.uk Document Updates Changes Date Init Page Change Draft 30-Apr-09 Draft Version of Document. Additional Screenshots and Firmware upgrade description added. Added extra...
