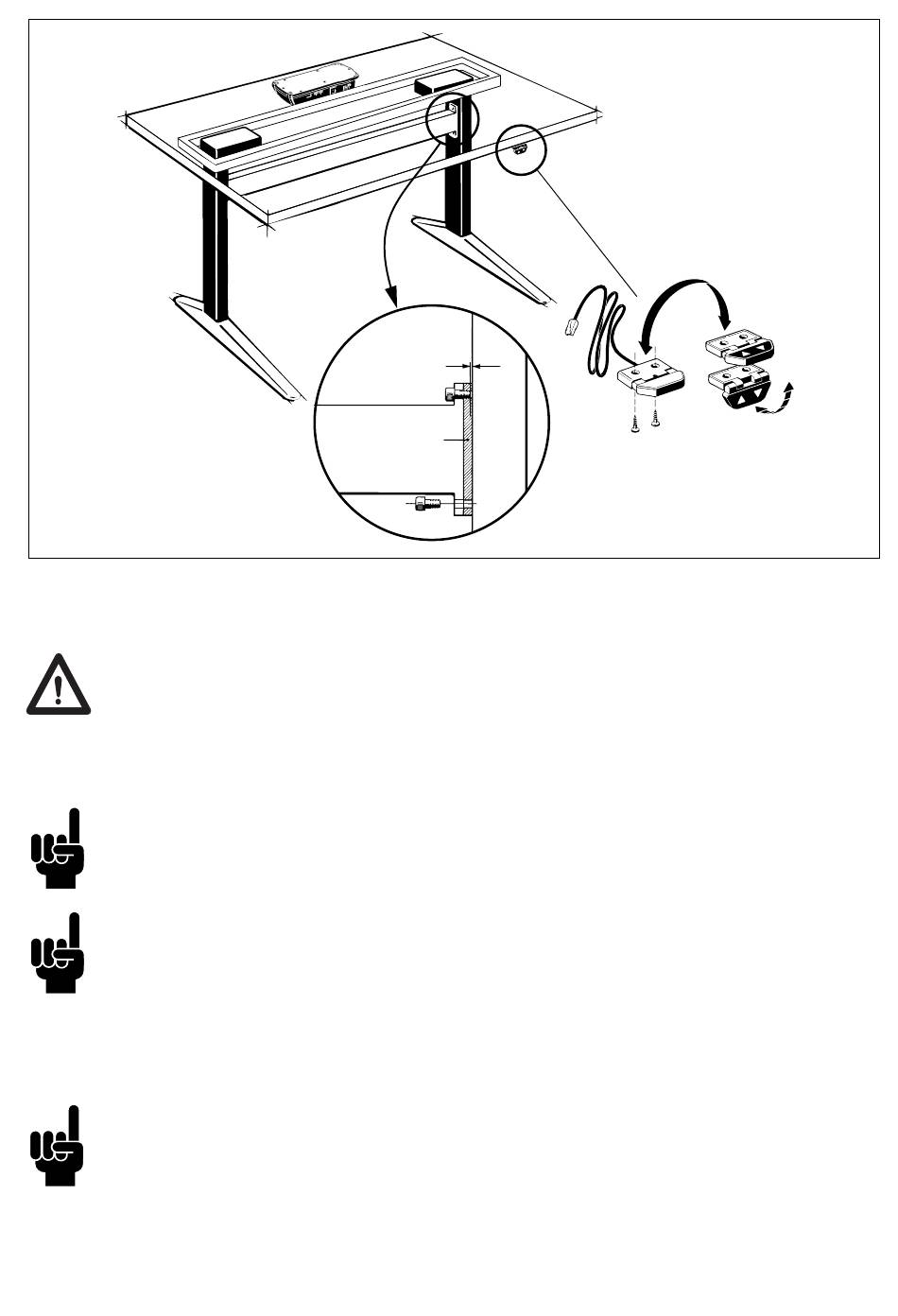

(Example of how to mount a 2 parallel DESKLINE
To avoid damage of the lifting unit there must be min. 1 mm space
between the end of the screw for the mounting bracket and the surface
of the lifting unit (see fi gure 1). The use of any longer screws will come
into contact with the inner parts. This will result in an irregular operation
or even damage the lifting unit.
The DESKLINE
with the motor housing mounted upwards.
Placement of a monitor directly above the motor housing may cause
malfunction of the monitor. Magnets inside the motor may interrupt the
picture on the monitor depending on the distance and type of monitor.
If this is the case the problem may be solved by placing an iron plate/tube
or another magnetic material, somewhat larger than the motor housing,
between the motor, and the tabletop.
The end-stop system in the DB6 is based on a buffer system meaning that
you must be aware of the lengths when initialising. The products must
be able to drive:
Inwards direction: built-in dimension - tolerances – 5 mm
Outwards direction: built-in dimension + stroke length + tolerances + 5 mm
Min. 1 mm
Mounting bracket
Cross bar
Figure 3
® DL5/DL6 system can only be used in push applications
