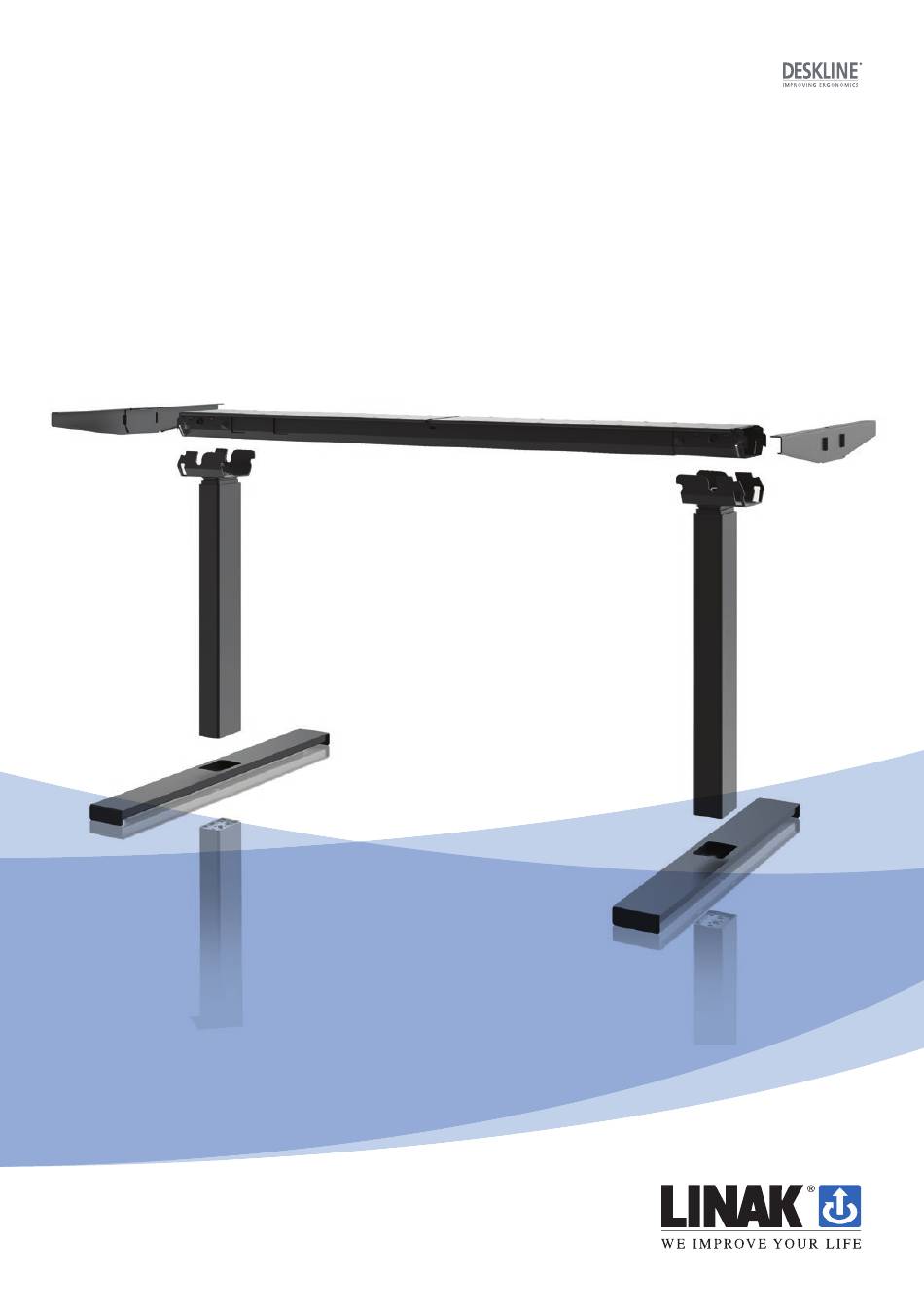

- Page 1 DESK FRAME 2 - DF2 User manual LINAK.COM/DESKLINE Page 1 of 24...
-
Page 2: Table Of Contents
Desk Frame 2 ................9 ® Mounting guidelines for the Desk Frame 2 ................11 Disassembly ..........................17 Accessories and repair ......................... 18 Disposal of LINAK products ......................19 Drawing appendix ........................20 Addresses ............................24 Page 2 of 24... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Before Installation, Re-Installation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 6: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 7: Repairs
John Kling, B.Sc.E.E. Certification and Regulatory Affairs Authorized to compile the relevant technical documentation RoHS mark must be obtained by the manufacturer of the end-use products. LINAK A/S can supply If required, the the required material information on our products. -
Page 8: Misc. On The Deskline ® System
There is a 60 month warranty on Kick & Click systems. Read more about the warranty period of the motorsystems in the standard user manuals found on www.linak.com/deskline. Maintenance Clean dust and dirt off the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 9: Description Of The Deskline ® Desk Frame 2
The DF2 is of the well-known LINAK quality and performance similar to other 3-part columns. As standard, the DF2 features the new anti- collision technology, Desk Sensor™... - Page 10 Disassembly tool Ordering code: 1023W1241. The DF2 is available as a set-packed solution. Beam Cantilevers, Desk Panel, mains cable Columns Feet For the set-packed solution the main components of a DF2 frame are packed in separate boxes meaning that a DF2 frame consists of 4 boxes: •...
-
Page 11: Mounting Guidelines For The Desk Frame 2
Mounting guidelines for the Desk Frame 2 Recommended tabletop: Material Veneered chipboard Plywood Thickness Min. 21 mm (13/16”) Size Min. 700 x 1200 mm (27” x 47”) Max. 1000 x 1830 mm (39” x 72”) Assembling DF2 system 1. Gather all parts for desk including tabletop. 2. - Page 12 4. Mount cantilevers. 4.1. Place a cantilever slightly tilted at end of beam. 4.2. Press cantilever into place until a click is heard and pawls lock cantilever in correct position. 4.3. Mount cantilever in other end of beam. Check that the cantilever is placed correctly and cannot be twisted off the DF2 beam. Do not extract the beam using the cantilevers as handles.
- Page 13 6. Fasten DF2 frame to tabletop using 20 mounting screws as follows: 6.a. 8 screws at ends of beam. Use one of these to fix mains cable to beam with cable clamp creating a cable relief, see step 13. Connect power cable. 6.b.
- Page 14 7.2. Tilt columns and place correctly on beam using guiding notches. 7.3. Fix column to beam by pressing down until a “click” is heard and both pawls lock column in correct position. Check that both pawls are visible after mounting of the columns. Otherwise, remove column and try again (see Disassembly, steps 4 and 5).
- Page 15 9. Connect power cable. Ensure to make a cable relief using the cable clamp when fastening the cable to the tabletop. Page 15 of 24...
- Page 16 10. Mount feet 10.1 Mount feet on columns using eight M6 mounting screws. The DF2L06 columns are supplied with four M6 and two M8 threaded holes. For mounting the feet, always use four M6 or two M8 bolts with the following specifications: Quality: Min.
-
Page 17: Disassembly
Disassembly A disassembling instruction video is available here. For disassembling the DF2, use a disassembly tool (ordering code 1023W1241). Figure 6 Disassembly tool Disassembling DF2 1. Drive desk to its minimum height so columns are completely retracted. 2. Disconnect from mains supply. 3. -
Page 18: Accessories And Repair
® Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 19: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 20: Drawing Appendix
DRAWING APPENDIX Desk Frame 2 Beam Page 20 of 24... - Page 21 Drawing No.: DF2_CANTILEVER_1 SCALE : 3:10 Desk Frame 2 Cantliever SECTION A-A Desk Frame 2 Column (DF2L06) Created By Bjarne Skov 2019-05-14 Modified By Bjarne Skov 2019-05-14 Page 21 of 24...
- Page 22 LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
- Page 23 Page 23 of 24...
-
Page 24: Addresses
Therefore, LINAK cannot guarantee the correct and actual status of said information on its products. While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product.
