- Page 1 DESK FRAME 2 (DF2) User manual LINAK.COM/DESKLINE Page 1 of 24...
-
Page 2: Table Of Contents
Warranty ........................... 10 Maintenance ..........................10 Description of the DESKLINE Desk Frame 2 ................11 ® Mounting guidelines for the Desk Frame 2 ................13 Installation ............................ 14 Disassembly ..........................19 Accessories and repair ......................... 20 Disposal of LINAK products ......................21 Label .............................. -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 5: Intended Use
• Always use the supplied mains cable. • System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 6: Misc
In order to avoid the risk of malfunction, all DESKLINE repairs must only be carried ® out by authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted. Lifting units under warranty must also be returned to authorised LINAK workshops. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experi- ence and knowledge if they have been given supervision or instruction concern- ing use of the appliance in a safe way and understand the hazards involved. -
Page 8: Manufacturer's Declaration
Manufacturer’s declaration DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK DESKLINE products as characterized by the following models and types: ® Control Boxes CBD6S Linear Actuators DB5, DB6, DB14, LA23, LA31... -
Page 9: Declaration Of Conformity
EN 60335-1:2012+AC:2014+A1:2019+A2:2019+A11:2014+A13:2017+A14:2019 complies with RoHS2 Directive 2011/65/EU according to the standard: EN 50581:2012 China RoHS mark must be obtained by the manufacturer of the end-use products. LINAK A/S can If required, the supply the required material information on our products. -
Page 10: Misc. On The Deskline ® System
Read more about the warranty period of the motorsystems in the standard user manuals found on www.linak.com/deskline. Maintenance Clean dust and dirt off the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 11: Description Of The Deskline ® Desk Frame 2

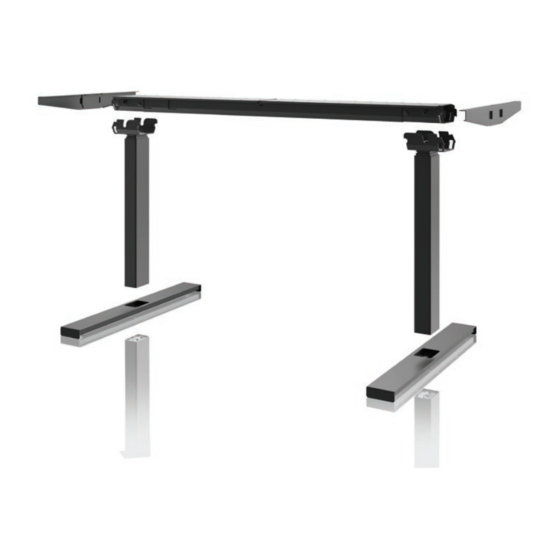

The DF2 is of the well-known LINAK quality and performance similar to other 3-part columns. As standard, the DF2 features the new anti-collision technology, Desk Sensor™... - Page 12 Disassembly tool Ordering code: SA1023W1241. The DF2 is available as a set-packed solution. Beam Cantilevers, Desk Panel, mains cable Columns Feet For the set-packed solution the main components of a DF2 frame are packed in separate boxes meaning that a DF2 frame consists of 4 boxes: •...
-
Page 13: Mounting Guidelines For The Desk Frame 2
Mounting guidelines for the Desk Frame 2 Table size and type The DF2 is designed for T-desks and must be mounted centrally on the tabletop. DF2 mounted centrally on the tabletop Recommended tabletop: Material Veneered chipboard Plywood Thickness Min. 21 mm (13/16”) Size Min. -
Page 14: Installation
Installation Check the packaging and the delivered items for visible damage and ensure that the drive shaft is mounted correctly and not pulled apart. Assembling DF2 system 1. Gather all parts for desk including tabletop. 2. Turn tabletop upside down. 3. - Page 15 4. Mount cantilevers. 4.1. Place a cantilever slightly tilted at end of beam. 4.2. Press cantilever into place until a click is heard and pawls lock cantilever in correct position. 4.3. Mount cantilever in other end of beam. Check that the cantilever is placed correctly and cannot be twisted off the DF2 beam. Do not extract the beam using the cantilevers as handles.
- Page 16 7. Mount columns. 7.1. Ensure columns are completely retracted. If the column extracts when turned upside down, press by hand to completely retracted position. 7.2. Tilt columns and place correctly on beam using guiding notches. 7.3. Fix column to beam by pressing down until a “click” is heard and both pawls lock column in correct position. Check that both pawls are visible after mounting of the columns.
- Page 17 8. Mount desk panel Ensure that only one desk panel at the time is connected to the DF2. 8.1 Connect desk panel in one of RJ45 sockets. 8.2. Fasten desk panel to tabletop using mounting screws. 8.3. Fasten cable to tabletop using two screws and two cable clamps. 9.
- Page 18 10. Mount feet 10.1 Mount feet on columns using eight M6 mounting screws. The DF2L06 columns are supplied with four M6 and two M8 threaded holes. For mounting the feet, always use four M6 or two M8 bolts with the following specifications: Quality: Min.
-
Page 19: Disassembly
Disassembly A disassembling instruction video is available here. For disassembling the DF2, use a disassembly tool (ordering code SA1023W1241). Figure 6 Disassembly tool The disassembly tool has ridges on one side. Disassembling DF2 1. Drive desk to its minimum height so columns are completely retracted. 2. -
Page 20: Accessories And Repair
LINAK customer using any LINAK product. LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. -
Page 21: Disposal Of Linak Products
Disposal of LINAK products As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 22: Drawing Appendix
DRAWING APPENDIX Drawing No.: DF2_BEAM SCALE : 7:50 Desk Frame 2 Beam Min. 1018 Max. 1618 Min. 1150 Max. 1750 417.4 Minimum adjustment is 100 mm (to keep the power plug accessible),otherwise it can be adjusted in step of 50 mm 329.5... - Page 23 Drawing No.: DF2_CANTILEVER_1 SCALE : 3:10 Desk Frame 2 Cantliever SECTION A-A Drawing No.: DF2_DL6PLUS__WITHOUT_BRACKET SCALE : 1:5 Desk Frame 2 Column (DF2LS06 Standard) 1167 4 517 3 4xM6 Created By Bjarne Skov 2019-05-14 2xM8 Modified By Bjarne Skov 2020-01-30...
- Page 24 Desk Frame 2 Column (DF2LS06 BIFMA) DF2LS19 Standard Page 24 of 24...
-
Page 25: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
