Mounting guidelines CBD4/CBD5

The control box is to be fastened with 4 screws (3 screws for CBD5) with a head
diameter between ø 8 and ø 10 mm. Out of regard for the tension surface ø
10 mm is preferable. See drawing appendix for placing of mounting holes and
the space the CBD takes up.

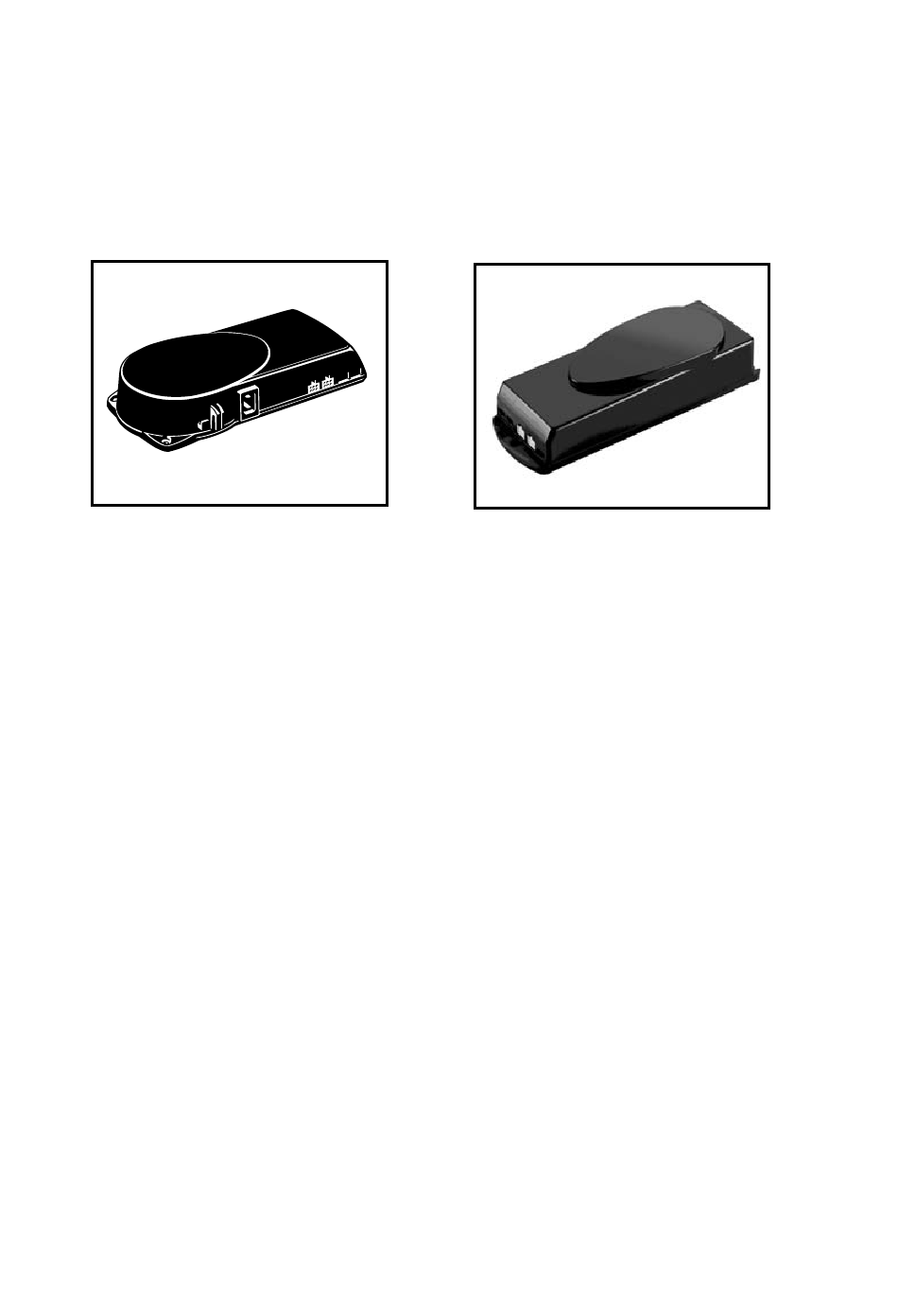

CBD4 - Control box
The CBD must not be packed in heat insulating material, but must be placed
so that it can emit waste heat into the surroundings. There are no ventilation
holes to consider, the CBD emits heat through the surface.
The plug must be visible when the CBD is mounted so that the supply to the
CBD can be disconnected at replacement, if any.
The mounting screws on the control box must be fastened with a max. torque
of 1 Nm.
The mounting surface to which the control box is attached should have a sur-
face evenness of better than ± 0.5 mm.
For mounting and operation of the desk panel, please see the separate user
manual for desk panels.
10
CBD5 - Control box
