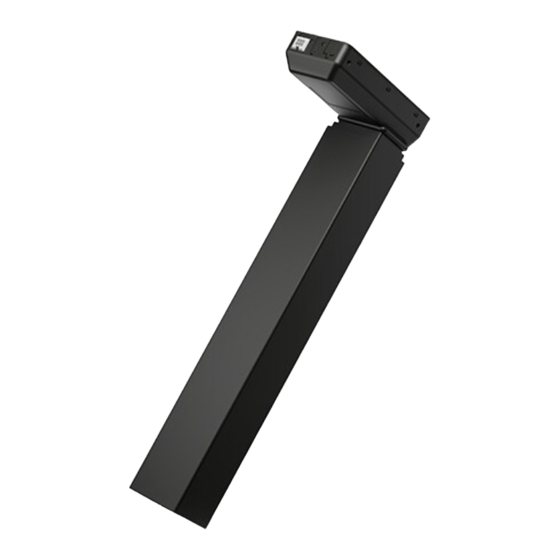

Summary of Contents for Linak DESKLINE DL21
- Page 1 DL21 with CBD6S User manual LINAK.COM/DESKLINE Page 1 of 29...
-
Page 2: Table Of Contents
Initialisation of the DESKLINE DL21 parallel systems ............18 ® Anti-Collision ..........................19 PIEZO description (optional) ....................20 Accessories ..........................21 Disposal of LINAK product ......................22 Labels ............................23 Drawing appendix ........................24 Addresses ............................29 Page 2 of 29... -
Page 3: Preface
This User Manual does not address the end-user. It is intended as a source of information for the manufacturer of the equipment or system only, and it will tell you how to install, use and maintain your LINAK electronics. It is the responsibility of the manufacturer of the end-user product to provide a User Manual where relevant safety information from this manual is passed on to the end-user. -
Page 4: Valid For
Valid for: This User Manual is valid for the following products: (See the first 3 - 5 characters on the label) Columns: 1 single DL21 or 2 in parallel Control boxes: CBD6S 200 W, CBD6S 300 W Controls: DPF1M/DPG1M/DPG1B (if memory function is required) DP1CS/DPT/DPF1C/DPG1C (if memory function and display is required) or DPA/DPB/DPH/DP1K/DPF1K/DPG1K (if only up/down is required) or DPF1D (if display is required). -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being destroyed. -
Page 6: Before Installation, Reinstallation Or Troubleshooting
• System connection. The individual parts must be connected before connecting the control box to the mains. See the User Manual for LINAK actuators, if necessary. During operation • If the control box makes unusual noise or smells, switch off the mains voltage immediately. -
Page 7: Only For Eu Markets
Only for EU markets This appliance can be used by children aged from aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Repairs
Products under warranty must also be returned to authorised LINAK service centres. Further information on DESKLINE warranty can be found on the LINAK website www.linak.com/warranty. Warning! If any of the DESKLINE products are opened, there will be a risk of subsequent malfunction. -
Page 9: Declaration Of Conformity
The RoHS mark is only applicable for the end product. Therefore, it must be obtained by the manufacturer of the end products. LINAK can, however, supply the required material information on our products. ® For more information, visit: https://www.linak.com/about-linak/csr/declarations/ or contact: chemicalcompliance@linak.com Page 9 of 29... -
Page 10: Misc. On The Deskline ® Dl21 System
Do not bolt the legs to the floor so that free movement is prevented. This could cause serious damage to the legs in fault situations. Warranty This DESKLINE product is subject to warranty pursuant to the terms of LINAK DESKLINE Warranty Paper, available on the LINAK website www.linak.com/warranty. Maintenance Clean dust and dirt on the outside of the system at appropriate intervals and inspect them for damage and breaks. -
Page 11: Etl-Markering
ETL-marking Due to space limitations, the complete ETL-marking demands are not represented on the marking plates. The full ETL Recognized Component markings are shown here. C/N 120690 Conforms to UL962 Cert. to CSA Std. C22.2 No. 68-09 ETL Recognized Component mark for Canada and United States C/N 9901916 Conforms to UL962... -
Page 12: Description Of The Deskline ® Dl21
Description of the DESKLINE DL21 ® Each DESKLINE DL21 lifting unit is equipped with a motor, and parallel/memory drive is ensured by means of software in the ® CBD6S (SMPS) that also takes account of oblique load on the desk. Soft start and stop are also part of this software, which ensures a soft start and stop when adjusting the desk. -
Page 13: Installation
Tests with fixing the motor housing using only four M6 screws have proved that the torsional stability of the desk this is insufficient. LINAK recommends using the DL21 DESKLINE system in push applications with the motor housing mounted ®... -
Page 14: Mounting The Feet
Mounting the feet The DL21 bottom plate is supplied with four M6 and two M8 threaded holes. 1. Mount the feet on the column bottom using four M6 or two M8 screws with the following specifications: Quality: Min. grade 8.8 Length: Min. -
Page 15: Mounting Of The Tabletop
Mounting of the tabletop The sound from the lifting column spreads as vibrations to the tabletop which amplifies the sound. This can, however, be reduced. 1. Place vibration/shock-absorbing material between tabletop and top frame. Assembled desk Placing the monitor Placement of a monitor directly above the motor housing may cause malfunction of the monitor. Magnets inside the motor may interrupt the picture on the monitor depending on distance and type of monitor. -
Page 16: Mounting Guidelines Cbd6S (Smps)
Mounting guidelines CBD6S (SMPS) The control box is to be fastened with 2 screws with a head diameter of 10 mm (8 to 10 mm can be used). With regard to the tension ø 10 mm is preferable due to a lower surface tension. See drawing appendix for placing of mounting holes and the space the CBD takes up. -
Page 17: Electric Connection Of The Dl21 System
Electric connection of the DL21 The DESKLINE DL21 is to be connected as shown on figure 5. Each DL21 is to be connected to the sockets on the control box ® by means of the motor cables, which have a 6-pin plug in each end. Finally, the mains cable is to be mounted and power switched on. -
Page 18: Initialisation Of The Deskline ® Dl21 Parallel Systems
Initialisation of the DESKLINE DL21 parallel systems ® The DESKLINE system is intialised by pressing the down button once or twice and holding it down until DL21 runs into end stop, it will then automatically run approx. 3 mm out again and hereafter slowly run in again. Only release the down button when the movement has stopped completely. -
Page 19: Anti-Collision
Anti-Collision The function (Anti-Collision) is an option for the standard CBD6S (SMPS) control box. A system with Anti-Collision can limit material damages to a desk if a collision with a solid object should occur. Enabling the anti-collision To enable the Anti-Collision function a little plug called a dongle must be mounted in one of the 2 control ports. The function is only active when the dongle is mounted. -
Page 20: Piezo Tm Description (Optional)
PIEZO™ description (optional) For optimised safety against squeezing and blocking on a desk, LINAK has developed DL columns with an integrated sensor, called PIEZO. The option minimises the risk of damage to a desk caused by squeezing or blocking of obstacles in up and down direction. -
Page 21: Accessories
Please contact your nearest LINAK contract, distributor or subsidiary. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. Spare parts Please contact your nearest LINAK contact for information on spare parts. Page 21 of 29... -
Page 22: Disposal Of Linak Product
Disposal of LINAK product As LINAK customers often ask us how our products can be disposed or scrapped we have prepared this guide that enables a classification to different waste fractions for recycling or combustion. Guide We recommend our products to be disassembled as much as possible and divided into different waste groups for recycling or combustion. -
Page 23: Labels
Labels Label for DL21 Label for CBD6S 300W (SMPS) Label for CBD6S 200W (SMPS) up to 4 channels Page 23 of 29... -
Page 24: Drawing Appendix
DRAWING APPENDIX DL21 All measurements are without powder coating. Version Combination code B (Built-in length) [mm] S (Stroke length) [mm] O (Outer profile length) [mm] DL21xxxxxx650560 BIFMA DL21xxxxxx665518 DL21 built-in length, stroke length, and outer profile length (mm) Page 24 of 29... - Page 25 DL21 motor housing and profile dimensions (mm) Motor housing Bottom plate DL21 dimensions (mm) Page 25 of 29...
- Page 26 DL21 Bracket options Combination code Bench left Bench right DL21xxLxxxxxxxxx DL21xxRxxxxxxxxx Bracket options (dimensions in mm) Sockets Combination code Type DL21xxxxxxxxxxxx Standard Standard Page 26 of 29...
- Page 27 Profile designs Without trim rings With trim rings CBD6S 200W (SMPS) Page 27 of 29...
- Page 28 CBD6S 300W (SMPS) up to 4 channels LINAK APPLICATION POLICY The purpose of the application policy is to define areas of responsibilities in relation to applying a LINAK product defined as hardware, software, technical advice, etc. related to an existing or a new customer application.
-
Page 29: Addresses
® without prior notice. LINAK cannot guarantee product availability and reserves the right to discontinue the sale of any product. The user is responsible for determining the suitability of LINAK products for a specific application. All sales are subject to the ‘Standard Terms of Sale and Delivery’, available on LINAK websites.
