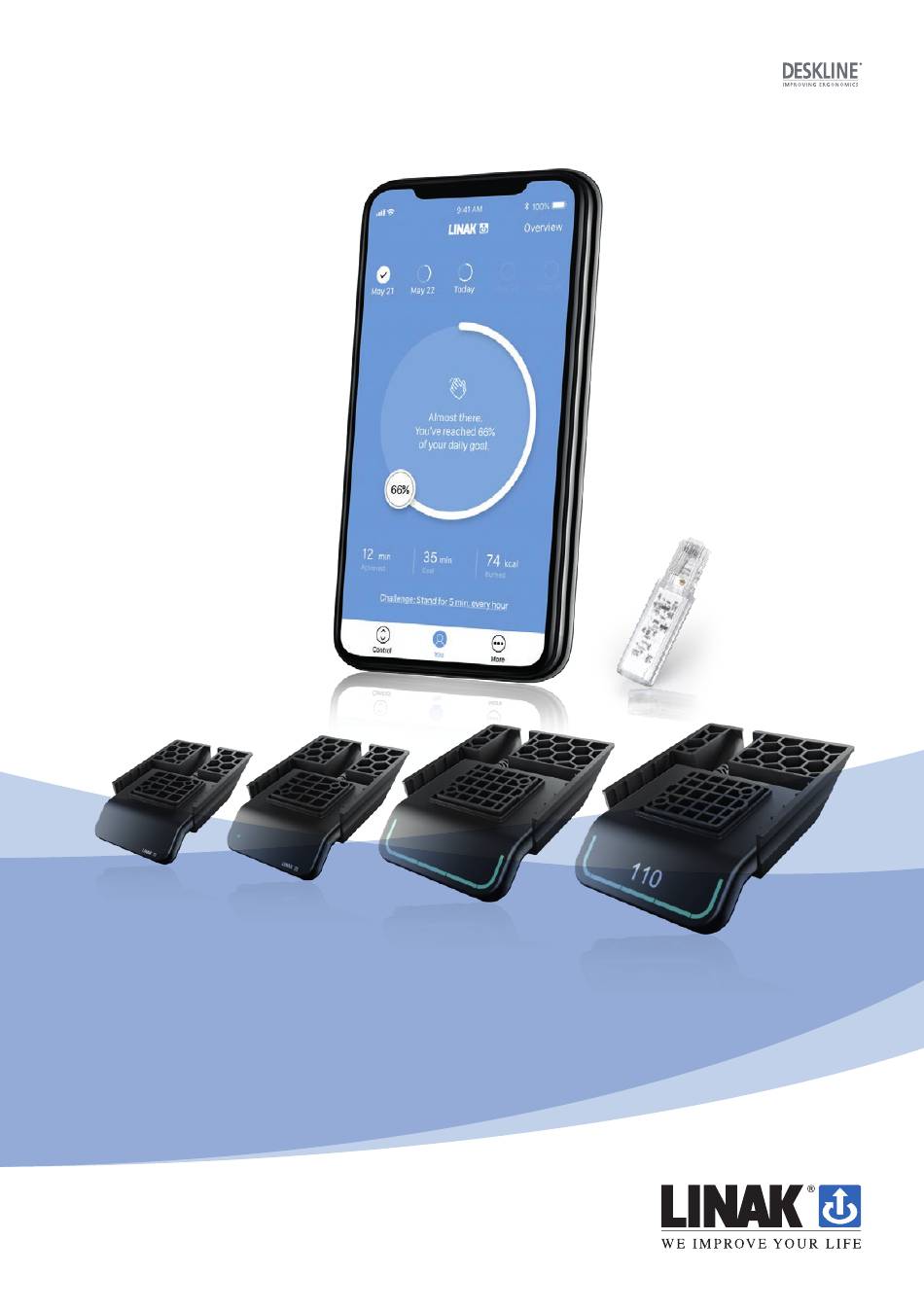

- Page 1 Desk Panels DPG and Desk Control User manual LINAK.COM/DESKLINE Page 1 of 76...
- Page 2 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
- Page 3 DPG1M The DPG1M has three operation buttons. Figure 7: DPG1M operation buttons Each button has a specific function: Symbol Description Function Reminder Setting reminders Bluetooth Connecting the Desk Control App via Bluetooth wireless technology ® ® Favourite Saving favourite positions Operate the desk panel by tilting it.
- Page 4 Favourite positions Saving favourite positions 1. Adjust desk to a preferred position. 2. Press button for two seconds. Figure 10: Saving favourite positions The LED flashes white two times to indicate that saving the position is in progress. Not until the LED becomes static white, has the position been saved.
- Page 5 Driving to favourite positions After saving the favourite positions, the user can reach the positions simply by tilting/pressing the DPG1M. 1. Tilt/press and hold - when a saved position has been reached, the desk stops. 2. Release DPG1M within one second. This way the user can easily change between sitting and standing height without looking at the DPG1M in the meantime.
- Page 6 Erasing favourite 1. Press the button for eight seconds to erase all saved favourite positions. The LED flashes red when all the favourite positions are erased. Figure 13: Erase favourite positions Bluetooth ® Connecting Bluetooth ® 1. Download Desk Control™ App suited for your device in App store or Google Play. Search for Desk Control and look for the app icon: 2.
- Page 7 Reminder The reminder LED is placed in the lower left corner of the DPG1M. The LED is intended to indicate the position of the desk (sitting or standing height). The indication depends on the reminder interval chosen. While the user is sitting for an appropriate amount of time according to the set interval, the LED calmly pulsates green.
- Page 8 Reminder intervals The LED lights up in three different intensities each representing an interval. The three standard intervals are: - Interval 1: Reminder after 55 minutes sitting - Interval 2: Reminder after 50 minutes sitting - Interval 3: Reminder after 45 minutes sitting The default interval is reminding after 55 minutes, which means the LED lights up in the weakest intensity.
- Page 9 Key lock The operation of the DPG1M can be locked to prevent unintended driving of the desk. As default the key lock is disabled. If enabled, it automatically locks the DPG1M after a configured amount of time. The key lock function can also be configured to indicate attempt to operate the locked DPG1M by showing a red light.
