a s i
i r o le n o i d n sTall aTi o n
Lockout/Tagout the tool, TigerRack, and air supply before installation.
1. Determine which of the tool's air lines is the "IN" line.
2. Disconnect the "IN" line, and measure it's outside diameter. If the
diameter is neither 6mm nor 4mm, supply the appropriate sized M5
fittings for the air line.

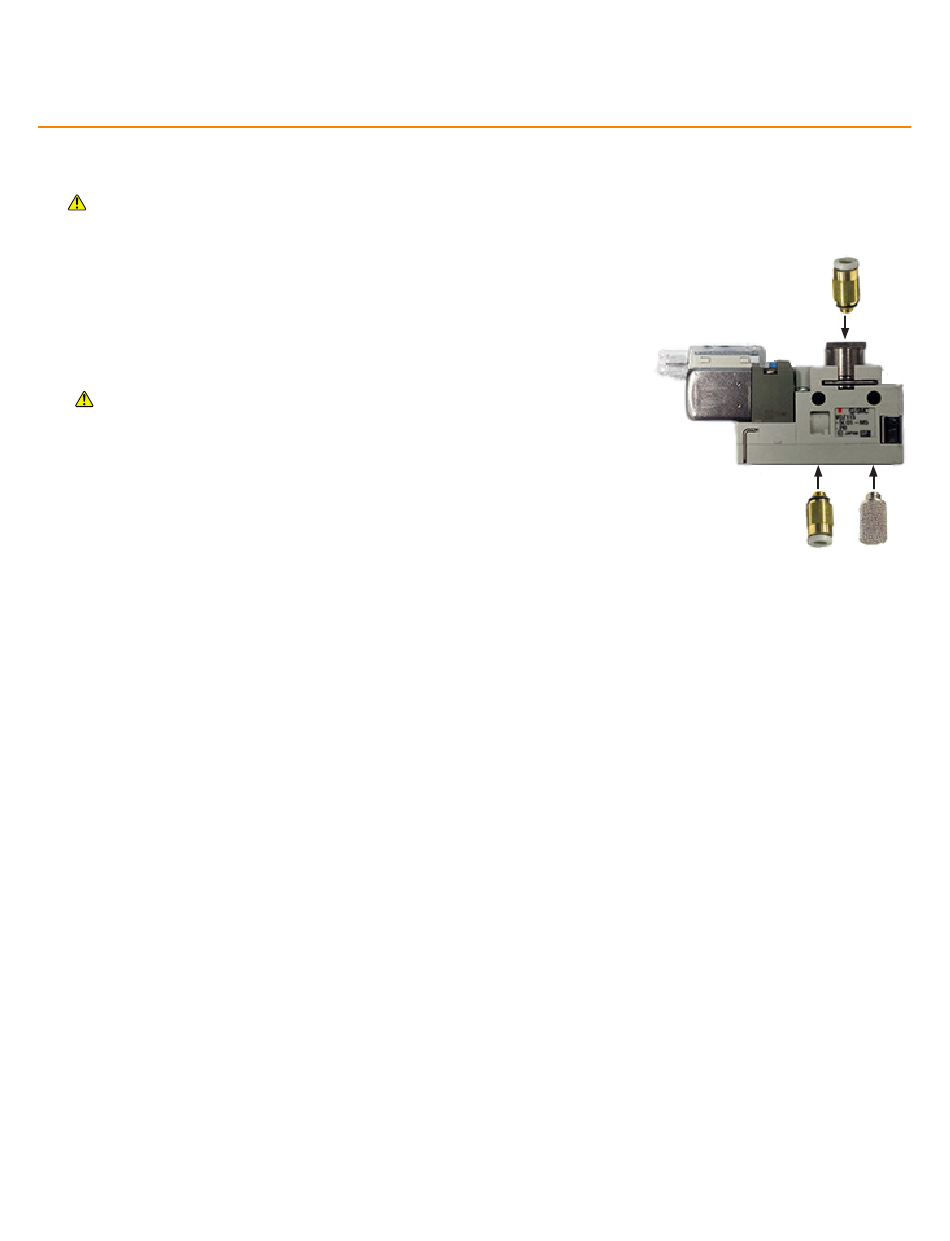

3. Attach the appropriate M5 fittings and Exhaust Muffler to the Air
Solenoid.
Before proceeding to the next step, ensure the SIK cable can reach the
Amplifier and the Red & Black wires' plug can reach the desired Air
Solenoid location.
4. Cut the tool's "IN" air line and attach the supply side to the Air
Solenoid's intake, next to the Exhaust Muffler. Attach the tool side to the
outflow on the opposite side of the Air Solenoid.
5. Connect the Red & Black wires' plug on the SIK cable to the Air
Solenoid.
TigerRack Installation
11
"OUT" Air
"IN" Air Muffler
