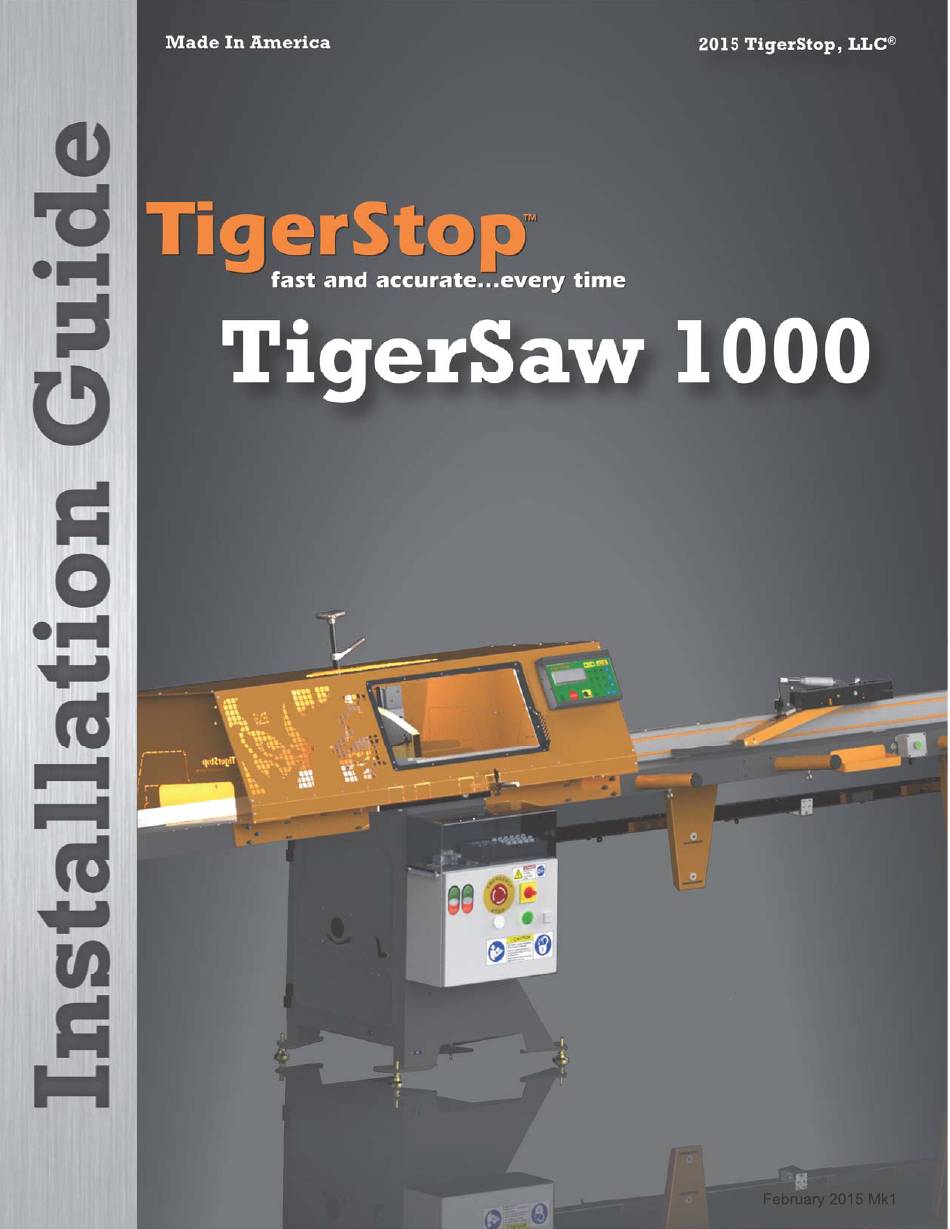

TigerStop TigerSaw 1000 Installation Manual

Hide thumbs Also See for TigerSaw 1000:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TigerSaw 1000 and is the answer not in the manual?

Questions and answers

Related Manuals for TigerStop TigerSaw 1000

Summary of Contents for TigerStop TigerSaw 1000

  • Page 3: Table Of Contents

    Top Cap Travel Adjustment..........................47 Printer Adjustments............................48 UV Sensor Adjustment.............................48 Infrared Length Sensor Adjustment........................49 Pusher Foot Height Adjustment........................50 Kill Line Tension Adjustment..........................50 Maintenance and Troubleshooting........................51 TigerSaw 1000 Maintenance Schedule.......................55 Maintenance Log..............................56 TigerSaw Troubleshooting..........................57 Appendix A: Factors Affecting Cut Quality...................... 58...
  • Page 4 FOUR IMPORTANT CAUTIONS: 1. Do not randomly drill and tap holes in the TigerStop fence beam for mounting or for any other purpose. This might damage the drive system. All fastening or attachment to the fence beam MUST be made by inserting T-bolts or T-nuts WITH washers! 2.
  • Page 5 Do not operate with guards removed. Keep the work area clean and well-lit to avoid accidental injury. Do not use TigerStop in a dangerous environment.

  • Page 6: Safety

    Safety Please follow these basic safety guidelines. This list is in no way complete as every environment and shop is different. •Always treat TigerSaw and all power tools with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor quality of cut. •Always keep work area clean, clear of dust and debris and free of objects that could cause accidents, damage to the machine or personal injury.
  • Page 7 Warning Label Locations Saw Control Box Front Saw Control Box Side Always follow proper lock out/tag out procedures before attempting to service or clean TigerSaw. The “Suggested Lockout Procedure” safety sticker can guide you through the lock out/tag out process.
  • Page 8 TigerSaw Cap Guard TigerSaw Guard Back...
  • Page 9 TigerSaw Guard Sides...
  • Page 10 TigerSaw Blade Access Door In Feed and Out Feed Table...
  • Page 11 Pusher Foot...

  • Page 12: Installation Requirements

    230VAC 3 Phase 40 amps TigerSaw 1000 needs to have its own dedicated circuit. No other equipment or devices should be on the same circuit. WARNING! Do NOT use a high leg delta circuit to power the TigerSaw 1000 system! If you are not sure what kind of circuit you are using, STOP! Have a qualified electrician confirm the main power circuit.

  • Page 13: Dust Extraction

    •Proper duct extraction must be used or print quality may be affected. Minimum Material Size When using the TigerSaw 1000 crayon marking system, the minimum material thickness is .250 inch and the minimum material width is 1 inch.

  • Page 14: Unpacking Saw Body

    Unpacking Saw Body Unpack the Saw Body 1. Remove the screws that hold the saw legs to the pallet. Note: The saw body is designed to be lifted with a pallet jack or a fork lift. You can position the forks to pick up the saw body from the side, as shown.
  • Page 15 1. Assemble table legs.
  • Page 16 2. Attach the out feed table top to the assembled table legs. 3. Attach the table to the saw body. 4. Assemble the in feed table. Note: When joining two tables together, use the table leg bracket to connect them.
  • Page 17 5. Attach the back fence to the out feed table. 6. Attach the material staging tubes to the in feed table.
  • Page 18 Note: Position the tubes at regular intervals on the in feed table. 7. Attach the crayon tray to the in feed table. Note: The crayon tray attaches to the table using 4 powerful magnets. This can be mounted on the face of the in feed table, anywhere that is convenient for the operator.

  • Page 19: Tigerstop Installation

    Note: Position the universal brackets at regular intervals on the in feed table. 3. Attach TigerStop to the in feed table. Slide the T-bolts into the T channels on the TigerStop. Note: For more information about TigerStop installation, see the TigerStop installation guide at www.tigertamer.com.
  • Page 20 Attach the Cable Trough to the Legs The cable trough will attach to the table leg brackets in the back of the in feed table as shown below. Note: Each cable trough support will attach to the other leg brackets in the same way. 1.
  • Page 21 Note: Use a helper to support the cable trough until installation is complete. 4. Attach the support bracket to the bottom tightening bolt. Attach Pusher Foot to TigerStop 1. Attach the flip away stop to the TigerStop carriage. Note: Ensure the nylon washers are between the flip away and the carriage.
  • Page 22 2. Attach the flip away rod and locking nuts to the flip away stop. 3. Attach the black pusher foot mount to the flip away stop. Note: Pusher foot hardware is found in the pack labeled “Pusher Accessory Hardware”.
  • Page 23 4. Attach the pusher foot assembly to the pusher foot mount. 5. Lay the cable track into the cable trough and attach the track to the trough. 6. Attach the cable track to the flip away stop.
  • Page 24 7. Attach the Printer Stand. M8 X 35...
  • Page 25 Guard Installation Guard hardware is found in the pack labeled “Stationary Guard Hardware”. 1. Install the front guard bracket. 2. Attach the guard back. 3. Lower the guard top into position.
  • Page 26 4. Attach the guard top to the front guard bracket. 5. Attach the guard top to the guard back. 6. Attach clamps to the saw table through the saw guard.
  • Page 27 7. Attach the clamping lever and the height adjustment wheel to TigerSaw. 8. Attach the right and left guard sides. 9. Attach the back plate to the guard back.
  • Page 28 Attach the Kill Line Switch The kill line switch will attach to the saw guard. Kill line hardware is found in the pack labeled “Kill Line Hardware”. 1. Mount the kill line switch to the under side of the front bracket as shown. Set the cable aside until we make the final connections.

  • Page 29: Final Connections

    2. You will have two controller cables. Locate the first controller cable. 3. Plug the silver end of one controller cable into the I/O panel plug labeled “Controller”. 4. Plug the opposite end of this controller cable (black) into the TigerStop controller. 5. Locate the second controller cable.
  • Page 30 Goes To Cable Color Number of Pins Prt Trig I/O plug “Print Trig” Gray Printer I/O Panel I/O plug “Printer” Beige TigerStop motor box Gray Printer Printer head data port Gray 8 (RJ-45 connector) Pnt Power Printer head power port Black...

  • Page 31: Setup

    Setup Setup First power up After installation is complete, you are ready to power up TigerSaw 1000. To do so, ensure all of the safety interlocks are in position and reset. Guard Door Ensure the guard door is closed tightly.
  • Page 32 Note: TigerStop will now move to its farthest possible location. Ensure the deck is clear! 4. When finished, TigerStop will display the Ready Screen. The Ready Screen is the starting point for all TigerStop functions. Lets take a look at the screen, line by line.
  • Page 33 2. Press [Start] to start the routine. Note: TigerStop will now move all the way to its maximum and minimum limits. Ensure the deck is clear. 3. When the routine has finished, TigerStop will take you back to the setup menu.
  • Page 34 Set the Load Offset The load offset is a global parameter that applies to all push and pattern parts lists. Load offset will add to the load position to give the operator more room to load the stock. When using TigerSaw 1000...
  • Page 35 1. Enter the new load offset value. 2. Press the [Done] soft key to save the parameter. Printer Settings If you are using a TigerStop printer, you will need to set the printer settings. If you are not using a printer, skip this section. Printer Type The print type setting is used to tell TigerStop what kind of a printer it has.
  • Page 36 Note: The default password is set to the serial number of the TigerStop. Crayon Crayon turns the TigerSaw 1000 crayon marking system on or off. This setting needs to be set to on for the crayon marking system to function.
  • Page 37 Note: The default password is set to the serial number of the TigerStop. Pusher Foot Offset PF offset is the distance from the end of the pusher foot to the IR sensor on the TigerSaw 1000 crayon marking system. 1.At the Menu Select screen, press the button to access the sec- ond menu screen.

  • Page 38: Basic Tigerstop Operation

    Note: The default password is set to the serial number of the TigerStop. Basic TigerStop Operation Manual Movement To manually move TigerStop to a stop position, you must enter the length you want TigerStop to go to. This length can be entered as a decimal or a fractional value. Entering Decimals 1.Start at the Ready Screen.

  • Page 39: Calculator

    3. To jog, press and hold one of these buttons. Note: If the jog buttons move TigerStop in the wrong direction, you can use the ‘Jog Reverse’ setting in the ‘Setup’ menu to reverse the movement. Increment The increment function is a push feed mode used to step TigerStop through a series of movements.

  • Page 40: Preset

    For this example, I am going to use an increment size of 2 in. 4.The current position is 42. If that is where you want to start, press [Start] to begin incrementing. If you need to move TigerStop, enter the position and press [Start]. TigerStop will move to position. Then press [Start] to begin incrementing.
  • Page 41 3.Enter the preset number you wish to use. Then press [Start]. For this example I will use preset 1. 4.TigerStop will move to the preset position. Delete Preset 1.Start at the Ready Screen. Press the [Show] soft key to display more options.

  • Page 42: Quick Calibration

    3.Enter the length of the sample piece. Press the [Done] soft key. For this example I have measured 33.935 as my cut length. 4.TigerStop is now calibrated. To download the complete TigerStop operation manual, visit our website www.tigertamer.com. Basic TigerSaw Operation Power Up TigerSaw Once all the interlocks are reset, the green “Safety Chain”...

  • Page 43: Setting The Clamps

    2. TigerSaw will send the pusher foot forward to the load position. Marking Defects TigerSaw 1000 uses UV crayon marks to locate defects on the material. It will then cut out these defects while it is processing parts from the parts list.

  • Page 44: Using Defect Only Mode

    Note: Once the pusher foot has cleared the loading zone, you can place another marked material on the table and press [Start] to queue the board. Once TigerStop is finished cutting, it will automatically start scanning the queued board. 11. Continue in this fashion until the parts list is complete Using Defect Only Mode Defect only mode allows you to defect material, without cutting parts from a parts list.

  • Page 45: Using Panel Optimization Mode

    The panel optimization feature allows the user to quickly process panel stock for cabinet doors, while defecting at the same time. Once the total width needed is entered, TigerSaw 1000 will cut the proper number of parts to fulfil the needed width.
  • Page 46 3. Press [B] or [C] to toggle the Quantity setting to Panel. 4. Press the [Done] soft key to save the parameter. Note: The default password is set to the serial number of the TigerStop. Making a Panel Optimization Pusher List 1.Start at the Ready Screen...

  • Page 47: Using Grade 2 Mode

    When using TigerSaw 1000 in crayon marking mode, you can activate grade 2 while making crayon marks. Grade 2 mode will tell TigerStop to only cut defects inside the grade 2 zones. This allows the operator to cut from a cut list and section off a portion of the stock for defecting only, all at the same time.

  • Page 48: Adjustment Points

    You can still mark defects in grade 1 and TigerSaw will continue to cut parts inside of Grade 1. You may also enter and leave Grade 2 at any time on the material. Adjustment Points Pneumatic adjustment points The pneumatic system has adjustments for the air pressure to the system, as well as a number of flow adjustment points that can determine the cycling speed of the saw.

  • Page 49: Saw Blade Adjustment Points

    Adjusting Flow to the Pusher Foot Cylinder The TigerSaw 1000 pusher foot uses an air cylinder to raise and lower the foot during operation. This cylinder has flow adjustments on both ports. This will speed up or slow down the pusher foot.

  • Page 50: Top Cap Travel Adjustment

    Warning! Do not take out bolts A and B. Doing so will damage TigerSaw! Adjust Cycle Height TigerSaw 1000 has two sensors mounted to the saw cycle cylinder. The top sensor controls saw cycle height. Ensure TigerSaw is properly locked out/tagged out before performing any adjustments.

  • Page 51: Printer Adjustments

    Printer Adjustments The TigerSaw 1000 evolution ink jet printer has a height adjustment to control the height of the print printer head. It is critical that the printer be as close to the material as possible. Printer Height Adjustment Locking Handle To adjust printer height...

  • Page 52: Infrared Length Sensor Adjustment

    UV Height Adjustment 1. Put a sample piece of material with a UV crayon mark under the UV sensor. Note: A UV crayon mark will light up under the UV sensor. 2. Loosen the two bolts that hold the UV sensor to the pusher foot. 3.

  • Page 53: Pusher Foot Height Adjustment

    To adjust sensitivity... 1. Ensure there is no material under the sensor Note: The IR sensor will make a small red dot on the table. 2. Adjust the dial so that the yellow light is off. 3. Slide a sample piece of material under the IR sensor. 4.

  • Page 54: Maintenance And Troubleshooting

    Maintenance and Troubleshooting Removing the Saw Blade Warning! Do not attempt to open access door with power on.The saw blade access door will lock when power is on. Always follow proper lock out/tag out pro- cedures before attempting to service or clean TigerSaw.
  • Page 55 T-handle wrench. 4. Remove the blade from the saw and replace. Note: TigerStop recommends that you use only TigerStop specified blades. Removing the Saw Belt 1. Remove the back collet and pulley guard. This will expose the pulley assembly.
  • Page 56 2. Loosen the idler pulley bolt and remove belt. Note: Do NOT take bolt all the way out 3. When replacing the belt, pull down on the idler pulley to tension the belt. Changing the Cap Guard 1. Remove the saw guard top Note: For more details, see Guard Installation on page 23.
  • Page 57 Printer Cartridge Replacement Warning! Do not attempt replace the printer cartridge with power on. The guard door will lock when the saw blade is on. Always follow proper lock out/tag out pro- cedures before attempting to service or clean TigerSaw. The “Suggested Lockout Procedure”...

  • Page 58: Tigersaw 1000 Maintenance Schedule

    Pusher Foot Offset Infrared Offset Daily 1. Clean all dust and debris from TigerSaw 1000 table and saw cavity. 2. Check all exposed cabling for damage. 3. Check calibration and calibrate if necessary. 4. Empty the water cup on the main air input.

  • Page 59: Maintenance Log

    Maintenance Log Date Maintenance Performed Drive Test Results MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP= MxN= MxP=...

  • Page 60: Tigersaw Troubleshooting

    Cut parts are not square. shown in “Blade square adjustment”, p.59 Cut quality is poor See Appendix A: “Factors Affecting Cut Quality”. TigerSaw 1000 Crayon Marking Troubleshooting Problem Solution TigerSaw is not seeing crayon marks or not see- Adjust the UV and IR sensors as shown in ing the stock.

  • Page 61: Appendix A: Factors Affecting Cut Quality

    Appendix A: Factors Affecting Cut Quality The quality of your cut can vary from superb to poor depending on many factors. If your TigerSaw cut quality is poor, there are many places to look for the cause of this problem. Sometimes the cause of inferior cut quality is quite simple.
  • Page 62 Another cause of overheating can be a dull blade. Keep the saw blade clean and sharp. TigerStop recommends only using TigerStop specified saw blades. Saw bed and throat plate The throat plate must be perfectly flush and level with the saw bed. The TigerSaw throat plate is very slightly thinner than the depth of the recess for it.
  • Page 63 Throat plate bevel There is a bevel in the throat plate slot on the out feed side of the saw. This prevents the leading edge of bowed or warped material from catch- ing on the slot. However, for some materials, this bevel can be too great and work against precise cut quality, due to waste getting caught in it.
  • Page 64 gauge between the square and saw blade in several places. Factory testing revealed a gap at any point along the saw blade of less than .003” in both directions. For instructions on squaring the saw blade see “Adjustment Points” on page 50. Saw collet The saw collet has a specific orientation and must be mounted on the flange in that orientation.
  • Page 65 When replacing bearings be sure to replace them with bearings obtained from TigerStop. Replace- ment with bearings of a different make or standard can cause poor saw performance and mechanical failure. The tightness of the inner and outer races will affect saw cut quality. The arbor shaft thickness determines the tightness of the inner race, the inner diameter of the housing and the tightness of the outer race.
  • Page 68 FIND US ONLINE AT www.tigerstop.com 12909 NE 95th Stree Vancouver, WA 98682-2426 1.360.254.0661 sales@tigerstop.com TigerStop B.V. Holland 31 546 575 171 info@tigerstop.nl...
