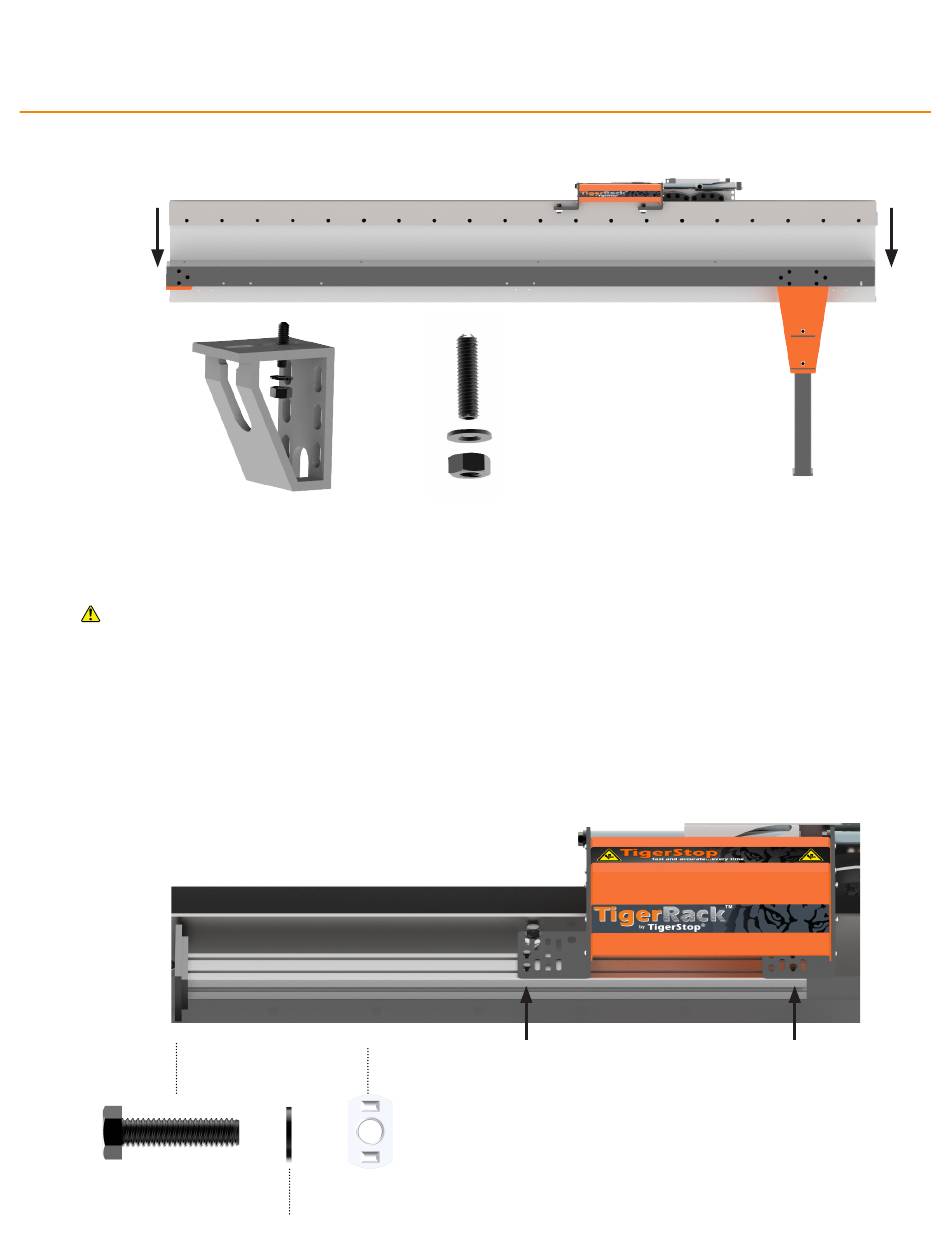

3. Lower TigerRack into position over the Mounting Brackets.
4. Attach TigerRack using the TigerRack Mounting Hardware Pack. The factory pre-inserts T-Nuts into the
mounting slots on the bottom of TigerRack.
5. Remove the eye bolts when attachment is complete. Leave the lifting plates in place.
Do NOT power up TigerRack with the eye bolts in place.
s
p
Tandard
usher
1.
Insert 2 M8 T-Nuts into each slot on the top of the Standard Pusher Foot.
2. Align the Standard Pusher Foot with the mounting points under the Flip-Away Stop. Fasten with M8x20mm
Hex Head Screws and M8 washers from the top.
Bolt
f
i
ooT
nsTallaTion
T-Nut
Washer
TigerRack Installation
2 Mounting
Points
8
2 Mounting
Points
