s
i
Tandard
nTerconnecT

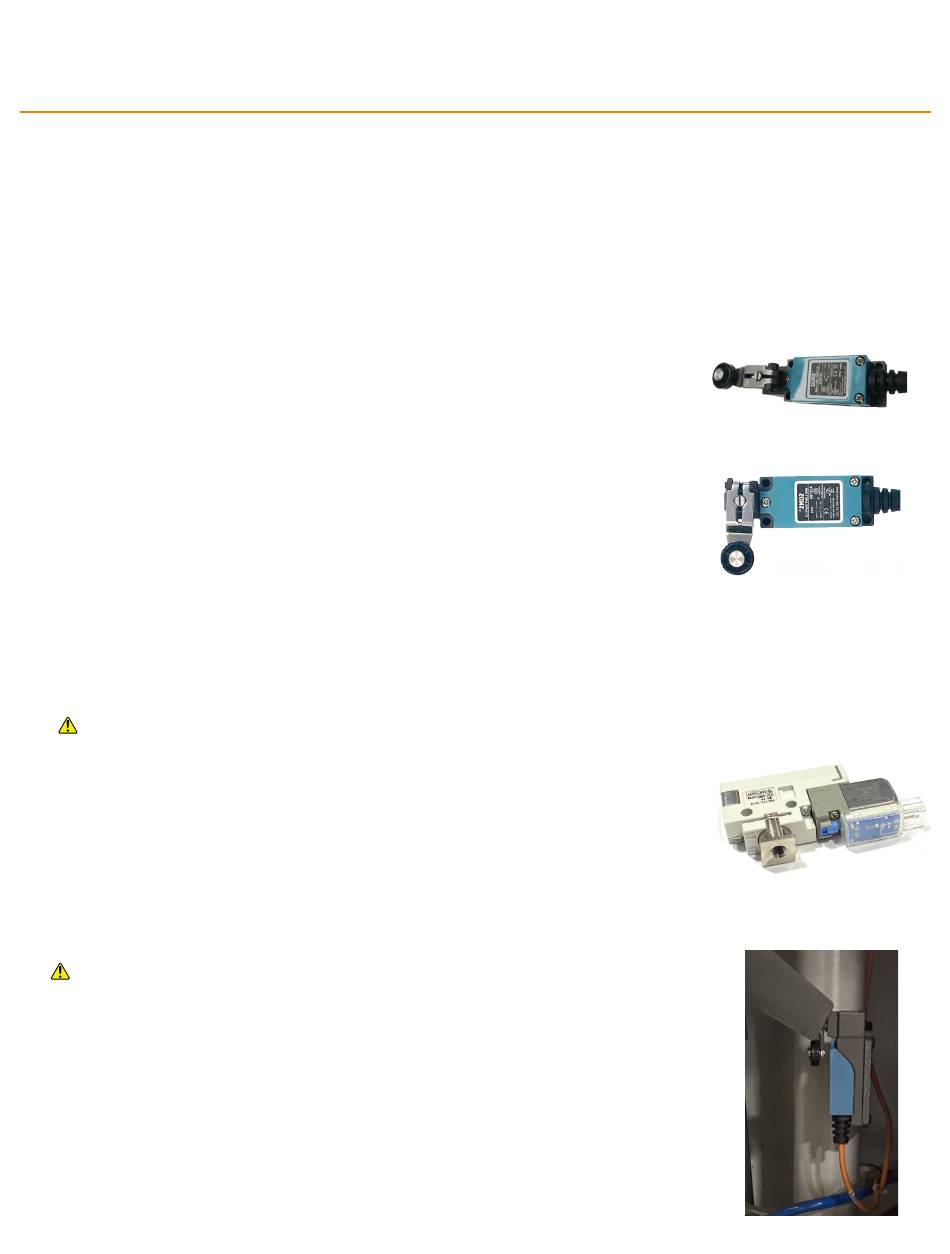

Integrate the tool and TigerRack with the Limit Switch and Air Solenoid to enable safer semi-automatic
operation when running Part Lists.
l
s
f
i m iT
wiTc h
u n cTi o n
The limit switch tells the TigerRack the tool's current status.
Tool Cycling: Opens the Limit Switch and TigerRack cannot move.
Tool at Rest: Closes the Limit Switch and TigerRack is free to move.
a
s
f
i r
o le n o i d
u n cTi o n
The air solenoid cuts the tool's air supply when TigerRack is in motion.
For non-pneumatic tools, the 24V of the Air Solenoid are capable of driving an electronic relay to the same
effect. Some wiring required.
TigerRack in Motion: Closes the Air Solenoid and the tool cannot move.
TigerRack at Rest: Opens the Air Solenoid and the tool is free to move.
l
s
i
i m iT
wiTc h
n sTall aTi o n
Lockout/Tagout the tool and TigerRack before installation.
Mount the Limit Switch to the tool.
*
A suitable mounting location causes the Limit Switch to close when
the tool is at rest and to open when the tool is cycling.
*
Make sure the SIK cable can reach the Amplifier.
*
Drill and tap, as required.
k
i
iT
nsTallaTion
10
TigerRack Installation
