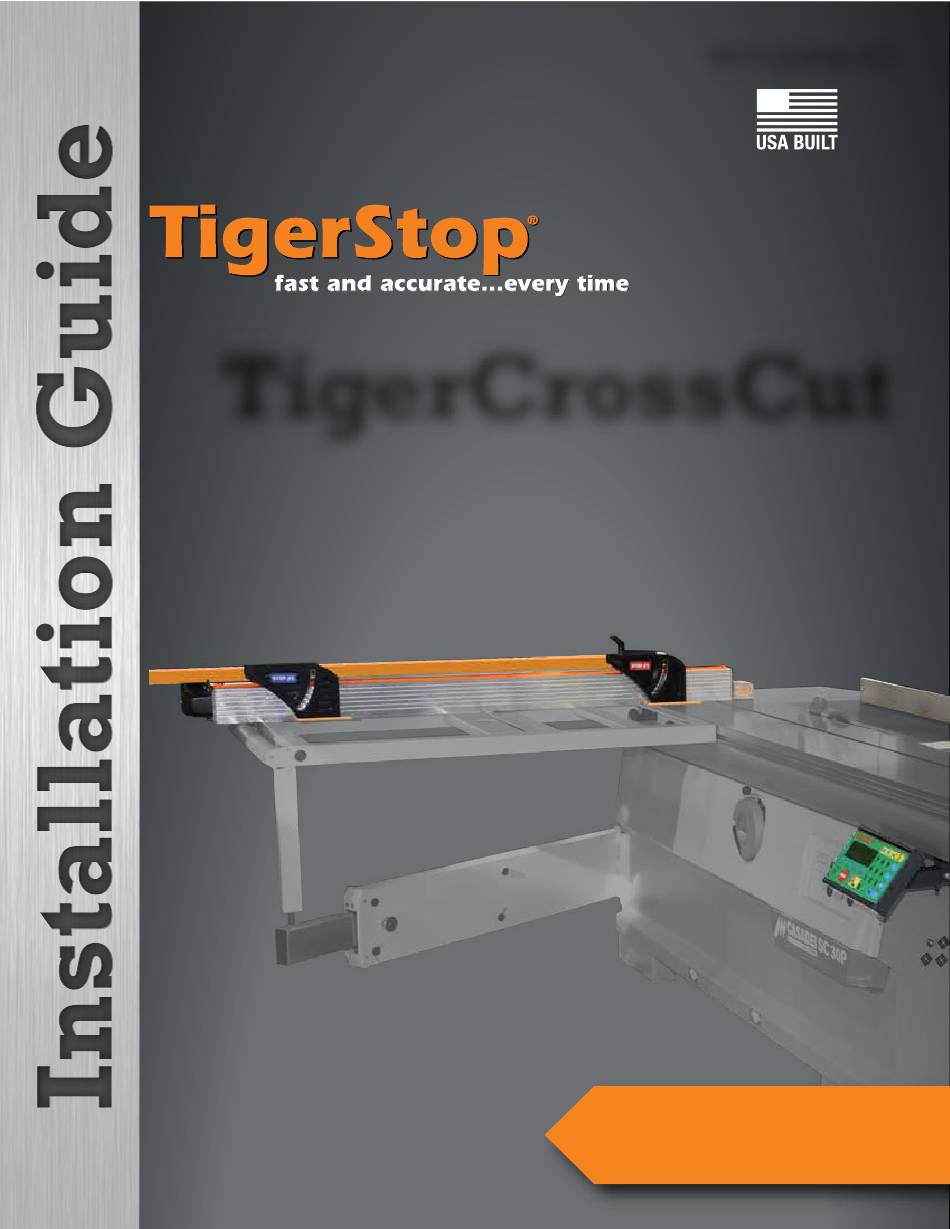

TigerStop TigerCrossCut Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

2017 TigerStop, LLC
®
TigerCrossCut
Register warranty and enable
TigerCrossCut BEFORE installation!
See "Enable Code" on page 15!
1
February 2017 Mk2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TigerCrossCut and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TigerStop TigerCrossCut

Summary of Contents for TigerStop TigerCrossCut

  • Page 1 2017 TigerStop, LLC ® TigerCrossCut Register warranty and enable TigerCrossCut BEFORE installation! See “Enable Code” on page 15! February 2017 Mk2...
  • Page 2 Serial Number Extension Controller Power Cable Nut Pack Motor Controller Controller Quick Reference Cover Cable Stand Cards F-45 Hardware F-45 End Plate End Plate Bar Pack F-45 Middle Plate...
  • Page 3 IMPORTANT SAFETY INFORMATION. READ ALL WARNINGS BEFORE OPERATING THIS PRODUCT. WARNING: Installation of your TigerStop Product must be done by a person trained in the safe design and installation of automation products, and in the safe operation of power equipment. Ensure...
  • Page 4 IMPORTANT SAFETY INFORMATION. READ ALL WARNINGS BEFORE OPERATING THIS PRODUCT. Keep the work area clean and well lighted to avoid accidental injury. Do not use TigerStop machines in a dangerous environment. Using power tools in damp or wet locations or in rain can cause shock or electrocution.

  • Page 5: Table Of Contents

    First Power Up ...................... 16 Calibration Settings Find the End Limits Calibrate TigerCrossCut Set Kerf Set CrossCut Offset Set CrossCut Alarm Set Units Basic TigerCrossCut Functions ................20 Entering Decimals Entering Fractions Calculator Mode Increment PreSet Quick Calibration Working with Part Lists ..................24...

  • Page 6: Installation Requirements

    208 VAC 20 Amps 240 VAC 20 Amps TigerCrossCut must have a dedicated circuit. No other equipment or devices should be on the same circuit. WARNING! Do NOT use a high leg delta circuit to power TigerCrossCut. If you are not sure what kind of circuit you are using, STOP! Have a qualified electrician confirm the main power circuit.

  • Page 7: Tigercrosscut Installation

    1. Install the TigerCrossCut Controller Stand. Continued on page 8. Note: The TigerCrossCut controller stand will hold the TigerCrossCut controller at a comfortable angle and height. The stand is attached to the bottom of the TigerCrossCut beam before being installed to the table saw.
  • Page 9 3. Set the controller stand base onto the T-bolts and thread mounting hardware. 4. Insert the sacrificial wood block into the end of TigerCrossCut. Tighten the set screws. Note: This block should stick out past your saw blade once TigerCrossCut is mounted.
  • Page 10 8. Locate the two sets of alignment cones. Test each set to find the size that fits best in your empty mounting holes. Note: TigerStop sends a 15 mm set and a 20 mm set. Modification of the cones may be necessary for other size holes. -OR-...
  • Page 11 Rotate TigerCrossCut so that the alignment cones go into the empty mounting holes. Note: Once TigerCrossCut is upright, hold it in place and ensure that TigerCrossCut is tight against the mounting surface. Thread a long set screw onto the open side of each cone. Thread a knob on each screw.

  • Page 12: Altendorf F45 Installation

    Note: Ensure the mounting surface is clean and smooth. Nothing should prevent a tight fit. 3. Set TigerCrossCut on your sliding bed, face down, so the mounting slots are exposed. Note: Place TigerCrossCut with the motor box away from the saw blade.

  • Page 13: Install Extension

    5. Slide each adapter bracket into the TigerCrosscut mounting slots. Each bracket is offset so that the edge of the bracket is flush with the face of the fence. Middle Plate End Plate End Plate 6. Line up the end plates with the Altendorf F45 locking cams.

  • Page 14: Install Motor Cover

    Once TigerCrossCut and all accessories are installed, its time to make the final connections. 1. Connect the TigerCrossCut Controller Cable to the Controller and to the Motor Box. Note: The TigerCrossCut Controller Cable is a proprietary cable. DO NOT use an “off the shelf” cable. Doing so can cause damage to TigerCrossCut.

  • Page 15: Enable Code

    The enable code notifies TigerStop, LLC when your new TigerCrossCut is about to be put into service. This lets us start the warranty on the exact day you turn it on. The enable code also allows TigerStop to turn on any upgrades you have purchased.

  • Page 16: First Power Up

    Home Routine. 2. When movement stops, TigerCrossCut will display the Ready Screen. The Ready Screen is the starting point for all TigerCrossCut functions. Let’s take a look at the screen, line by line. Line 1 displays the “heartbeat”. The heartbeat is a line that rotates and lets you know that TigerCrossCut is functioning normally.

  • Page 17: Calibration Settings

    These can change when you access different screens. Calibration Settings Once homed, we will need to set a few settings to ensure TigerCrossCut is measuring properly. Find the End Limits 1. From the Ready Screen, press the [Show] soft key to show the menu options.

  • Page 18: Calibrate Tigercrosscut

    Note: It is important to check and reset the kerf every time the saw blade is changed or sharpened. Set CrossCut Offset The CrossCut Offset tells TigerCrossCut where Stop 2 is in relation to Stop 1. 1. Flip up Stop 1.

  • Page 19: Set Crosscut Alarm

    Stop when you get to Units. 2. Press [B] to toggle between inches and metric. 3. Press the [Done] soft key when finished. TigerCrossCut is now ready to use. To view the complete TigerStop users guide, visit the support section of www.tigerstop.com.

  • Page 20: Basic Tigercrosscut Functions

    Basic TigerCrossCut Functions Basic TigerCrossCut Functions Manual Movement To manually move TigerCrossCut to a position, you must enter the length you want TigerCrossCut to go to. This length can be entered as a decimal or a fractional value. Entering Decimals 1.

  • Page 21: Jog

    ‘Jog Reverse’ setting in the ‘Setup’ menu to reverse the movement. Increment The increment function is a push feed mode used to step TigerCrossCut through a series of movements. Increment... • Can be a positive value that will move TigerCrossCut towards the tool.

  • Page 22: Preset

    5. The current position is 42. If that is where you want to start, press [Start] to begin incrementing. If you need to move the stop to load material, enter the position you wish to move to and press [Start]. TigerCrossCut will move to position. Load your stock and press [Start] to increment. STOP 6.

  • Page 23: Quick Calibration

    5. TigerCrossCut has now deleted the PreSet. Quick Calibration Quick calibration is a shortcut to the calibration setting. This allows advanced TigerCrossCut users to quickly calibrate. 1. Start at the Ready Screen. Note: If you are viewing the expanded options, press 2.

  • Page 24: Working With Part Lists

    Set Point A set point list will tell TigerCrossCut to act as a stop. It will treat each length you enter as an absolute value from your zero point. Set point lists can be optimized if you have the TigerStop Dynamic Optimizing upgrade.
  • Page 25 In this example, I will tell TigerCrossCut I want to cut a 24 inch part. 8. The cursor will now drop to the quantity. Enter how many parts you want, followed by In this example, I will tell TigerCrossCut that I want 5 parts.

  • Page 26: Maintenance Schedule

    Daily 1. Clean all dirt and debris from drive areas. 2. Check all cables for damage. 3. Check calibration and calibrate if necessary. See “Calibrate TigerCrossCut” on page 18. Monthly 1. Blow dust off machine exteriors, especially cable connections. 2. Blow out dust from inside the fence extrusion.
  • Page 27 Maintenance Log Maintenance Log Date Maintenance Performed Drive Test Results...
  • Page 32 FIND US ONLINE AT www.tigerstop.com 12909 NE 95th Stree Vancouver, WA 98682-2426 1.360.254.0661 sales@tigerstop.com TigerStop B.V. Holland 31 546 575 171 info@tigerstop.nl...
