DCR822

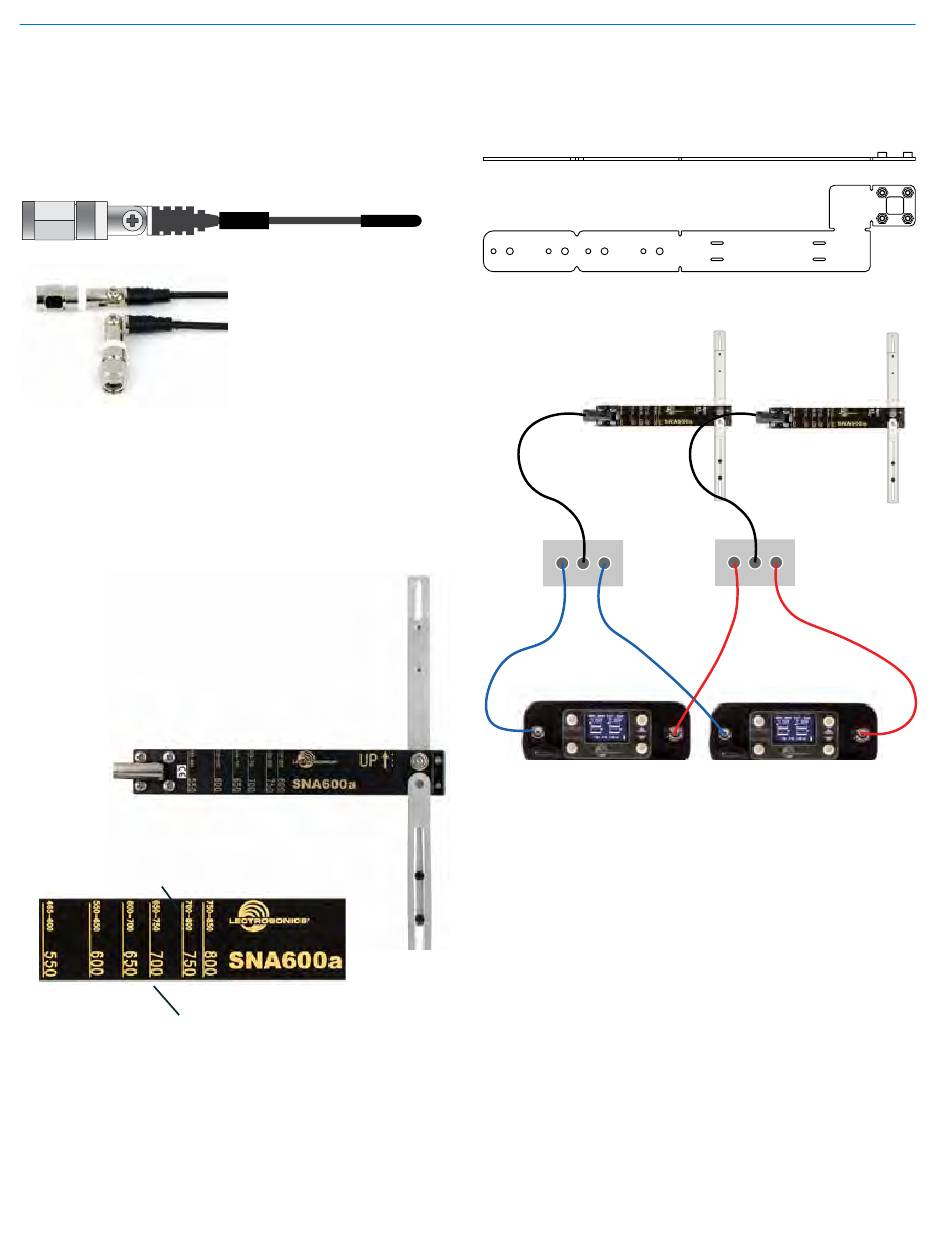

AMJ Jointed Antenna
The AMJ antenna is a general purpose design with a
hinged joint that pivots in both directions for positioning
the whip at any desired angle. The pivot allows the whips
to be oriented vertically regardless of the mounting posi-
tion of the receiver.
The hinged joint pivots in both directions
SNA600A Omni Dipole Antenna
The SNA600a antenna is a versatile tool for
use with wireless microphone receivers or IFB
transmitters. The center frequency of its 100
MHz bandwidth is tunable from 550 to 800 MHz;
however, the roll-off above and below this band
is gradual. The SNA600a measures lower than a
2:1 SWR (Standing Wave Ratio) from 465 MHz
to 850 MHz when the antenna arms are fully
extended.
Half-Power (-3 dB) Points
Center Frequency
20
Antenna Scale
A "bendable" mounting strap is included that allows
vertical orientation on a variety of surfaces. Several other
adapters are also available for temporary or fixed instal-
lations.
This is one example of using two splitters to feed two
receivers.
SNA600A
COAXIAL
CABLE
SPLITTER
Use Lectrosonics P/N 21770 BNC (F) to SMA (M) adapter;
Pomona P/N 4290
ZSC24
