SPOEB10xx-1xx
Installation- Continued

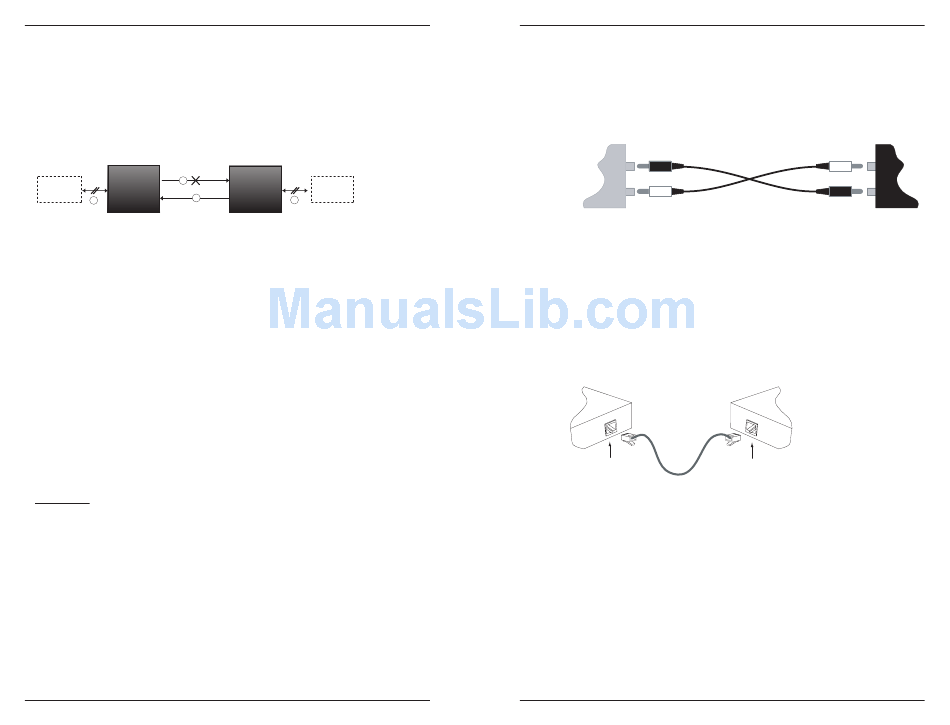

Far-End Fault (always enabled)
This troubleshooting feature generally used in conjunction with Link Pass
Through to notify both end devices of a link loss. If the fiber RX signal is lost
on the far end converter, the converter will automatically generate a far-end
fault signal and send it on its TX fiber port to notify the near-end converter of
the fiber link loss. Link Pass-Through will then disable the copper link on both
ends, alerting both end devices of network trouble. See diagram below.
original fault
on the fiber link
1
Near-End Media
Device Converter A
2
4
media converter A Far-End Fault
disables the copper link signal is sent
• Both end devices are notified automatically of the link loss
• Prevents loss of valuable data transmitted unknowingly over invalid link
• Allows quick diagnosis and resolution of network problem
Transition Networks' media converters that include the FEF feature will work
with other network devices that support Far End Fault per IEEE standards.
Automatic Link Restoration (always enabled)
Transition Networks's converters will automatically re-establish the link in all
network conditions:
• Without a device reset, the converters will automatically re-establish the
link when connected to switches after a link loss.
• With Auto-Negotiation enabled, automatic link restoration allows using
Auto-Negotiation with Link-Loss Notification.
• With Link Pass-Through enabled in both directions, automatic link
restoration allows using Link-Loss Notification in both directions.
CAUTION: Associated Ethernet wiring shall be limited to inside the building.

Installing fiber cables

1. Locate a 100Base-FX fiber cable with male, two-stranded TX to RX
connectors installed at both ends.
2. Connect the fiber cables to the SPOEB10xx-100 media converter as
described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
3. Connect the fiber cables to the other device (another media converter,
hub, etc.) as described:
6
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Media Far-End
Converter B Device
3
media converter B
disables the copper link
Installation -- Continued
Install the fiber cable -- continued
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
RX
TX
Device

Install the copper cable

1. Locate 100Base-TX copper cables with male, RJ-45 connectors installed
at both ends.
2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on
the media converter.
3. Connect the RJ-45 connector at the other end of the cable to the RJ-45
port on the other device (wireless access point, VoIP phone, network
camera, etc.).
RJ-45 port
on the media
converter
(switch, work station, etc.)

Connecting power

1. Connect the barrel connector, on the power adapter, to the power port
on the media converter (back panel).
2. Connect the power adapter plug to AC power.
3. Verify that the converter is powered by observing the illuminated LED
power indicator light on the front panel
Note: If an under or over voltage condition is detect on the main power input,
the error LED will turn ON. This means that the LED will stay ON even if
the voltage returns to a valid level. This condition indicates a problem
with the power supply adapter; therefore, the power supply adapter
should be replaced.
techsupport@transition.com -- Click the "Transition Now" link for a live Web chat.
RX
TX
Device
RJ-45 port
on the other device
7
