Getting started
1.2.3

Hardware layout

The system is built around STMicroelectronics' cortex-based STM32F103RET6 in the 64-
pin LQFP64 package. The hardware layout of the camera unit is shown in
layout of the monitoring unit, please refer to the UM0874 user manual.

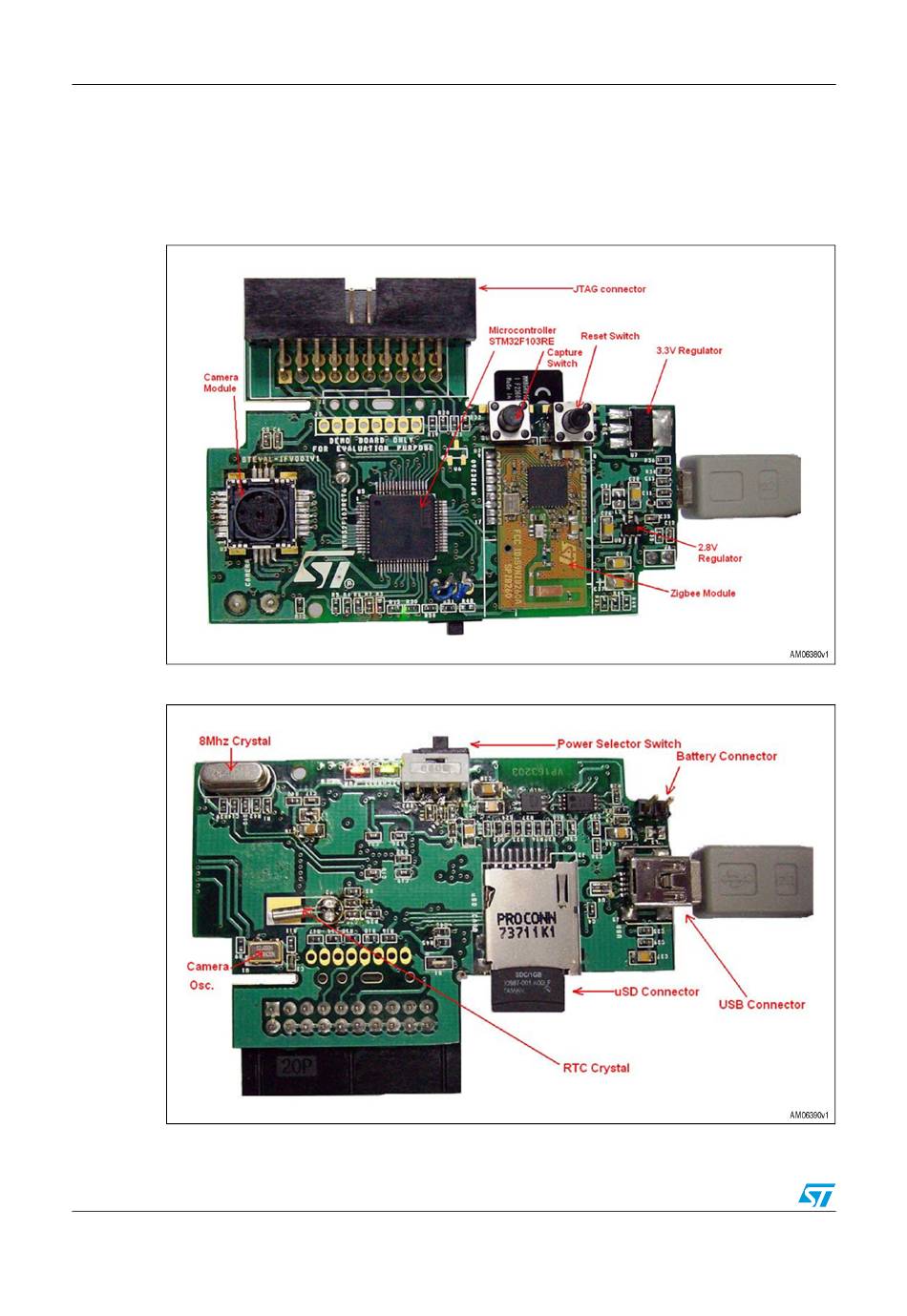

Figure 3.
Figure 4.
6/33
www.BDTIC.com/ST
STEVAL-IFV001V1 front view
STEVAL-IFV001V1 rear view
Doc ID 17087 Rev 1
UM0908
Figure 3. For the
