- Page 1 User manual IVP 7001 MW PET...

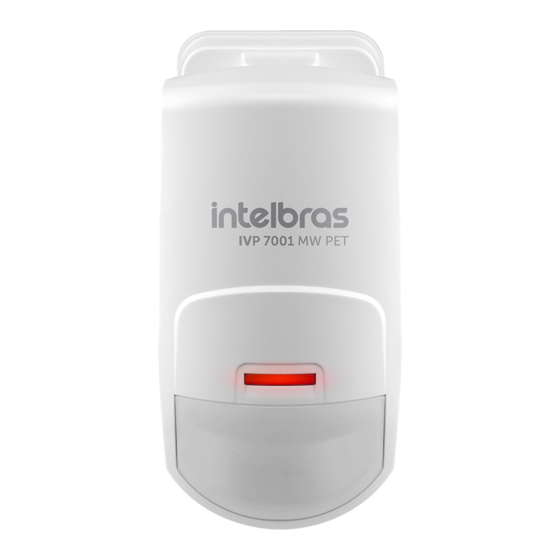

- Page 2 Congratulations, you have just purchased a product with Intelbras quality and safety. The IVP 7001 MW PET passive infrared sensor has triple technology, which combines microwave de- tection with detection by passive infrared rays and immunity to animals up to 20kg. Advanced signal...
- Page 3 » Follow all instructions in the manual for assembling and installing the product. » This sensor is intended for indoor environments. » LGPD - General Law for the Protection of Personal Data: Intelbras does not access, transfer, capture, or perform any other type of treatment of personal data from this product.
- Page 4 » It is important to note that the Pet function is designed for crawling animals, so if the animal is not on the ground, but on top of a bench, for example, it can be detected thus canceling the Pet function , as seen in the image below : »...
-
Page 5: Table Of Contents
Summary 1. Technical specifications 2. Product 3. Characteristics 4. Installation 5. Troubleshooting 6. Approval Warranty term... -
Page 6: Technical Specifications
1. Technical specifications Operating voltage 9-16 Vdc Operating Current ≤ 40 mA (12 Vdc) Detection Angle 90° Detection range¹ 12 × 12 m ± 20% Detection method MW and PIR AND and OR function Anti-camouflage Yes (OR function) Sensor element Low noise PIR MW antenna GaAs FET... -
Page 7: Characteristics
3. Characteristics » Microcontrolled signal processing; » Microwave (Doppler effect) + infrared; » Adjustable microwave power; » Automatic temperature compensation to reduce false alarms; » Immunity to white light up to 10,000 lux; » Articulating bracket for attachment; » High immunity to RFI / EMI - shield; »... - Page 8 2. Remove the card to perform the installation: Gire o parafuso Deslize a placa Slide the card up Turn the screw no sentido para cima to remove it counterclockwise anti-horário para removê-la 3. For installation directly or in a wall corner, break the seals indicated for the holes in the rear attaching cover: Lacres para Seal for wall instalação...
- Page 9 » For installation directly on the wall, drill the holes in the positions indicated on the base of the articulator. For installation in the corner of the wall, it is not possible to use the bracket. Before screwing the articulator in position, drill the cable passage seal on the base and pass the cable as shown in the images: 5.
- Page 10 7. Perform the configuration on the sensor: » The LED jumper is used to control the LED indication without interfering with the detector. With the switch in the On position, the LEDs are enabled to function normally. With the switch in the Off position, the LEDs are disabled, that is, they do not light up.
-
Page 11: Troubleshooting
8. Close the sensor by inserting the front of the case again and tightening the screw: 5. Troubleshooting » Perform the walk test by verifying that the entire area you want to protect is being detected by the sensor. If this does not happen, readjust the PIR and microwave detection sensitivity. -
Page 12: Warranty Term
8. After its useful life, the product must be delivered to an authorized Intelbras service center or directly disposed of in an environmentally appropriate manner to avoid environmental and health impacts. If you prefer, the battery, as well as other unused Intelbras brand electronics, can be disposed of at any Green Eletron collection point (waste management facility to which we are associated). - Page 13 Support via e-mail: suporte@intelbras.com.br Customer Service: 0800 7042767 Where to buy? Who installs it? 0800 7245115 Imported to Brazil by: Intelbras S/A – Indústria de Telecomunicação Eletrônica Brasileira Rodovia SC 281, km 4,5 – Sertão do Maruim – São José/SC – 88122-001 01.21 CNPJ 82.901.000/0014-41 –...
