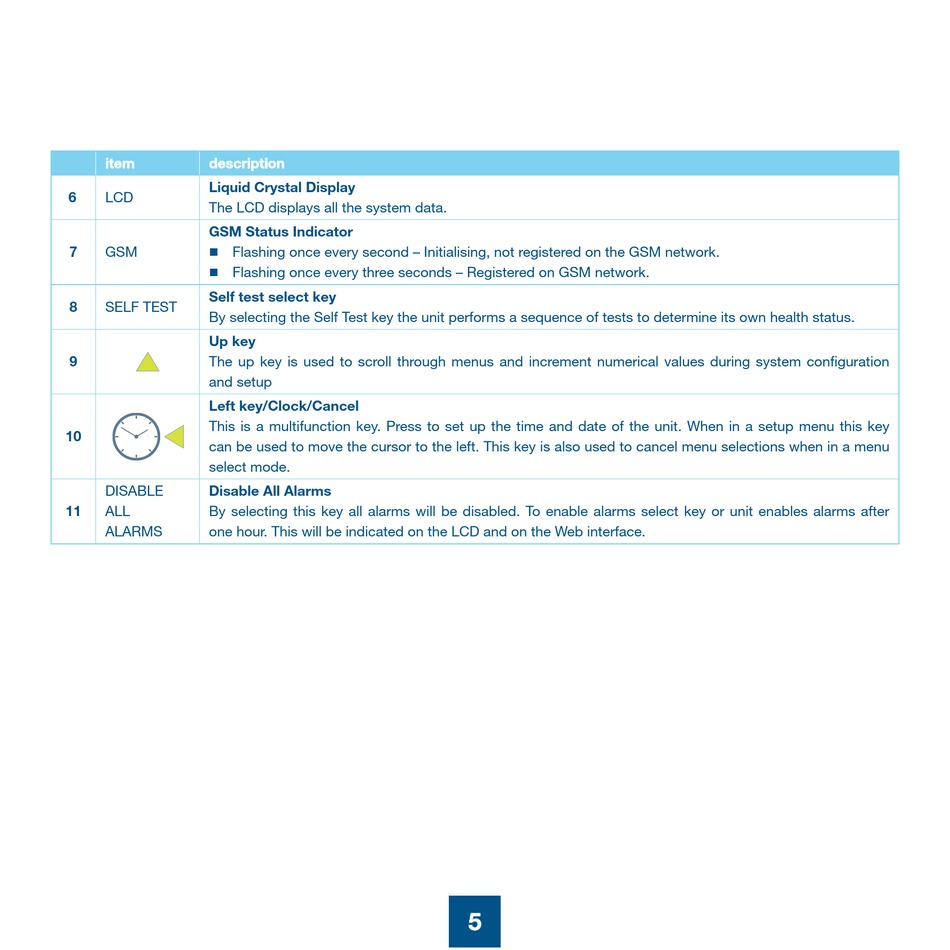

RT Systems TM3 Installation And User Manual page 6

item description
Liquid Crystal Display
6
LCD
The LCD displays all the system data.
GSM Status Indicator
7 GSM Flashing once every second – Initialising, not registered on the GSM network.
n
Flashing once every three seconds – Registered on GSM network.
n
Self test select key
8 SELF TEST
By selecting the Self Test key the unit performs a sequence of tests to determine its own health status.
Up key
9 The up key is used to scroll through menus and increment numerical values during system configuration
and setup
Left key/Clock/Cancel
This is a multifunction key. Press to set up the time and date of the unit. When in a setup menu this key
10
can be used to move the cursor to the left. This key is also used to cancel menu selections when in a menu
select mode.
DISABLE Disable All Alarms
11 ALL By selecting this key all alarms will be disabled. To enable alarms select key or unit enables alarms after
ALARMS one hour. This will be indicated on the LCD and on the Web interface.
