General Configuration Page - RT Systems TM3 Installation And User Manual

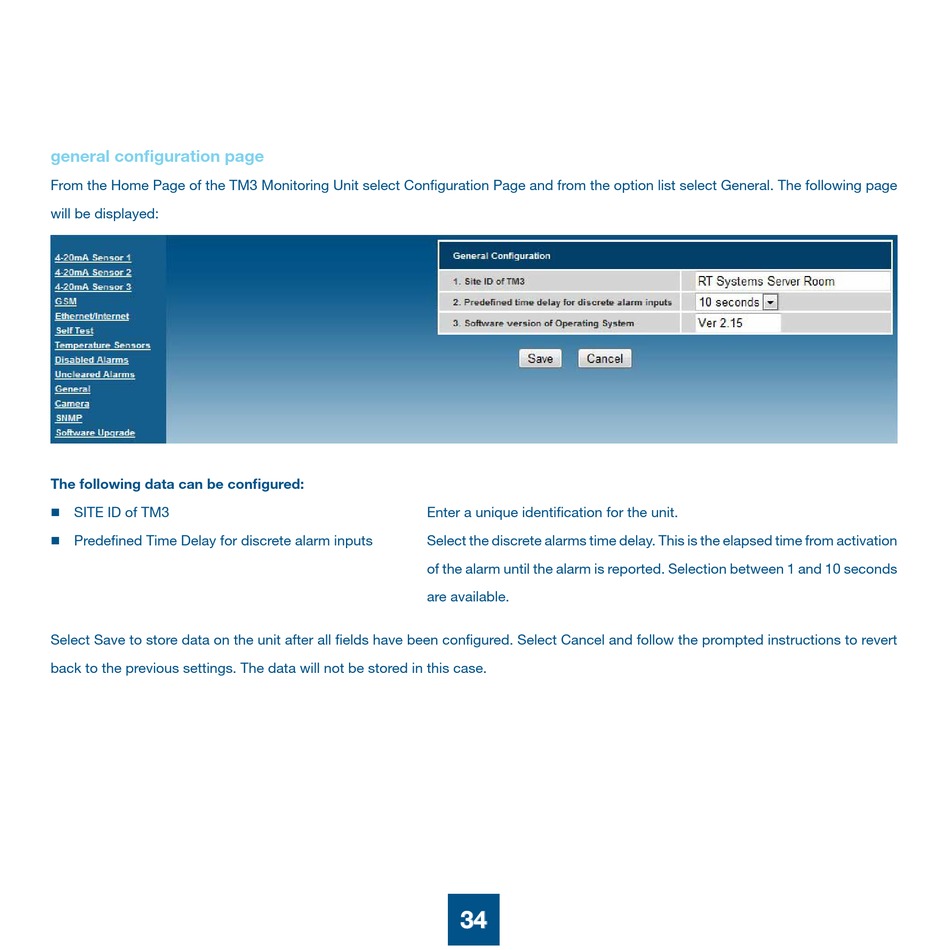

general configuration page

From the Home Page of the TM3 Monitoring Unit select Configuration Page and from the option list select General. The following page
will be displayed:
The following data can be configured:
SITE ID of TM3
n
Predefined Time Delay for discrete alarm inputs
n
Select Save to store data on the unit after all fields have been configured. Select Cancel and follow the prompted instructions to revert
back to the previous settings. The data will not be stored in this case.
Enter a unique identification for the unit.
Select the discrete alarms time delay. This is the elapsed time from activation
of the alarm until the alarm is reported. Selection between 1 and 10 seconds
are available.
34
