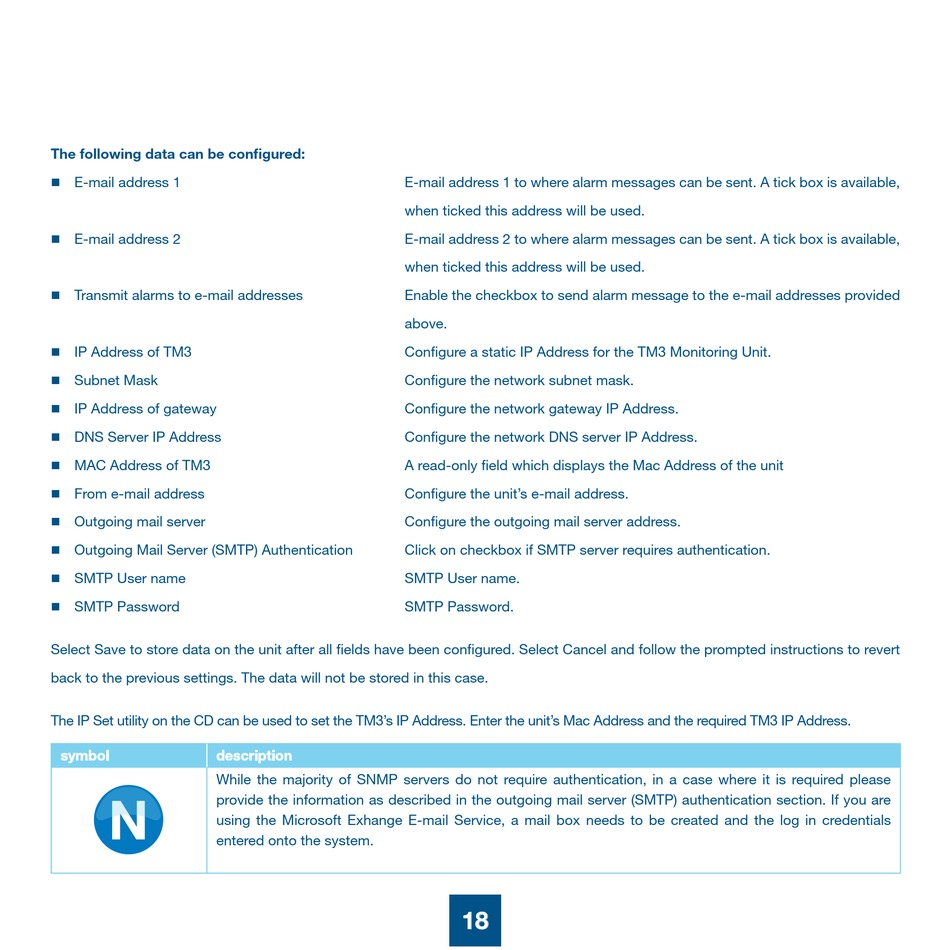

The following data can be configured:
E-mail address 1
n
E-mail address 2
n
Transmit alarms to e-mail addresses
n
IP Address of TM3
n
Subnet Mask
n
IP Address of gateway
n
DNS Server IP Address
n
MAC Address of TM3
n
From e-mail address
n
Outgoing mail server
n
Outgoing Mail Server (SMTP) Authentication
n
SMTP User name
n
SMTP Password
n
Select Save to store data on the unit after all fields have been configured. Select Cancel and follow the prompted instructions to revert
back to the previous settings. The data will not be stored in this case.
The IP Set utility on the CD can be used to set the TM3's IP Address. Enter the unit's Mac Address and the required TM3 IP Address.
symbol description
While the majority of SNMP servers do not require authentication, in a case where it is required please
N
provide the information as described in the outgoing mail server (SMTP) authentication section. If you are
using the Microsoft Exhange E-mail Service, a mail box needs to be created and the log in credentials
entered onto the system.
E-mail address 1 to where alarm messages can be sent. A tick box is available,
when ticked this address will be used.
E-mail address 2 to where alarm messages can be sent. A tick box is available,
when ticked this address will be used.
Enable the checkbox to send alarm message to the e-mail addresses provided
above.
Configure a static IP Address for the TM3 Monitoring Unit.
Configure the network subnet mask.
Configure the network gateway IP Address.
Configure the network DNS server IP Address.
A read-only field which displays the Mac Address of the unit
Configure the unit's e-mail address.
Configure the outgoing mail server address.
Click on checkbox if SMTP server requires authentication.
SMTP User name.
SMTP Password.
18
