Alarm Profile Configuration Page - RT Systems TM3 Installation And User Manual

alarm profile configuration page

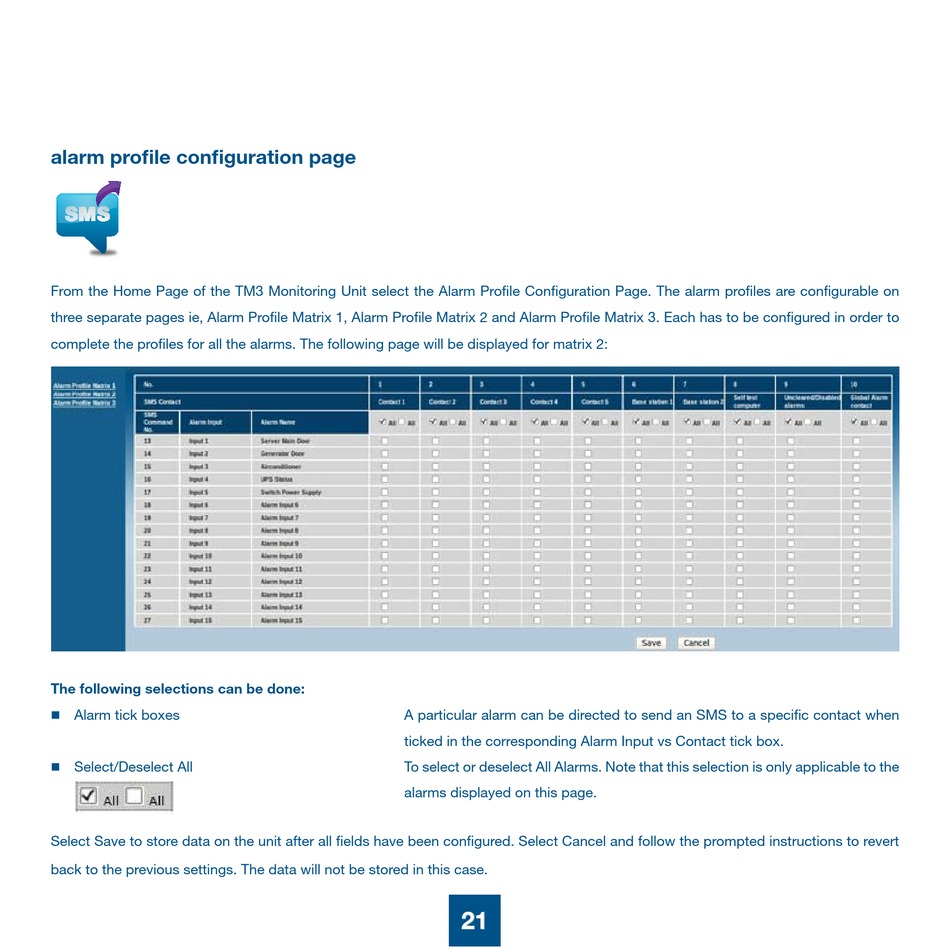

From the Home Page of the TM3 Monitoring Unit select the Alarm Profile Configuration Page. The alarm profiles are configurable on
three separate pages ie, Alarm Profile Matrix 1, Alarm Profile Matrix 2 and Alarm Profile Matrix 3. Each has to be configured in order to
complete the profiles for all the alarms. The following page will be displayed for matrix 2:
The following selections can be done:
Alarm tick boxes
n
Select/Deselect All
n
Select Save to store data on the unit after all fields have been configured. Select Cancel and follow the prompted instructions to revert
back to the previous settings. The data will not be stored in this case.
A particular alarm can be directed to send an SMS to a specific contact when
ticked in the corresponding Alarm Input vs Contact tick box.
To select or deselect All Alarms. Note that this selection is only applicable to the
alarms displayed on this page.
21 21
