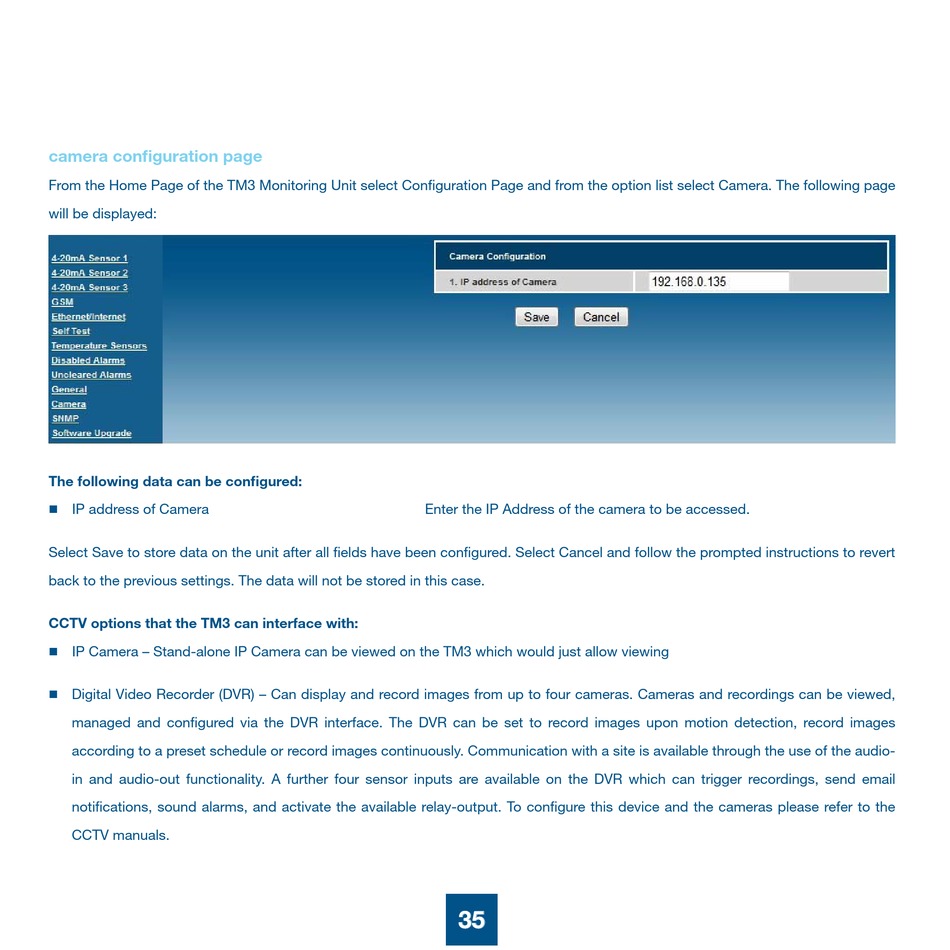

camera configuration page

From the Home Page of the TM3 Monitoring Unit select Configuration Page and from the option list select Camera. The following page
will be displayed:
The following data can be configured:
IP address of Camera
n
Select Save to store data on the unit after all fields have been configured. Select Cancel and follow the prompted instructions to revert
back to the previous settings. The data will not be stored in this case.
CCTV options that the TM3 can interface with:
IP Camera – Stand-alone IP Camera can be viewed on the TM3 which would just allow viewing
n
Digital Video Recorder (DVR) – Can display and record images from up to four cameras. Cameras and recordings can be viewed,
n
managed and configured via the DVR interface. The DVR can be set to record images upon motion detection, record images
according to a preset schedule or record images continuously. Communication with a site is available through the use of the audio-
in and audio-out functionality. A further four sensor inputs are available on the DVR which can trigger recordings, send email
notifications, sound alarms, and activate the available relay-output. To configure this device and the cameras please refer to the
CCTV manuals.
Enter the IP Address of the camera to be accessed.
35
35
