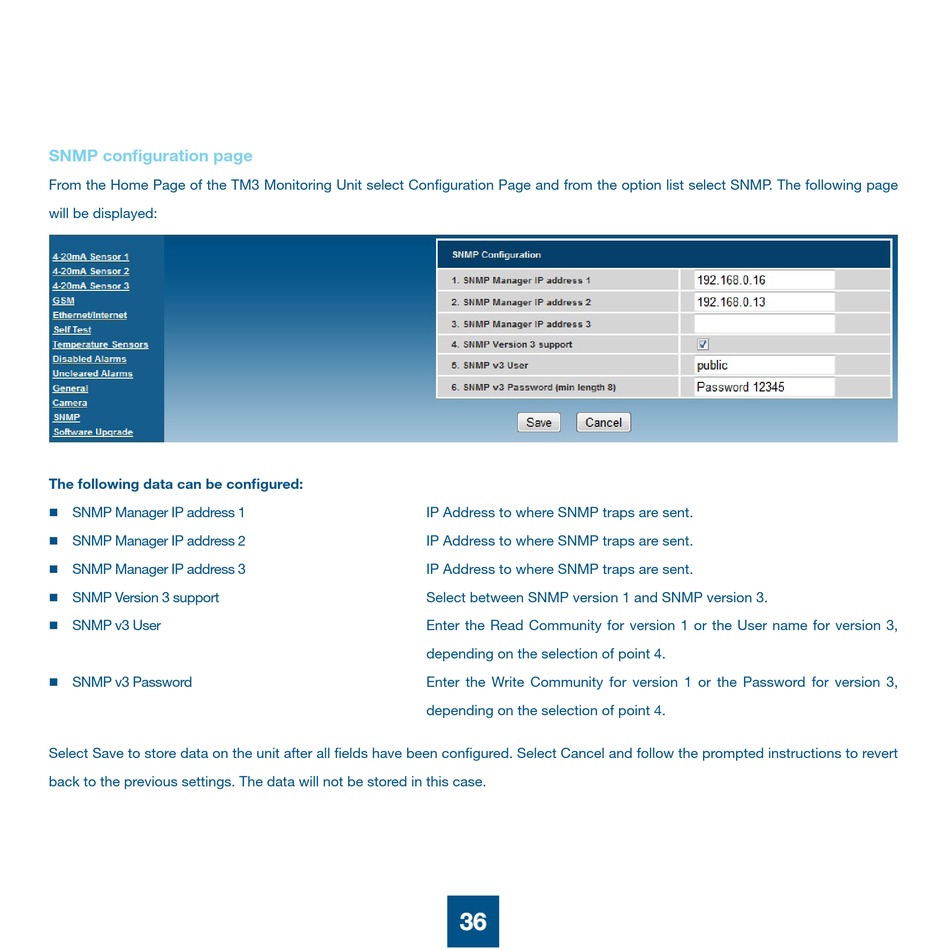

SNMP configuration page

From the Home Page of the TM3 Monitoring Unit select Configuration Page and from the option list select SNMP. The following page
will be displayed:
The following data can be configured:
SNMP Manager IP address 1
n
SNMP Manager IP address 2
n
SNMP Manager IP address 3
n
SNMP Version 3 support
n
SNMP v3 User
n
SNMP v3 Password
n
Select Save to store data on the unit after all fields have been configured. Select Cancel and follow the prompted instructions to revert
back to the previous settings. The data will not be stored in this case.
IP Address to where SNMP traps are sent.
IP Address to where SNMP traps are sent.
IP Address to where SNMP traps are sent.
Select between SNMP version 1 and SNMP version 3.
Enter the Read Community for version 1 or the User name for version 3,
depending on the selection of point 4.
Enter the Write Community for version 1 or the Password for version 3,
depending on the selection of point 4.
36
