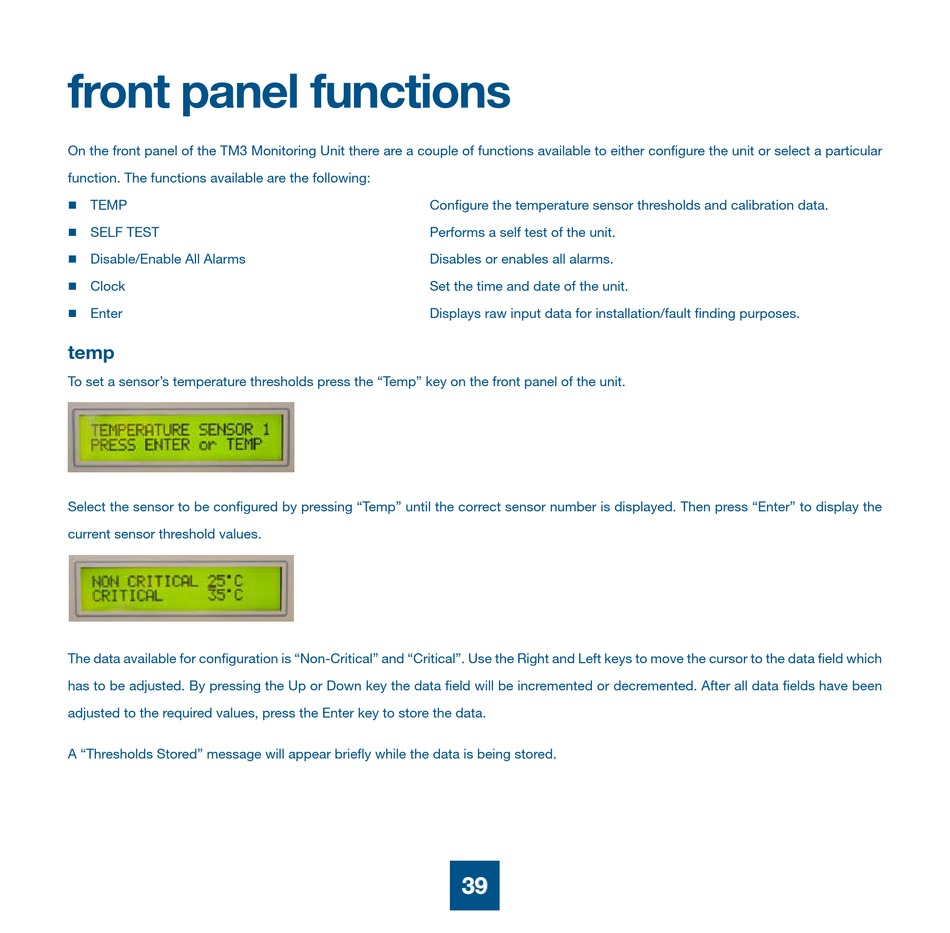

front panel functions

On the front panel of the TM3 Monitoring Unit there are a couple of functions available to either configure the unit or select a particular
function. The functions available are the following:

TEMP

n
SELF TEST
n
Disable/Enable All Alarms
n
Clock
n
Enter
n
temp
To set a sensor's temperature thresholds press the "Temp" key on the front panel of the unit.
Select the sensor to be configured by pressing "Temp" until the correct sensor number is displayed. Then press "Enter" to display the
current sensor threshold values.
The data available for configuration is "Non-Critical" and "Critical". Use the Right and Left keys to move the cursor to the data field which
has to be adjusted. By pressing the Up or Down key the data field will be incremented or decremented. After all data fields have been
adjusted to the required values, press the Enter key to store the data.
A "Thresholds Stored" message will appear briefly while the data is being stored.
Configure the temperature sensor thresholds and calibration data.
Performs a self test of the unit.
Disables or enables all alarms.
Set the time and date of the unit.
Displays raw input data for installation/fault finding purposes.
