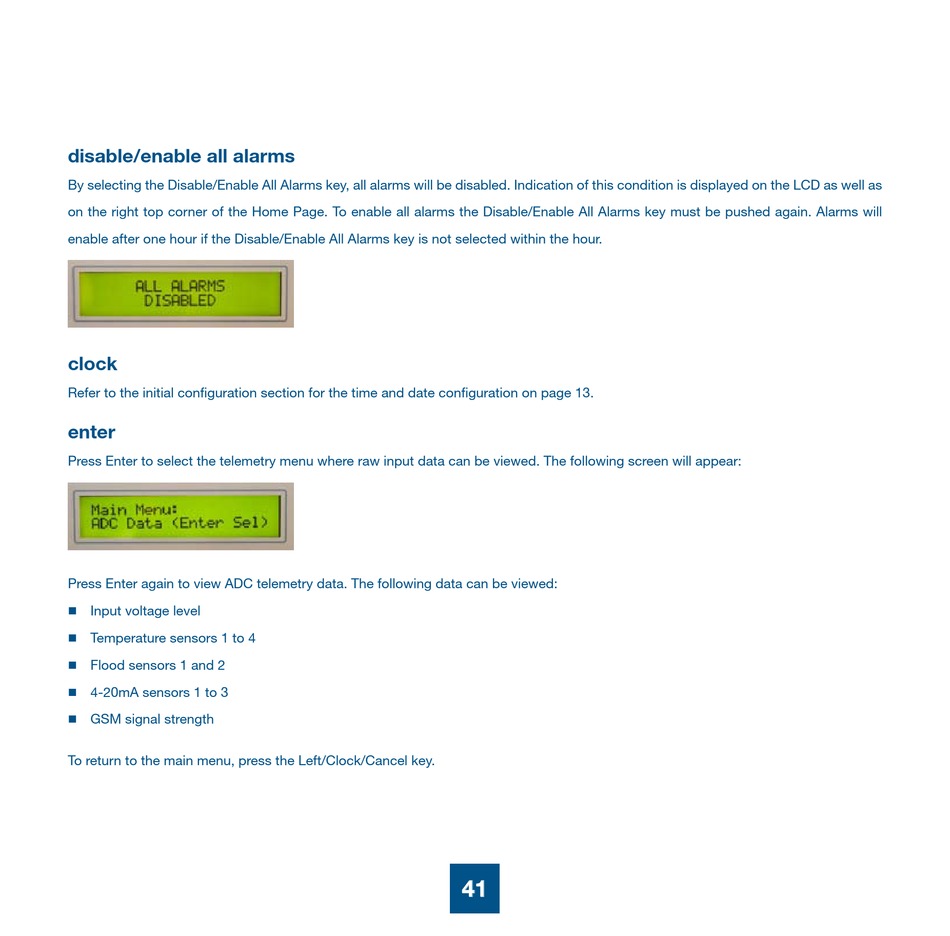

Disable/Enable All Alarms; Clock; Enter - RT Systems TM3 Installation And User Manual

disable/enable all alarms

By selecting the Disable/Enable All Alarms key, all alarms will be disabled. Indication of this condition is displayed on the LCD as well as
on the right top corner of the Home Page. To enable all alarms the Disable/Enable All Alarms key must be pushed again. Alarms will
enable after one hour if the Disable/Enable All Alarms key is not selected within the hour.

clock

Refer to the initial configuration section for the time and date configuration on page 13.

enter

Press Enter to select the telemetry menu where raw input data can be viewed. The following screen will appear:
Press Enter again to view ADC telemetry data. The following data can be viewed:
Input voltage level
n
Temperature sensors 1 to 4
n
Flood sensors 1 and 2
n
4-20mA sensors 1 to 3
n
GSM signal strength
n
To return to the main menu, press the Left/Clock/Cancel key.
41 41
