RT Systems TM3 Installation And User Manual page 24

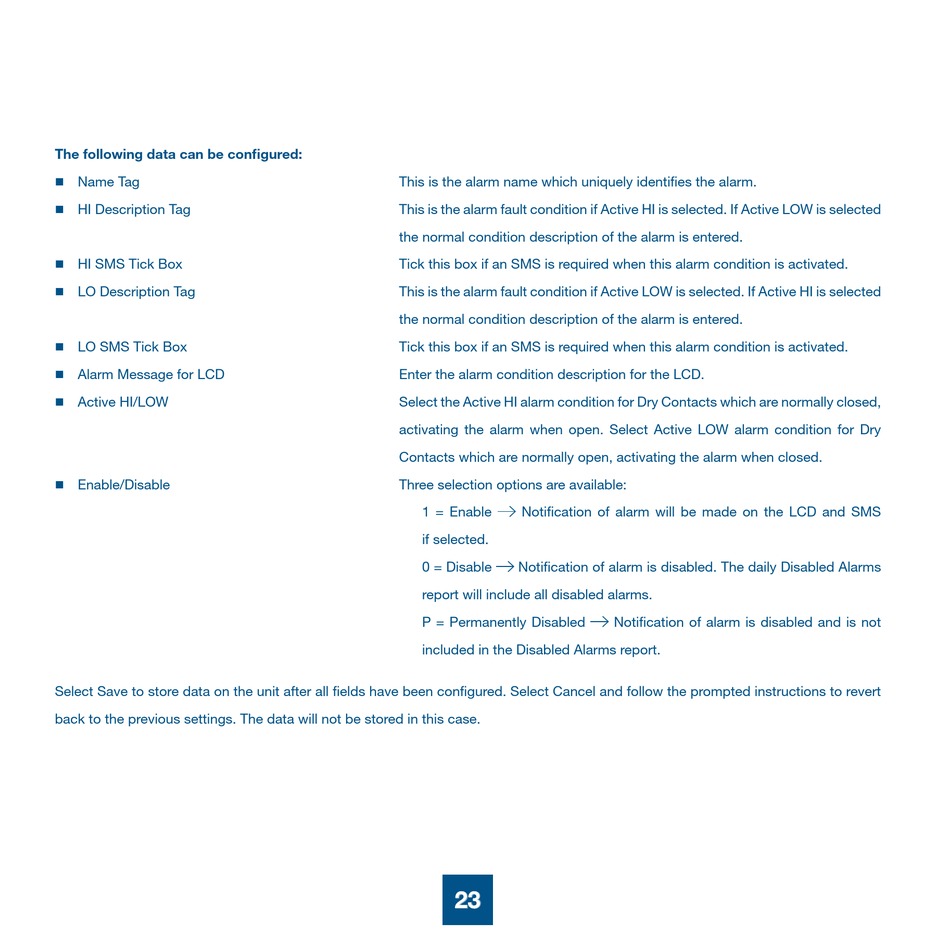

The following data can be configured:
Name Tag
n
HI Description Tag
n
HI SMS Tick Box
n
LO Description Tag
n
LO SMS Tick Box
n
Alarm Message for LCD
n
Active HI/LOW
n
Enable/Disable
n
Select Save to store data on the unit after all fields have been configured. Select Cancel and follow the prompted instructions to revert
back to the previous settings. The data will not be stored in this case.
This is the alarm name which uniquely identifies the alarm.
This is the alarm fault condition if Active HI is selected. If Active LOW is selected
the normal condition description of the alarm is entered.
Tick this box if an SMS is required when this alarm condition is activated.
This is the alarm fault condition if Active LOW is selected. If Active HI is selected
the normal condition description of the alarm is entered.
Tick this box if an SMS is required when this alarm condition is activated.
Enter the alarm condition description for the LCD.
Select the Active HI alarm condition for Dry Contacts which are normally closed,
activating the alarm when open. Select Active LOW alarm condition for Dry
Contacts which are normally open, activating the alarm when closed.
Three selection options are available:
1 = Enable Notification of alarm will be made on the LCD and SMS
if selected.
0 = Disable Notification of alarm is disabled. The daily Disabled Alarms
report will include all disabled alarms.
P = Permanently Disabled
included in the Disabled Alarms report.
23 23
Notification of alarm is disabled and is not
