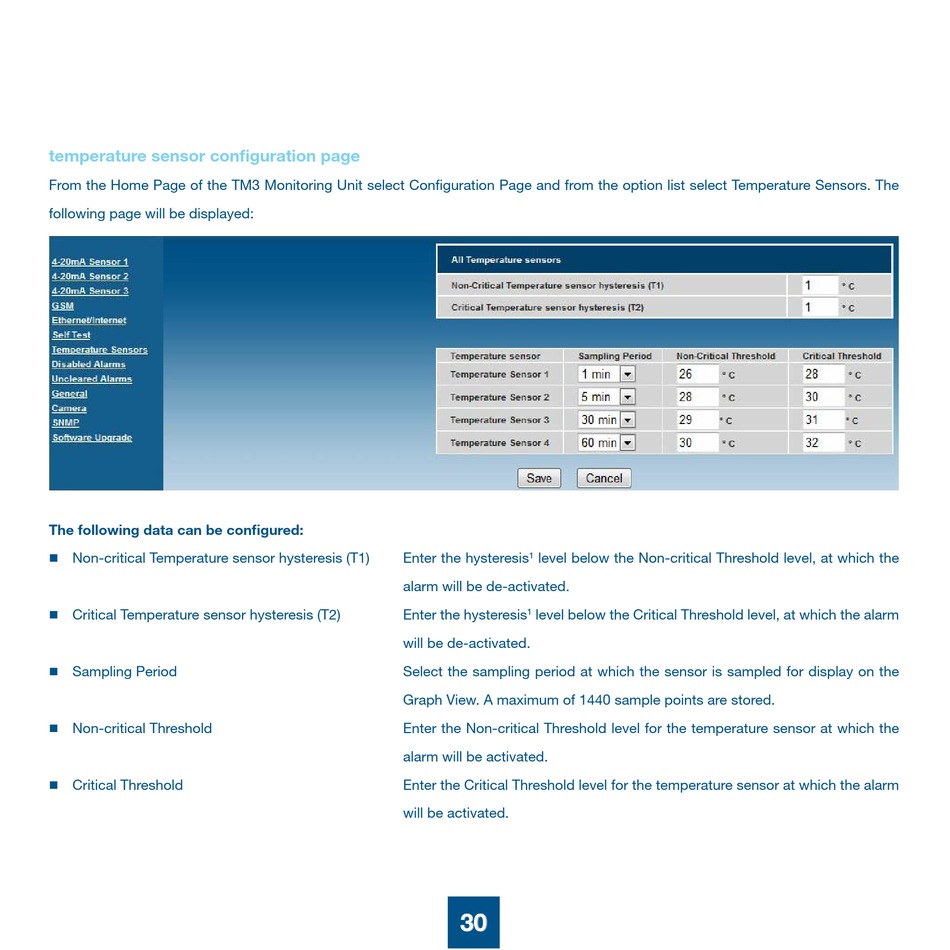

temperature sensor configuration page

From the Home Page of the TM3 Monitoring Unit select Configuration Page and from the option list select Temperature Sensors. The
following page will be displayed:
The following data can be configured:
Non-critical Temperature sensor hysteresis (T1)
n
Critical Temperature sensor hysteresis (T2)
n
Sampling Period
n
Non-critical Threshold
n
Critical Threshold
n
Enter the hysteresis level below the Non-critical Threshold level, at which the
1
alarm will be de-activated.
Enter the hysteresis level below the Critical Threshold level, at which the alarm
1
will be de-activated.
Select the sampling period at which the sensor is sampled for display on the
Graph View. A maximum of 1440 sample points are stored.
Enter the Non-critical Threshold level for the temperature sensor at which the
alarm will be activated.
Enter the Critical Threshold level for the temperature sensor at which the alarm
will be activated.
30
