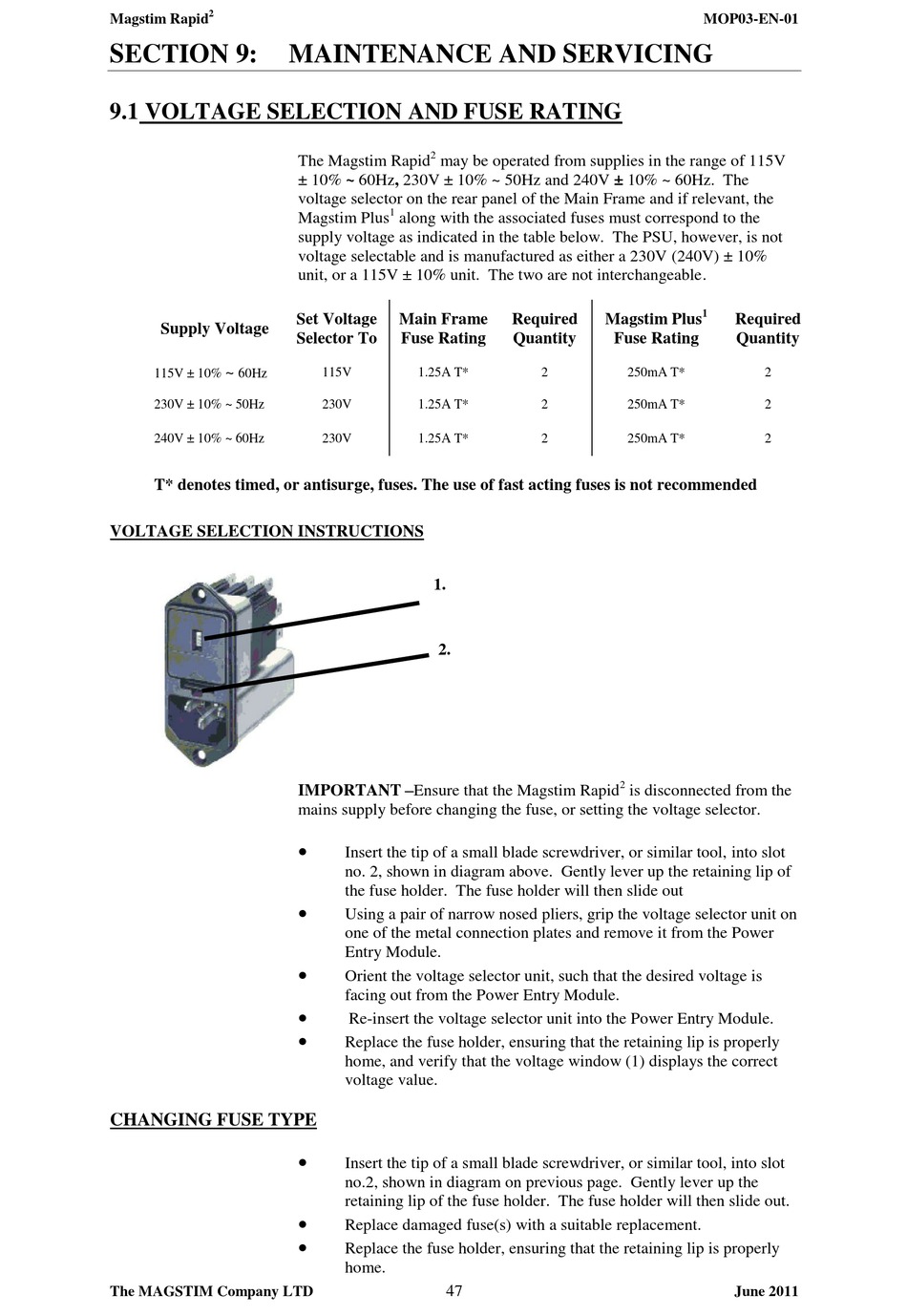

Maintenance And Servicing; Voltage Selection Instructions - MAGSTIM RAPID2 Operating Manual

2
Magstim Rapid
SECTION 9:
9.1 VOLTAGE SELECTION AND FUSE RATING
Supply Voltage
~
115V ± 10% 60Hz
230V ± 10% ~ 50Hz
240V ± 10% ~ 60Hz
T* denotes timed, or antisurge, fuses. The use of fast acting fuses is not recommended

VOLTAGE SELECTION INSTRUCTIONS

CHANGING FUSE TYPE
The MAGSTIM Company LTD

MAINTENANCE AND SERVICING

2
The Magstim Rapid may be operated from supplies in the range of 115V
± 10% ~ 60Hz, 230V ± 10% ~ 50Hz and 240V ± 10% ~ 60Hz. The
voltage selector on the rear panel of the Main Frame and if relevant, the
1
Magstim Plus along with the associated fuses must correspond to the
supply voltage as indicated in the table below. The PSU, however, is not
voltage selectable and is manufactured as either a 230V (240V) ± 10%
unit, or a 115V ± 10% unit. The two are not interchangeable.
Set Voltage Main Frame
Selector To Fuse Rating
115V 1.25A T*
230V 1.25A T*
230V 1.25A T*
1.
2.
IMPORTANT –Ensure that the Magstim Rapid
mains supply before changing the fuse, or setting the voltage selector.

Insert the tip of a small blade screwdriver, or similar tool, into slot
no. 2, shown in diagram above. Gently lever up the retaining lip of
the fuse holder. The fuse holder will then slide out

Using a pair of narrow nosed pliers, grip the voltage selector unit on
one of the metal connection plates and remove it from the Power
Entry Module.

Orient the voltage selector unit, such that the desired voltage is
facing out from the Power Entry Module.

Re-insert the voltage selector unit into the Power Entry Module.

Replace the fuse holder, ensuring that the retaining lip is properly
home, and verify that the voltage window (1) displays the correct
voltage value.

Insert the tip of a small blade screwdriver, or similar tool, into slot
no.2, shown in diagram on previous page. Gently lever up the
retaining lip of the fuse holder. The fuse holder will then slide out.

Replace damaged fuse(s) with a suitable replacement.

Replace the fuse holder, ensuring that the retaining lip is properly
home.
47
Required Magstim Plus
Quantity Fuse Rating
2 250mA T*
2 250mA T*
2 250mA T*
2
is disconnected from the
MOP03-EN-01
1
Required
Quantity
2
2
2
June 2011
