4.6 REPETITIVE MODE: STANDARD

SESSION DETAILS
Channels 1,2 and Both Selecting Channel 1, Channel 2 or Both determines whether both traces are
COIL STATUS PANEL
SYSTEM STATUS PANEL
Trace Window
Resume
Setup
Single Pulse
Options Menu
The MAGSTIM Company LTD

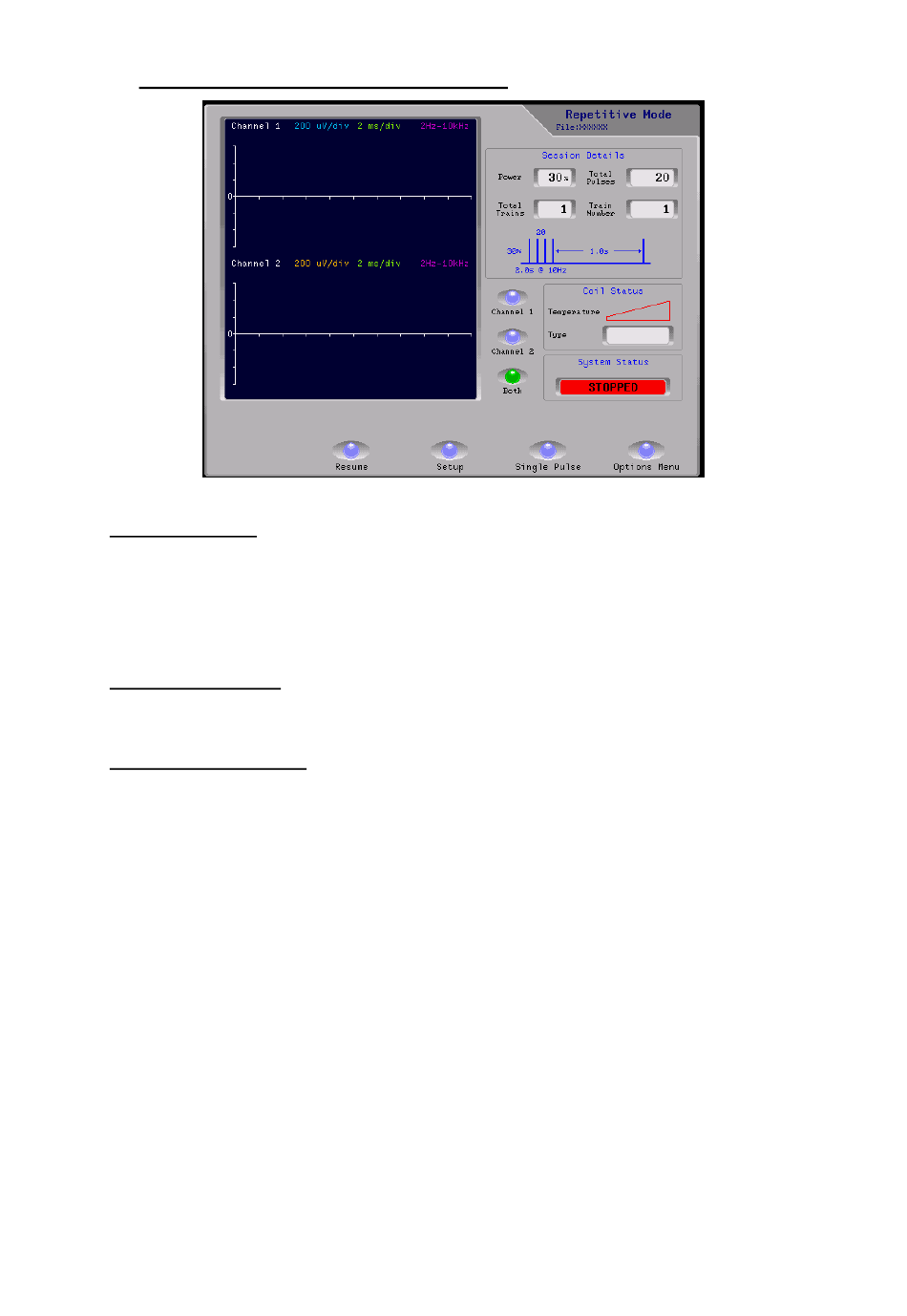

The Session Details panel shows a pictorial representation of the train
currently running, and shows the settings established in Repetitive Setup.
shown simultaneously or individually.
The Coil Status panel will show the temperature and type of coil.
The System Status panel shows the system status.
The Trace window will be updated when a stimulation occurs. The
maximum update rate for the trace window is, 4 times a second, depending
on the amount of information to be displayed.
If the amplitude cursors are active then the last position set for each cursor in
Single Pulse Mode will be displayed. The cursor position will remain fixed
until Single Pulse Mode is re-entered
In order to save the traces it is necessary to return to Single Pulse Mode and
save the data as before. The information will remain on each trace window
until a new trace is generated, when the new trace will overwrite the
previous trace.
This option is available if the system is armed and the previous session was
not completed. Selecting Resume will return the session to the point at which
it was stopped, beginning at the start of the next train regardless of when the
last train was stopped.
Selection of this option will return the user to the Repetitive Setup screen.
Selecting this option will return the user to the Single Pulse Mode screen.
Selection of this option will return the user to the Options Menu screen.
