Magstim Rapid

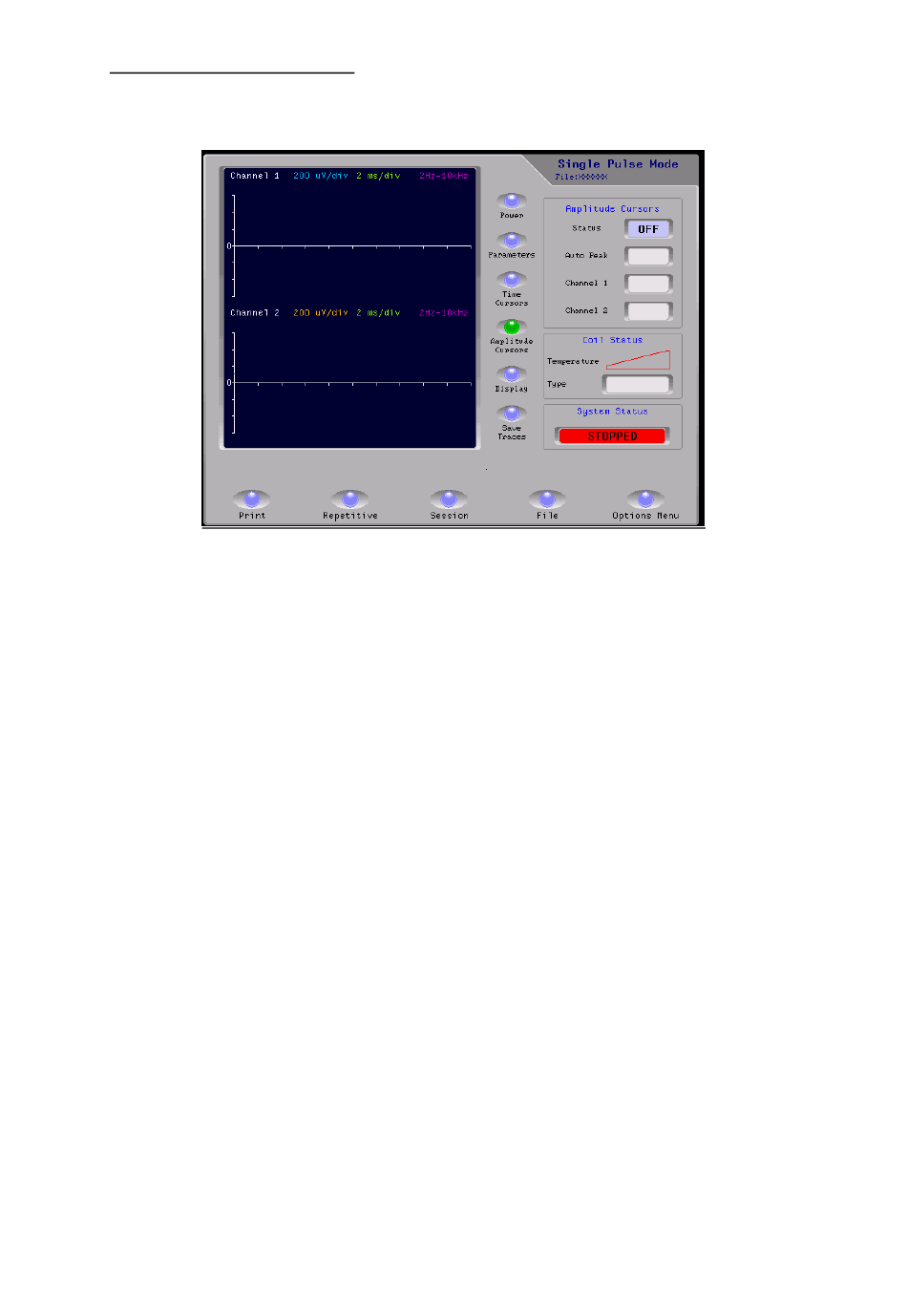

AMPLITUDE CURSORS PANEL
Press the Amplitude Cursors button (green when selected) to access the Amplitude Cursors
panel.
Status Select the Status window to turn the Amplitude Cursors on and off. The default
setting is OFF.
Auto Peak Select the Auto Peak window to turn auto peak on and off. The default value is
ON. With this option ON, each time a new set of MEP waveforms are displayed,
the cursors will automatically move to the peak values for each trace. With the
option OFF, the amplitude cursors will remain at their previous values. Amplitude
Cursors must be ON for this option to become available.
Channel 1 This window allows the Amplitude Cursor on Channel 1 to be moved, for
example to mark peaks. Amplitude Cursors must be ON for this option to become
available.
Channel 2 This window allows the Amplitude Cursor on Channel 2 to be moved, for
example to mark peaks. Amplitude Cursors must be ON for this option to become
available.
Note, in Repetitive Mode or Session Mode, the Amplitude Cursor positions set in Single Pulse Mode
will remain marked by the Amplitude Cursor on the trace.
