Magstim Rapid

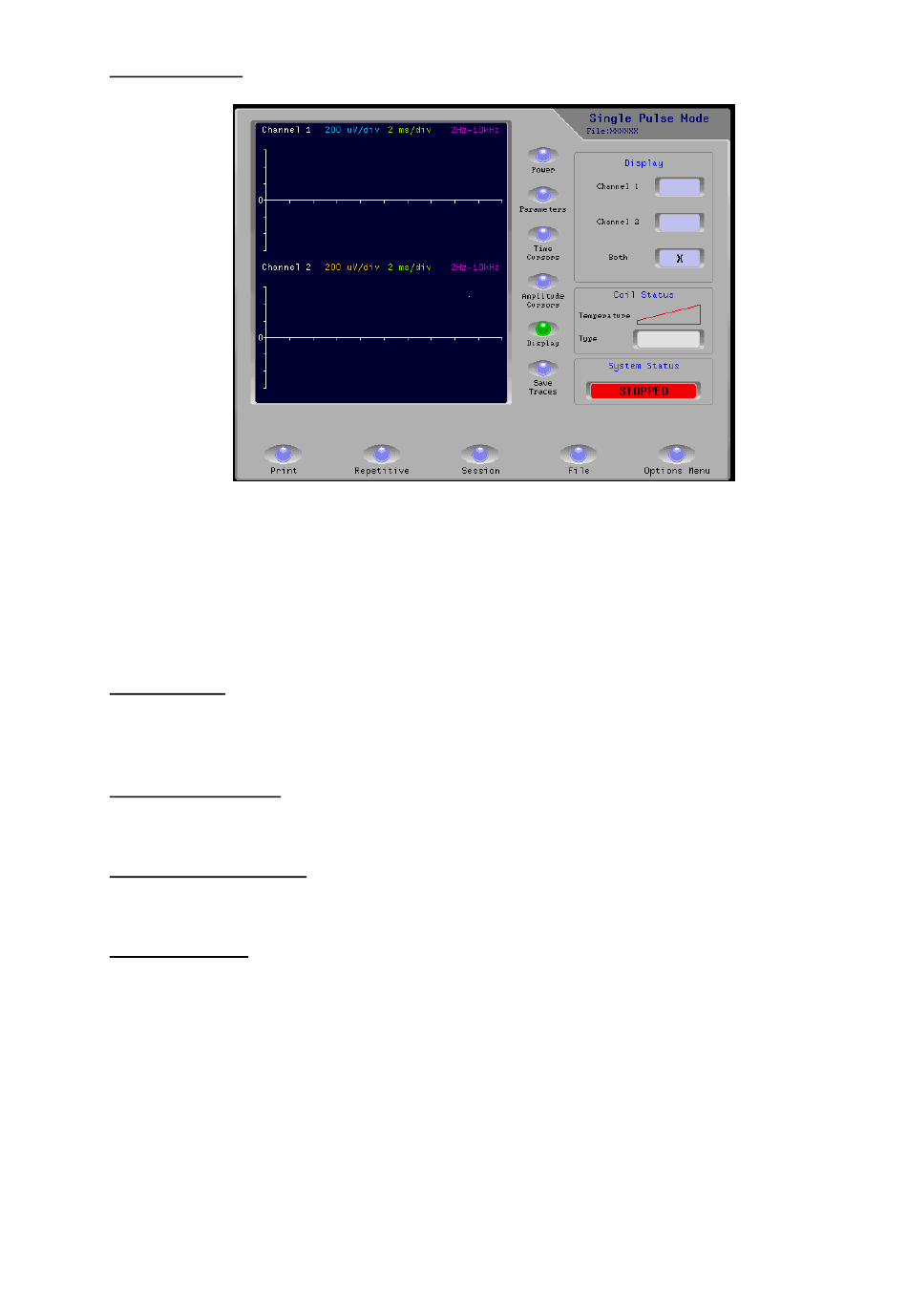

DISPLAY PANEL
Press the Display button (green when selected) to access the Display panel.
Channel 1. Select the Channel 1 window to show Channel 1 only in the trace window.
Channel 2. Select the Channel 2 window to show Channel 2 only in the trace window.
Both. Select the Both window to show both traces simultaneously in the trace window.
SAVE TRACES
Select Save Traces to save the current trace. If a file is already open the trace
will be saved to this file. Alternatively go to File Maintenance and save the
trace to a file (See section 6).
COIL STATUS PANEL
The Coil Status panel will show the temperature and type of coil.
SYSTEM STATUS PANEL
The System Status panel shows the system status.
TRACE WINDOW
The Trace window will be updated when a stimulation occurs. The maximum
update rate for the trace window is 4 times a second, depending on the amount of
information to be displayed.
Print For Print operations see Section 6.5.
Repetitive This takes the user to the Repetitive Setup Screen. (See Section 4.5)
Session This takes the user to the Session Setup screen (see Section 4.9)
File This takes the user to the File Maintenance screen (see Section 6.1).
Options Menu Selection of this option will return the user to the Options Menu screen.
