SECTION 6: DATA RETRIEVAL

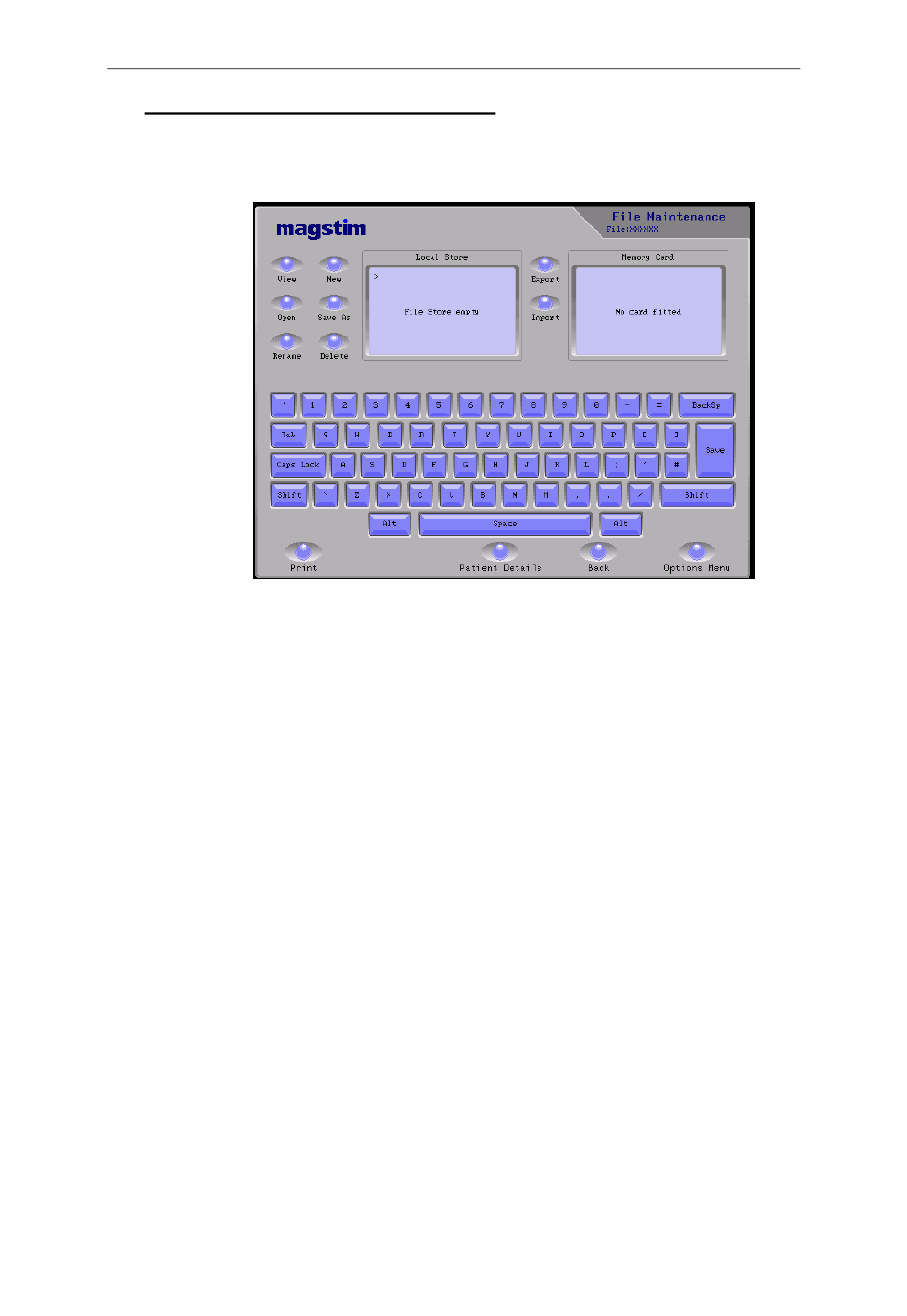

6.1 FILE MAINTENANCE WINDOW
The file maintenance window allows the user to enter a file name and store protocols. These may be
generic protocols which are chosen for a patient. The protocols may be stored internally, or may be
stored on a memory card. (See section 6.3)
Keyboard The keyboard is touch sensitive. A file name needs to be selected in order to edit
it. Select the Local Store screen and use the Rotary control knob to scroll between
files.
Selection of „View‟ reloads the data stored in the selected file located in the local
View
store window. The file name will be displayed in the top right hand corner of the
screen.
Selection of „New‟ allows the user to create a new file in the local store window.
New
The file name entered must be between 1 and 18 characters long, and different
from any other file name.
Selection of „Open‟ will reload the data stored in the selected file. Once the file is
Open
opened the „Open‟ button will change to „Close‟ to enable the file to be closed.
The file name will be displayed in the top right hand corner of the screen.
Rename Selection of this option will allow the user to enter a new name for a chosen File
Name. Use the keyboard to make changes to the file name and press save (on the
keyboard) to confirm.
Delete Selection of this option will allow the user to delete the selected file from the local
store window after a „Yes‟ confirmation.
Export Export allows the user to export the selected File name in the Local Store window
to the multi-media card. (See section 6.3)
Import Import transfers the selected file from the multimedia card, to the Local Store
window.
Print For Print operations See Section 6.5.
Patient Details Selection of this option will call up the Patient Details Screen.
Back Selection of this option returns the user to the previous screen.
Options Menu Selection of this option will return the user to the Options Menu Screen.
