ADS8332EVMV2-PDK Operation
6 ADS8332EVMV2-PDK Operation
The following instructions are a step-by-step guide to connecting the ADS8332EVMV2 to the computer and
evaluating the performance of the ADS8332:
1. Connect the ADS8332EVMV2 to the PHI. Install the two screws as indicated in
2. Use the USB cable provided to connect the PHI to the computer.
a. LED D5 on the PHI lights up, indicating that the PHI is powered up.
b. LEDs D1 and D2 on the PHI starts blinking to indicate that the PHI is booted up and communicating with
the PC. The resulting LED indicators are shown in

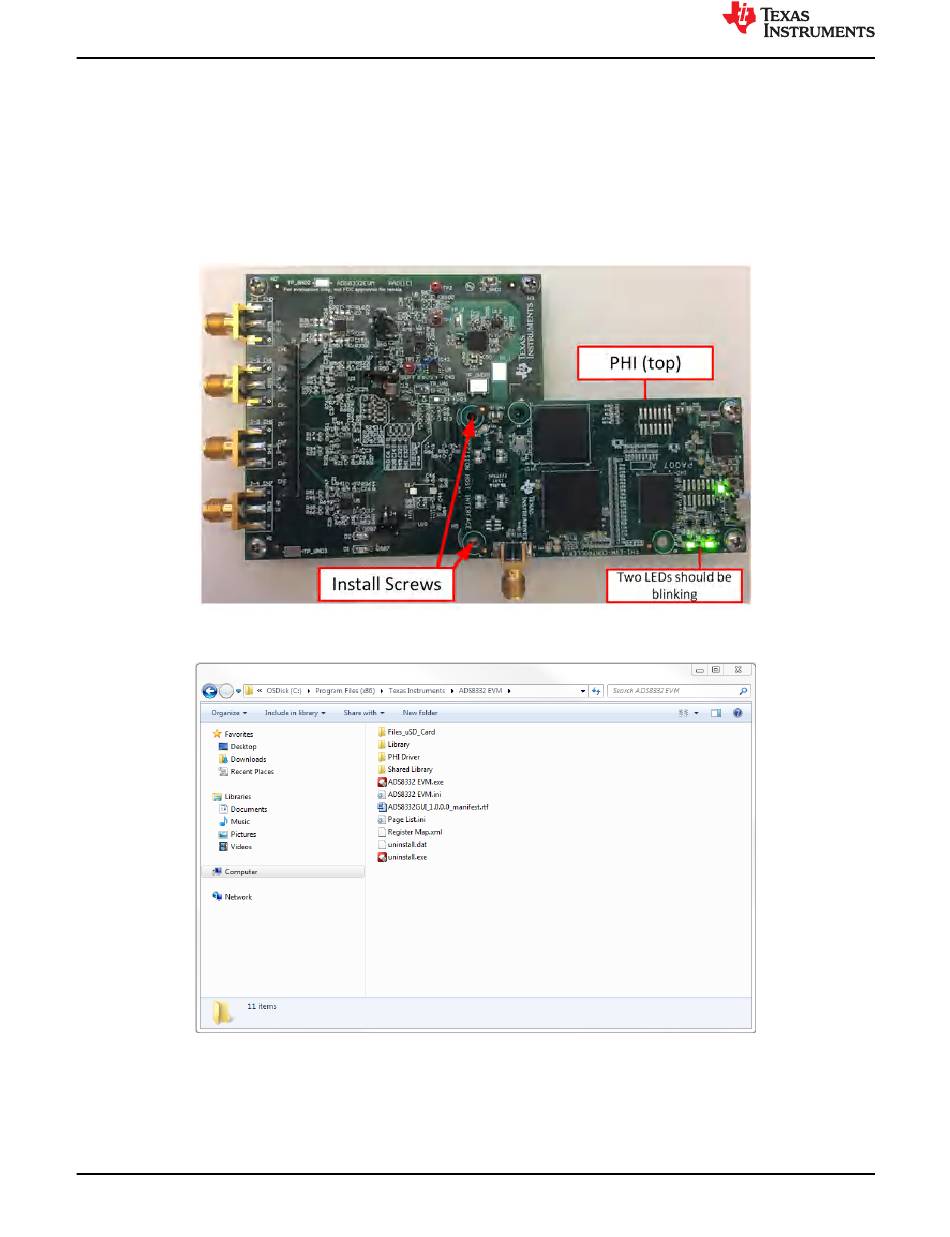

Figure 6-1. ADS8332EVMV2-PDK Hardware Setup and LED Indicators
3. Double click on the ADS8332 EVM.exe file to launch the EVM GUI, as shown in
14
ADS8332EVMV2-PDK Evaluation Module
Figure 6-2. Launch the ADS8332EVMV2 GUI Software
