7.2 PCB Layout

Figure 7-1 through Figure 7-6

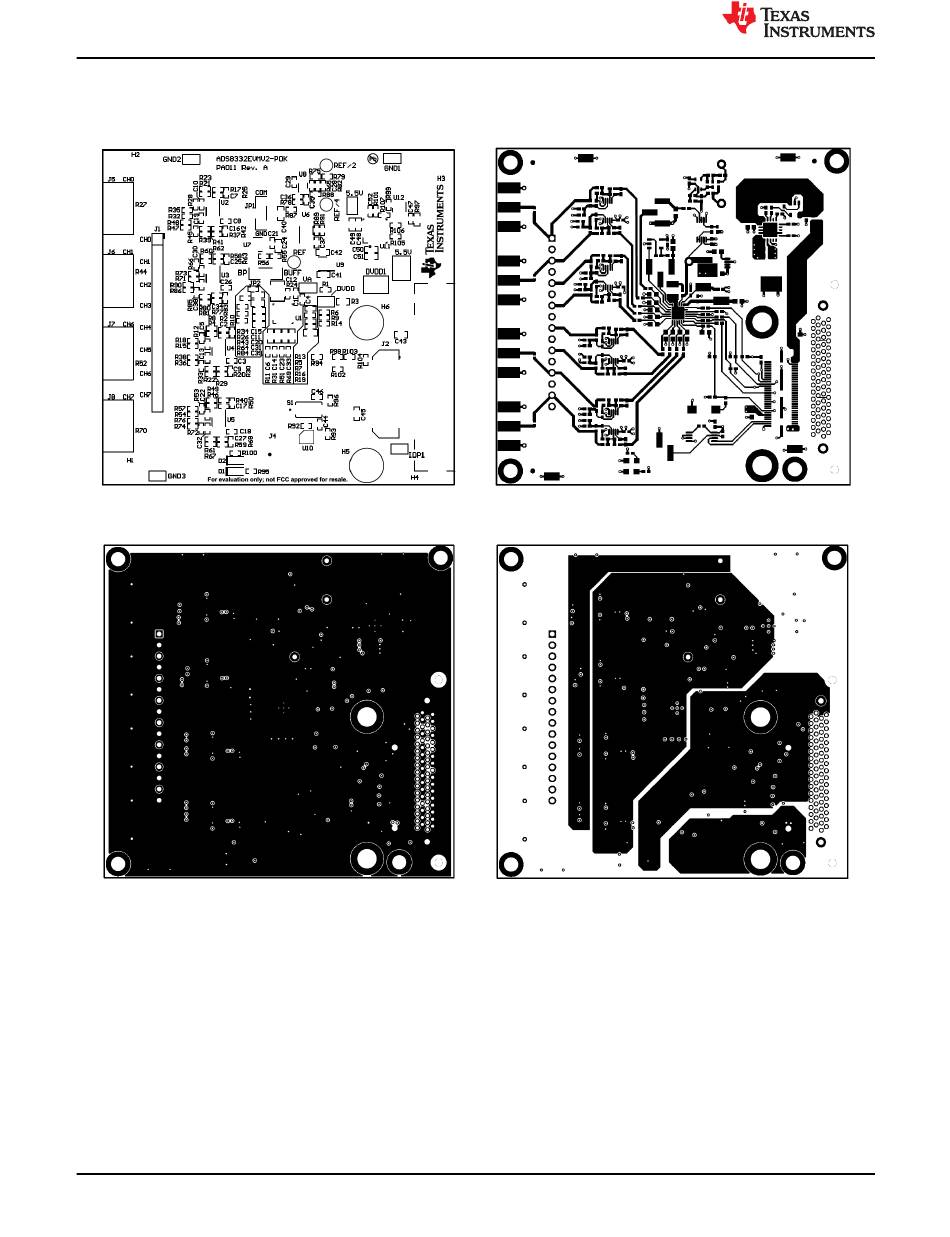

Figure 7-1. ADS8332EVMV2 PCB: Top Overlay

Figure 7-3. ADS8332EVMV2 PCB Layer 2: GND
24 ADS8332EVMV2-PDK Evaluation Module
illustrate the EVM PCB layout.
Plane
Copyright © 2023 Texas Instruments Incorporated

Figure 7-2. ADS8332EVMV2 PCB Layer 1: Top

Layer
Figure 7-4. ADS8332EVMV2 PCB Layer 3: Power
Planes
SBAU251B – JULY 2017 – REVISED FEBRUARY 2023
