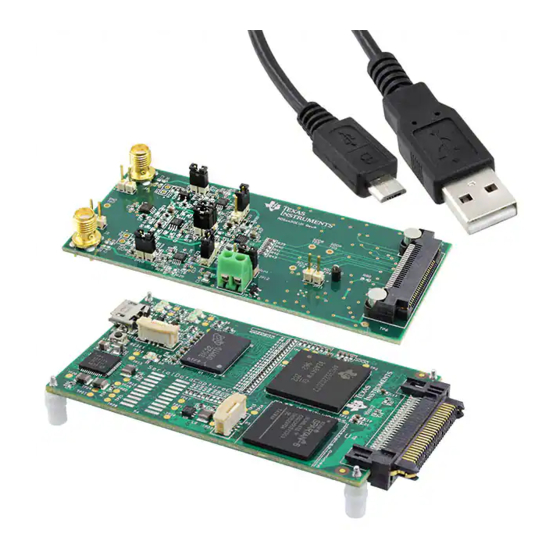

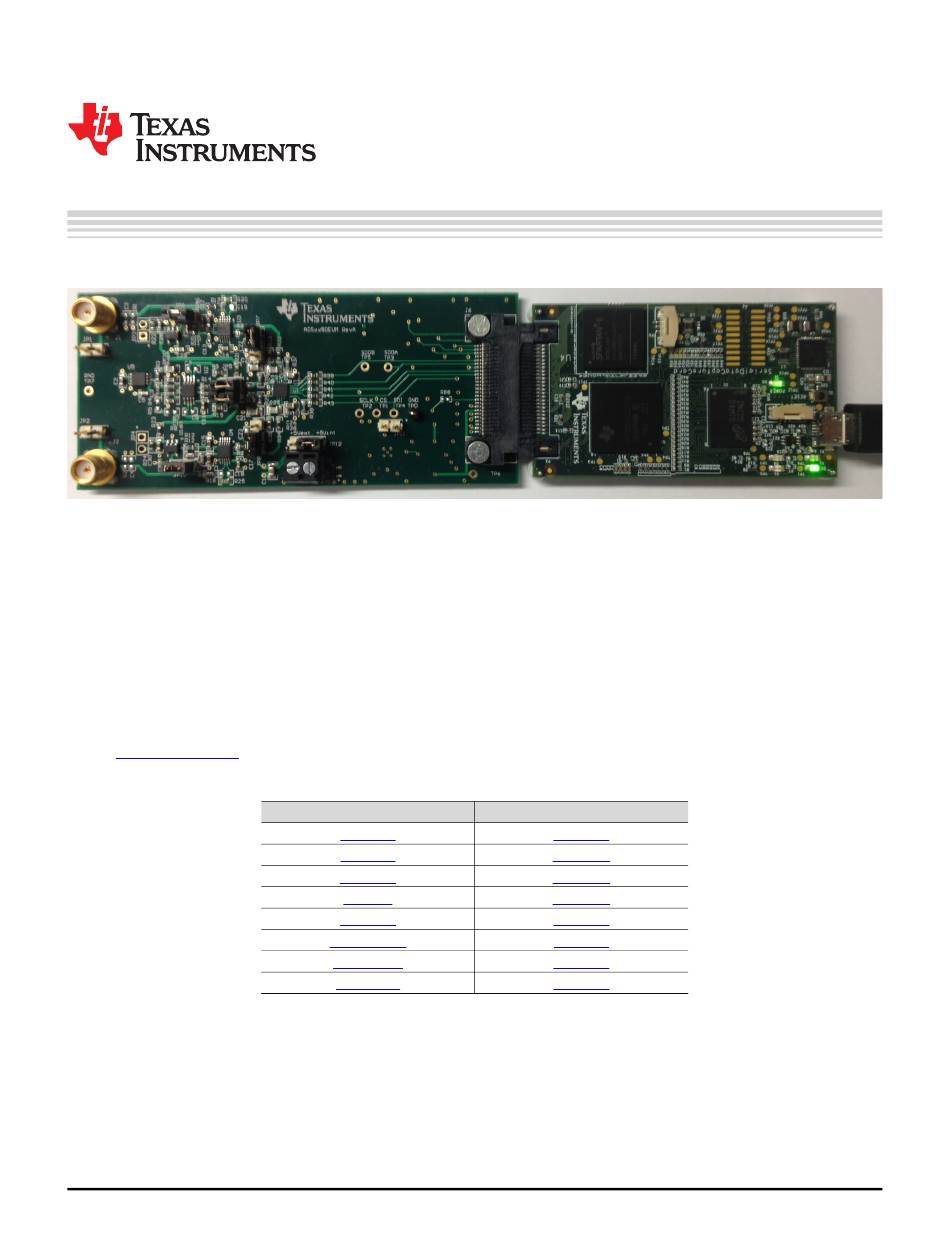

This user's guide describes the characteristics, operation and use of the ADS8350EVM performance

demonstration kit (PDK). This kit is an evaluation platform for the ADS8350, dual-channel, 16-bit,

simultaneous sampling, successive approximation register (SAR) analog-to-digital converter (ADC) that

supports pseudo-differential analog inputs. This EVM eases the evaluation of the ADS8350 device with

hardware and software for computer connectivity through a universal serial bus (USB). This user's guide

includes complete circuit descriptions, a schematic diagram, and a bill of materials.

Throughout this document, the terms demonstration kit, evaluation board, evaluation module are

synonymous with the ADS8350EVM-PDK.

The following related documents are available through the Texas Instruments web site at

http://www.ti.com.

Windows XP, Windows 7, Windows 8, Excel are registered trademarks of Microsoft Corporation.

SPI is a trademark of Motorola Inc.

C is a trademark of NXP Semiconductors.

All other trademarks are the property of their respective owners.

SBAU218A – April 2014 – Revised October 2014

Submit Documentation Feedback

ADS8350EVM-PDK

Need help?

Do you have a question about the ADS8350EVM-PDK and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments ADS8350EVM-PDK

Page 1 Throughout this document, the terms demonstration kit, evaluation board, evaluation module are synonymous with the ADS8350EVM-PDK. The following related documents are available through the Texas Instruments web site at http://www.ti.com. Related Documentation...
Page 2: Table Of Contents
JP1 and JP2: Analog Interface Connections ..................SMA Analog Interface Connections ......................Connector J6 Pinout ..................... Power-Supply Jumpers ....................Default Jumper Configuration ..................ADS8350EVM Bill of Materials ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 3: Overview
Overview The ADS8350EVM-PDK is a platform for evaluation of the ADS8350 analog-to-digital converter (ADC). The evaluation kit combines the ADS8350EVM board with a simple capture card controller board. The simple capture card controller board consists of a TI Sitara embedded microcontroller (AM3352) and a field programmable gate array (FPGA).
Page 4: Ads8350Evm Analog Interface Input Connections
AIN_A OPA836 in the inverting configuration. Channel B inverted input. The signal is routed through an AIN_B OPA836 in the inverting configuration. ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 5: Bipolar Input Signal Configuration
0.2 V 8200 pF OPA836 JP9 / JP10 (Open) +2.5 V 10 +2.5 V AINN Figure 3. Unipolar Input Signal Configuration SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 6: Refin_A And Refin_B Reference Connections
1 k 2.5 V from REF5025 0.22 0.22 1 µF 10 µF 10 µF Figure 4. REFIN_A and REFIN_B Reference Connections ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 7: Digital Interface
C bus to communicate with the onboard EEPROM that records the board name and assembly date. It is not used in any form by the ADS8350 converter. SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 8: Power Supplies
Power Supplies The analog portion of the ADS8350EVM-PDK requires a 5-V supply. The ADS8350EVM-PDK is configured at the factory using the onboard regulated analog 5-V supply (+VA); and an onboard 3.3-V digital supply. Alternatively, set the AVDD analog supply voltage by connecting an external power source through two-terminal connector J5.
Page 9: Ads8350Evm-Pdk Initial Setup
ADS8350EVM-PDK Initial Setup www.ti.com ADS8350EVM-PDK Initial Setup This section presents the steps required to set up the ADS8350EVM-PDK kit before operation. Default Jumper Settings A silkscreen plot detailing the default jumper settings is shown in Figure Table 5 explains the configuration for these jumpers.
Page 10 5.2.1 Verify the microSD Memory Card is Installed on the Simple Capture Card Controller Board The ADS8350EVM-PDK includes the microSD card(s) that contain the EVM software and simple capture card controller board firmware required for the EVM operation. NOTE: Ensure the microSD memory card that contains the software is installed in the microSD socket (P6) on the back of the simple capture card board.
Page 11: Bottom View Of Simple Capture Card Board With Microsd Memory Card Installed
In addition to the simple capture card firmware files (app and MLO files), the microSD cards contain the ADS8350EVM-PDK software installation files inside the ADS8350 EVM V#.#.# folder. <V#.#.#> refers to the installation software version number, and increments with software installer releases.
Page 12: Connecting Ads8350Evm Board To Simple Capture Card Controller Board
Verify Jumpers are in the Factory-Default Position and Connect the Hardware The ADS8350EVM-PDK includes both the ADS8350EVM and the simple capture card controller board; however, the devices are shipped unconnected. Follow these steps to verify that ADS8350EVM-PDK kit is configured and connected properly.
Page 13 Install the ADS8350EVM-PDK Software The ADS8350 EVM V#.#.# software must be installed on the PC. This software supports the ADS8350EVM-PDK. The user must have administrator privileges to install the EVM software. The following steps list the directions to install the software.
Page 14: Windows 7 Driver Installation Warning
Figure 13. Windows 7 Driver Installation Warning NOTE: Driver installation prompts do not appear if the simple capture card device driver is installed on your system previously. ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 15: Simple Capture Card Device Driver Installation
Step 2. A computer restart may be required to finish the software installation. If prompted, restart the PC to complete the installation. Figure 14. Simple Capture Card Device Driver Installation Figure 15. Simple Capture Card Device Driver Completion SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 16: Ads8350Evm-Pdk Kit Operation
Step 1. Make sure the EVM kit is configured and powered up as explained in Section Step 2. Start the ADS8350 EVM software. Go to Start → All Programs →Texas Instruments → ADS8350 EVM and run the software by right-clicking ADS8350 EVM and selecting Run as Administrator.
Page 17: Open The Ads8350Evm Settings Page
Therefore, jumpers JP5 and JP6 must be installed. Figure 18 shows the reference connections as described on the ADS8350EVM Settings page of the GUI. Figure 18. ADS8350EVM Settings Page SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 18: Bipolar Or Unipolar Signal Jumper Settings Description On The Gui
JP10 on the ADS8350EVM Settings page of the GUI. Figure 19. Bipolar or Unipolar Signal Jumper Settings Description on the GUI Capturing Data with the ADS8350EVM-PDK Access the Data Monitor page in the GUI to monitor data acquired by the ADS8350. This GUI page displays the acquired data versus time.
Page 19: Data Monitor Page
These SCLK frequencies correspond to data rates of 750 kSPS, 625 kSPS, and 506.2 kSPS respectively. Device Status— This panel shows the current clock frequency and data rate of the ADS8350. Figure 21. Data Monitor Page SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 20: Saving Data To A Text File
EVM, click on the Save Data button and specify the file path and file name of the data file, as shown in Figure Figure 22. Saving Data to a Text File ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 21: Fft Performance Analysis Page
FFT performance analysis display. The FFT calculated parameters are shown on the right side of the display. Figure 23. FFT Performance Analysis Page SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 22 The DC Leakage Bins field allows the number of frequency bins that are a result of the dc portion of the measurement to be excluded from the calculations. ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 23: Histogram Analysis Page
The Noise Free Bits column displays the effective bits of the converter when calculated using the peak- to-peak noise. Troubleshooting If the ADS8350EVM software stops responding while the ADS8350EVM-PDK is connected, unplug the USB cable from the EVM, unload the ADS8350EVM-PDK software, reconnect the ADS8350EVM-PDK to the PC, and reload the ADS8350EVM software.
Page 24: Open The Gui Settings Page
Figure 25 Figure Figure 25. Open the GUI Settings page Figure 26. Set Capture Mode to SDCC Interface While Using the EVM Hardware ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 25: Bill Of Materials, Pcb Layout, And Schematics
R21, R22, R23, R24 RES, 20.0k ohm, 1%, 0.1W, 0603 Vishay Dale CRCW060320K0FKEA R26, R27 RES, 1.00 ohm, 1%, 0.1W, 0603 Vishay Dale CRCW06031R00FKEA SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 26 Keystone 5001 TP9, TP10 Elerctronics TP1, TP2, TP3, Not Install Keystone Not Install TP4, TP5, TP6 Elerctronics BUMPON CYLINDRICAL .375X.135 BLK SJ61A8 ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 27: Ads8350Evm Pcb: Top Layer
ADS8350EVM PCBs. Figure 27. ADS8350EVM PCB: Top Layer Figure 28. ADS8350EVM PCB: Ground Layer SBAU218A – April 2014 – Revised October 2014 ADS8350EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 28: Ads8350Evm Pcb: Power Layer
Figure 29. ADS8350EVM PCB: Power Layer Figure 30. ADS8350EVM PCB: Bottom Layer Schematics The schematics for the ADS8350EVM are appended to the end of this user's guide. ADS8350EVM-PDK SBAU218A – April 2014 – Revised October 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 29 6: J7 is installed for ADS8350EVM rev B, added TP7, TP8, TP9, TP10 for ADS8350EVM rev B NOTE: Page numbers for previous revisions may differ from page numbers in the current version. SBAU218A – April 2014 – Revised October 2014 Revision History Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 30 Assembly Variant: Variant name not interpreted Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: Luis Chioye File: Main_ADS8350EVM_RevB.SchDoc...
Page 31 Assembly Variant: Variant name not interpreted Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: Connector_ADS8350EVM_RevB.SchDoc...
