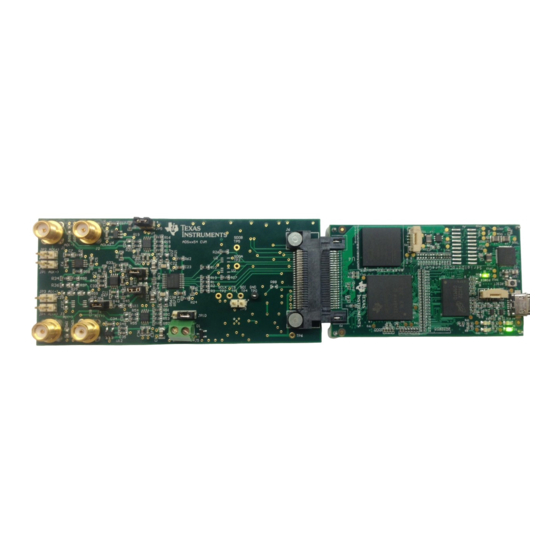

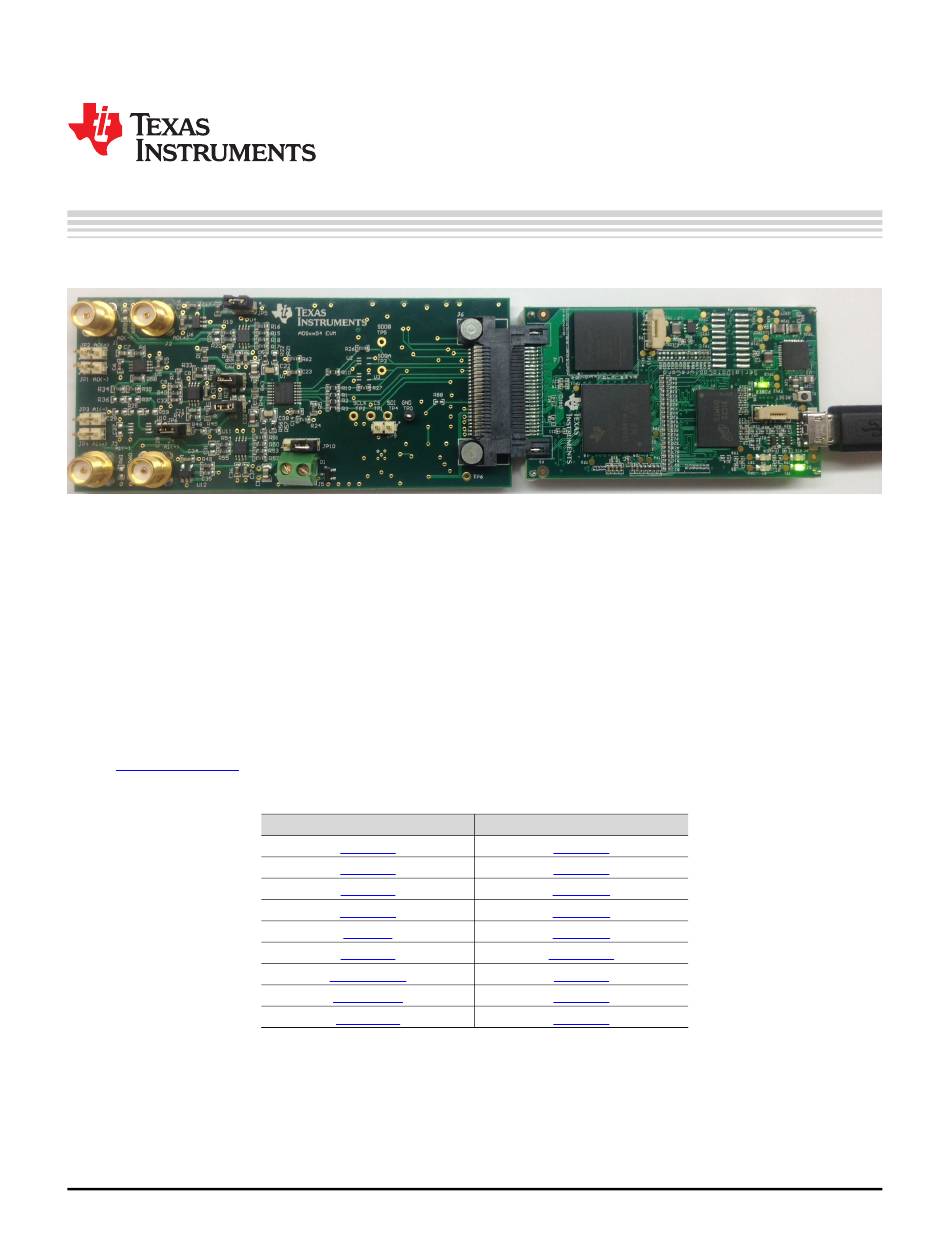

This user's guide describes the characteristics, operation and use of the ADS8354EVM and

ADS7854EVM performance demonstration kits (PDKs). These kits are evaluation platforms for the

ADS8354 and ADS7854, dual-channel, 16-bit and 14-bit, simultaneous sampling, successive

approximation register (SAR) analog-to-digital converters (ADCs) that support fully-differential analog

inputs. These EVMs ease the evaluation of the ADS8354 and ADS7854 devices with hardware and

software for computer connectivity through a universal serial bus (USB). This user's guide includes

complete circuit descriptions, schematic diagrams, and bills of material.

Throughout this document, the terms ADSxx54EVM-PDK, demonstration kit, evaluation board, evaluation

module are synonymous with the ADS8354EVM-PDK and ADS7854EVM-PDK.

The following related documents are available through the Texas Instruments web site at

http://www.ti.com.

Windows XP, Windows 7, Windows 8, Excel are registered trademarks of Microsoft Corporation.

SPI is a trademark of Motorola Inc.

C is a trademark of NXP Semiconductors.

All other trademarks are the property of their respective owners.

SBAU209 – April 2014

Submit Documentation Feedback

ADS8354EVM-PDK and ADS7854EVM-PDK

ADSxx54EVM-PDK

Need help?

Do you have a question about the ADS8354EVM-PDK and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments ADS8354EVM-PDK

Page 1 Throughout this document, the terms ADSxx54EVM-PDK, demonstration kit, evaluation board, evaluation module are synonymous with the ADS8354EVM-PDK and ADS7854EVM-PDK. The following related documents are available through the Texas Instruments web site at http://www.ti.com. Related Documentation...
Page 2: Table Of Contents
SMA Analog Interface Connections ..................Analog Input Range Jumper Settings ......................Connector J6 Pinout ..................... Power-Supply Jumpers ....................Default Jumper Configuration ................... ADSxx54EVM Bill of Materials ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 3: Overview
JP4 provide a convenient way to connect input signals. All analog inputs are buffered by THS4521 high-speed, fully differential amplifier in order to properly drive the ADSxx54 ADC inputs. SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 4: Adsxx54Evm Analog Interface Input Connections
A1(–) grounded by shunting JP3 terminal 1 and JP3 terminal 2 for single-ended signals. A1(+) CHB positive differential input or input for single-ended signals. ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 5: Ths4521 Fully-Differential Amplifier Driver
Å2.15 V AINN 4.65 V 2.5 V 1 k 0.35 V FSR_ADC = ±2 × V = ±5 V Figure 2. THS4521 Fully-Differential Amplifier Driver SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 6: Ref5025 2.5-V External Reference Source And Opa2350 Reference Driver
JP7 and JP8 before enabling the internal reference. JP7/JP8 REFIO-A/REFIO-B OPA2350 1k 2.5V from REF5025 0.22 1µF 0.22 10µF 10µF Figure 3. REF5025 2.5-V External Reference Source and OPA2350 Reference Driver ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 7: Digital Interface
C bus to communicate with the onboard EEPROM that records the board name and assembly date. It is not used in any form by the ADSxx54 converter. SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 8: Power Supplies
5.5 V or device damage may occur. The external AVDD supply must be in the range of 5.0 V to 5.5 V for proper ADSxx54EVM operation. ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 9: Adsxx54Evm-Pdk Initial Setup
Open: onboard AVDD set to +5 V; closed: onboard AVDD set to +5.2 V Short 2-3 selects onboard regulated AVDD supply; short 1-2 selects external JP10 Short 2-3 AVDD through J1 SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 10: Bottom View Of Sdcc Board With Microsd Memory Card Installed
ADSxx54EVM-PDK software installation files inside the ADS835x EVM V#.#.# folder. <V#.#.#> refers to the installation software version number, and increments with software installer releases. ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 11: Connecting Adsxx54Evm Board To Sdcc Controller Board
Figure 7 shows the location of the LED indicators in the SDCC controller board. Figure 7. LED Indicators on the SDCC Board SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 12: Welcome Screen And Destination Directory Screens
6. One or more software license agreements appear. Select I Accept the License Agreement and click Next. 7. The Start Installation screen appears. Click Next. Figure 9. License Agreement and Start Installation Screens ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 13: Progress Bar And Installation Complete Screens
Figure 11. Windows 7 Driver Installation Warning NOTE: Driver installation prompts do not appear if the SDCC device driver has been installed on your system previously. SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 14: Sdcc Device Driver Installation
Step 2. A computer restart may be required to finish the software installation. If prompted, restart the PC to complete the installation. Figure 12. SDCC Device Driver Installation Figure 13. SDCC Device Driver Completion ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 15: Adsxx54Evm-Pdk Kit Operation
Step 1. Make sure the EVM kit is configured and powered up as explained in Section Step 2. Start the ADS835x EVM software. Go to Start → All Programs →Texas Instruments → ADS835x EVM and click ADS835x EVM to run the software.
Page 16: Open The Adsxx54Evm Settings Page
ADSxx54 device internal reference. The GUI displays the appropriate reference jumper settings, as shown in Figure Figure 16. Selecting the External Onboard Reference or the ADSxx54 Internal Dual Reference ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 17: Programming The Refdac Registers In The Adsxx54Evm
. The GUI displays the appropriate JP5 and JP6 jumper settings, as shown in Figure 18 Figure 18. Selecting ±1 × V Range or ±2 × V Range SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 18: Device Registers Page
GUI screen; a menu with different GUI pages appear. Click on the Data Monitor option in the menu as shown in Figure 20 Figure 20. Open the Data Monitor page on the GUI ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 19: Data Monitor Page
By configuring the SCLK frequency, the data rate of the ADSxx54 is configured. The ADS8354EVM-PDK software supports SCLK frequencies of 24 MHz, 20 MHz, and 16.2 MHz. These SCLK frequencies correspond to data rates of 705.8 kSPS, 588 kSPS, and 476.5 kSPS, respectively.
Page 20: Saving Data To A Text File
EVM, click on the Save Data button and specify the file path and file name of the data file, as shown in Figure Figure 22. Saving Data to a Text File ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 21: Fft Performance Analysis Page
FFT performance analysis display. The FFT calculated parameters are shown on the right side of the display. Figure 23. FFT Performance Analysis Page SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 22 The DC Leakage Bins field allows the number of frequency bins that are a result of the dc portion of the measurement to be excluded from the calculations. ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 23: Histogram Analysis Page
If the EVM hardware is not detected, the GUI defaults to the Capture Mode: Software Debug mode of operation using a preloaded captured data file for demonstration purposes. SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 24: Open The Gui Settings Page
SDCC Interface option on the Capture Mode drop-down menu, as shown in Figure 25 Figure Figure 25. Open the GUI Settings page Figure 26. Set Capture Mode to SDCC Interface While Using the EVM Hardware ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 25: Bill Of Materials, Pcb Layout, And Schematics
R21, R22, R56, R57 RES, 10.0 ohm, 1%, 0.1W, 06033 Vishay Dale CRCW060310R0FKEA 'R70, R71, R72, RES, 10k ohm, 5%, 0.063W, 0402 Vishay Dale CRCW040210K0JNED R73, R74, R75, R76 SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 26 TP1, TP2, TP3, Not Install: TEST POINT PC MINI .040"D Keystone Not Install: 5001 TP4, TP5, TP6 BLACK Electronics BUMPON CYLINDRICAL .375X.135 BLK SJ61A8 ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 27: Adsxx54Evm Pcb: Top Layer
NOTE: Board layouts are not to scale. These figures are intended to show how the board is laid out; they are not intended to be used for manufacturing ADSxx54EVM PCBs. Figure 27. ADSxx54EVM PCB: Top Layer Figure 28. ADSxx54EVM PCB: Ground Layer SBAU209 – April 2014 ADS8354EVM-PDK and ADS7854EVM-PDK Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 28: Adsxx54Evm Pcb: Power Layer
Figure 29. ADSxx54EVM PCB: Power Layer Figure 30. ADSxx54EVM PCB: Bottom Layer Schematics The schematics for the ADSxx54EVM are appended to the end of this user's guide. ADS8354EVM-PDK and ADS7854EVM-PDK SBAU209 – April 2014 Submit Documentation Feedback Copyright © 2014, Texas Instruments Incorporated...
Page 29 Assembly Variant: Variant name not interpreted Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: Luis Chioye File: Main_ADS8354EVM_RevB.SchDoc...
Page 30 Assembly Variant: Variant name not interpreted Sheet: warrant that this design will meet the specifications, will be suitable for your application or fit for any particular purpose, or will operate in an implementation. Texas Instruments and/or its Drawn By: File: Connector_ADS8354EVM_RevB.SchDoc...
